Pattern Select Switch Power Mode Circuit: Wiring Diagram

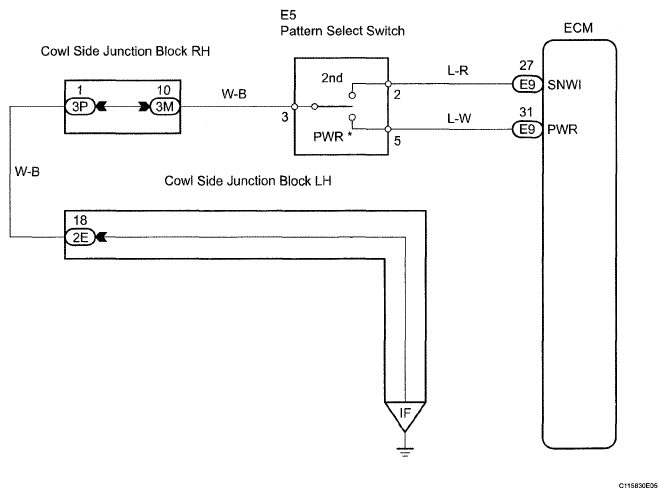

Fig 1: Pattern Select Switch Power Mode - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: Pattern select switch (PWR mode switch)

When the PWR mode switch is pushed, the switch contact is made and the PWR mode is selected.

To cancel the PWR mode, push the PWR mode switch once again.
