Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL

1. DRAIN ENGINE COOLANT
2. REMOVE V-BANK COVER SUB-ASSEMBLY
3. REMOVE NO. 2 AIR CLEANER INLET
4. REMOVE NO. 1 AIR CLEANER INLET
5. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
6. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

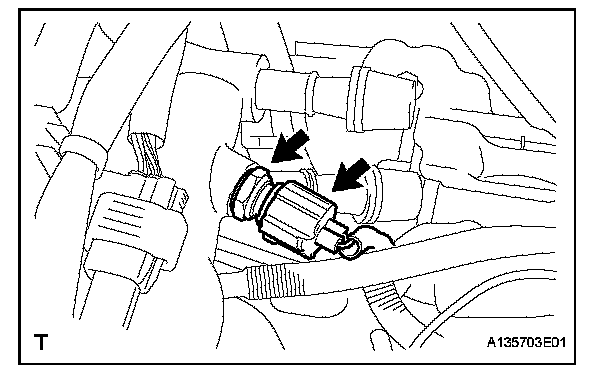

7. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
a. Remove the engine coolant temperature sensor connector.




b. Remove the engine coolant temperature sensor.

INSTALLATION

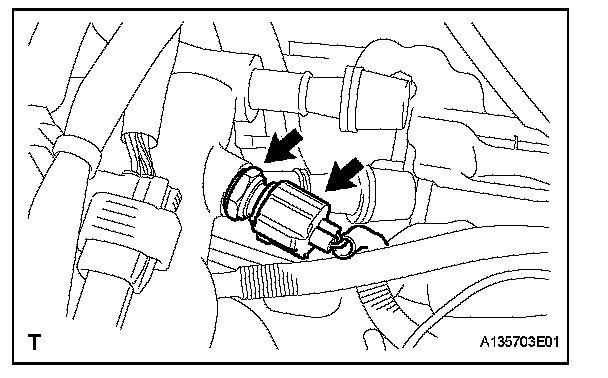

1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR




a. Install the engine coolant temperature sensor.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

b. Connect the engine coolant temperature sensor connector.

2. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
4. INSTALL NO. 1 AIR CLEANER INLET
5. INSTALL NO. 2 AIR CLEANER INLET
6. ADD ENGINE COOLANT
7. CHECK FOR ENGINE COOLANT LEAKS
8. INSTALL V-BANK COVER SUB-ASSEMBLY
