Parts Location

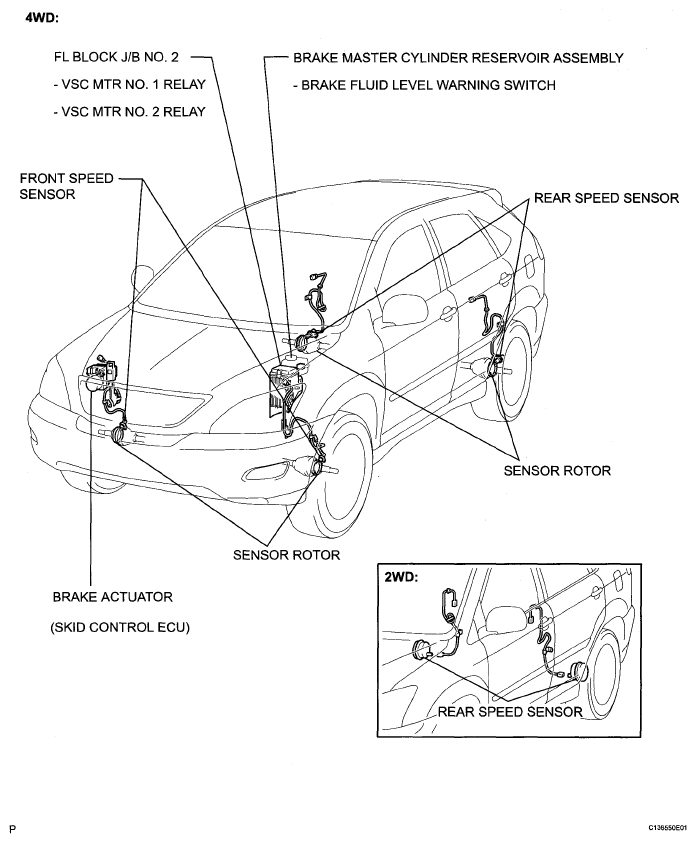

Fig 1: Identifying Vehicle Stability Control System Replacement Components (1 Of 2)
G05272649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

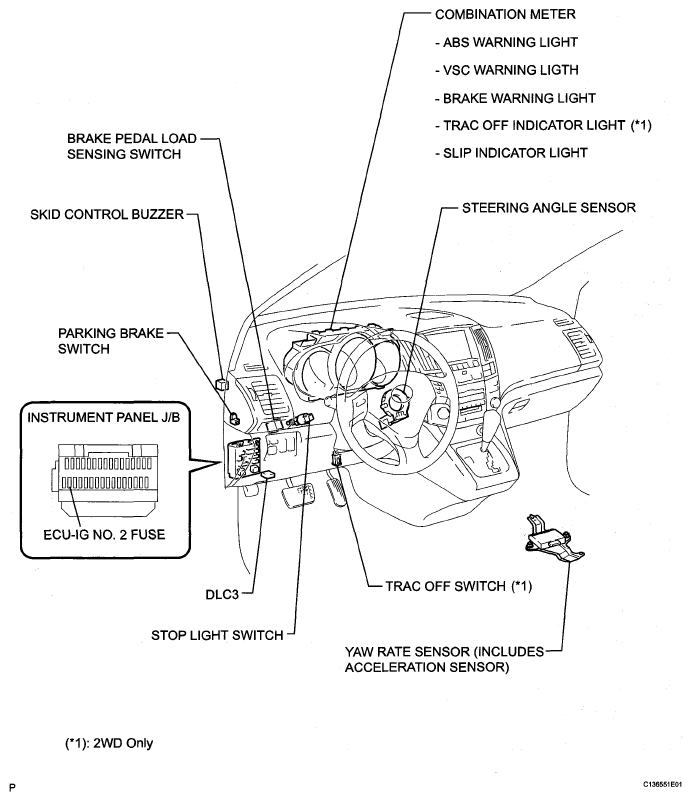

Fig 2: Identifying Vehicle Stability Control System Replacement Components (2 Of 2)
G05272650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
