Inspection Procedure

NOTE: When replacing the brake actuator assembly, perform zero point calibration (See CALIBRATION ).

CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - TS of DLC3)

Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION TABLE

Tester Connection	Condition	Specified Condition
S1 - 24 (TS) - D1-12 (TS)	Always	Below 1 Ω
D1-12 (TS) - Body ground	Always	10 kΩ or higher

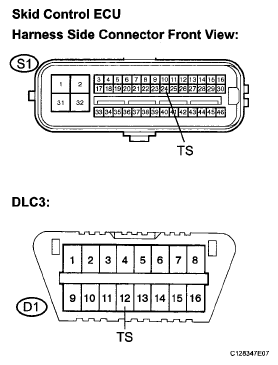

Fig 1: Identifying Skid Control ECU & DLC3 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SKID CONTROL ECU - TS OF DLC3)

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION TABLE

Tester Connection	Condition	Specified Condition
D1-4 (CG) - Body ground	Always	Below 1 Ω

Fig 2: Identifying DLC3 Connector Terminal

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (CG OF DLC3 - BODY GROUND)

OK: REPLACE BRAKE ACTUATOR ASSEMBLY (See REMOVAL )
