Audio System except MARK LEVINSON: Notes

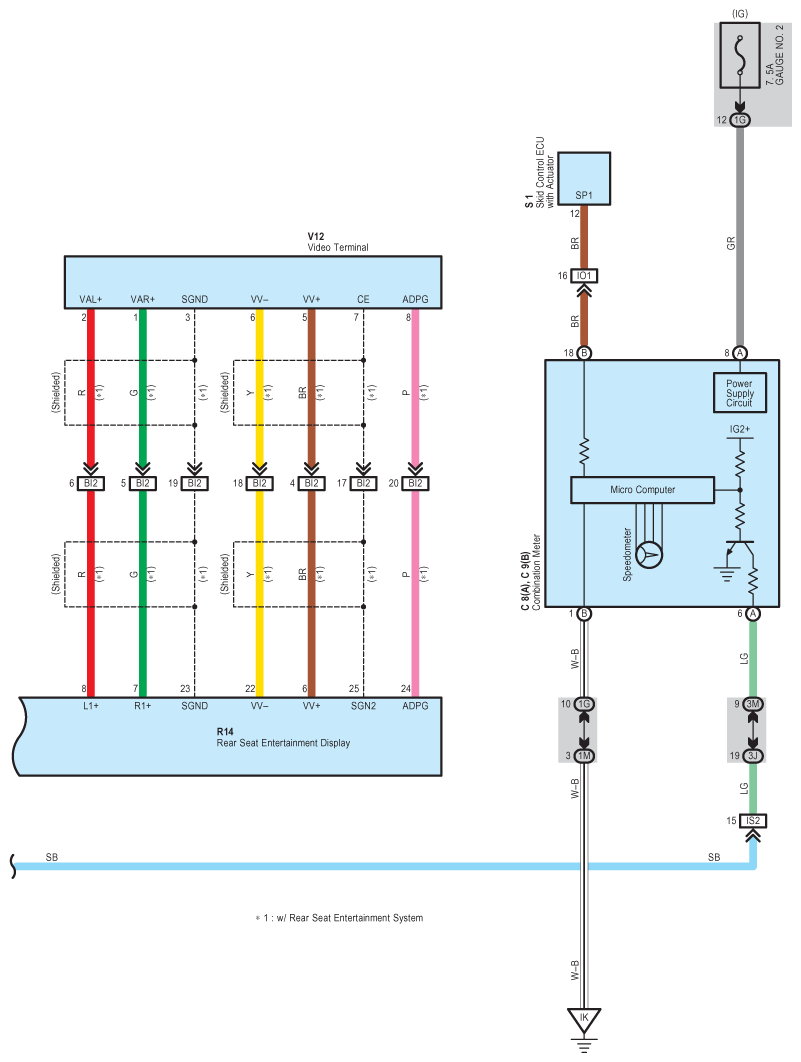

Fig 1: Audio System Except Mark Levinson - Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

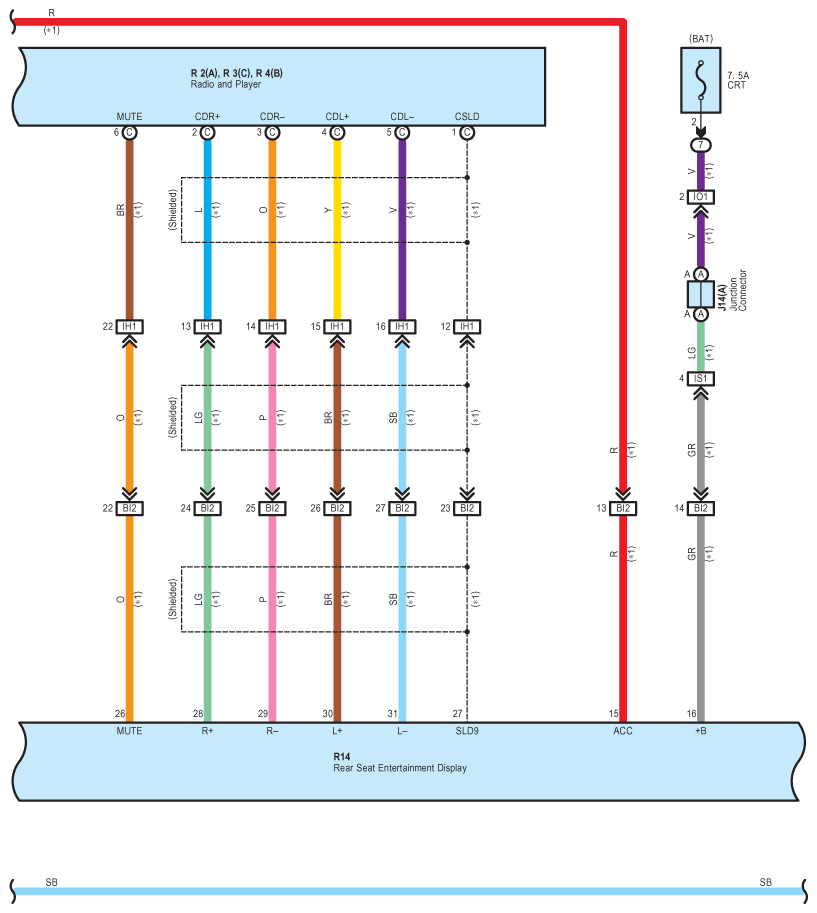

Fig 2: Audio System Except Mark Levinson - Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

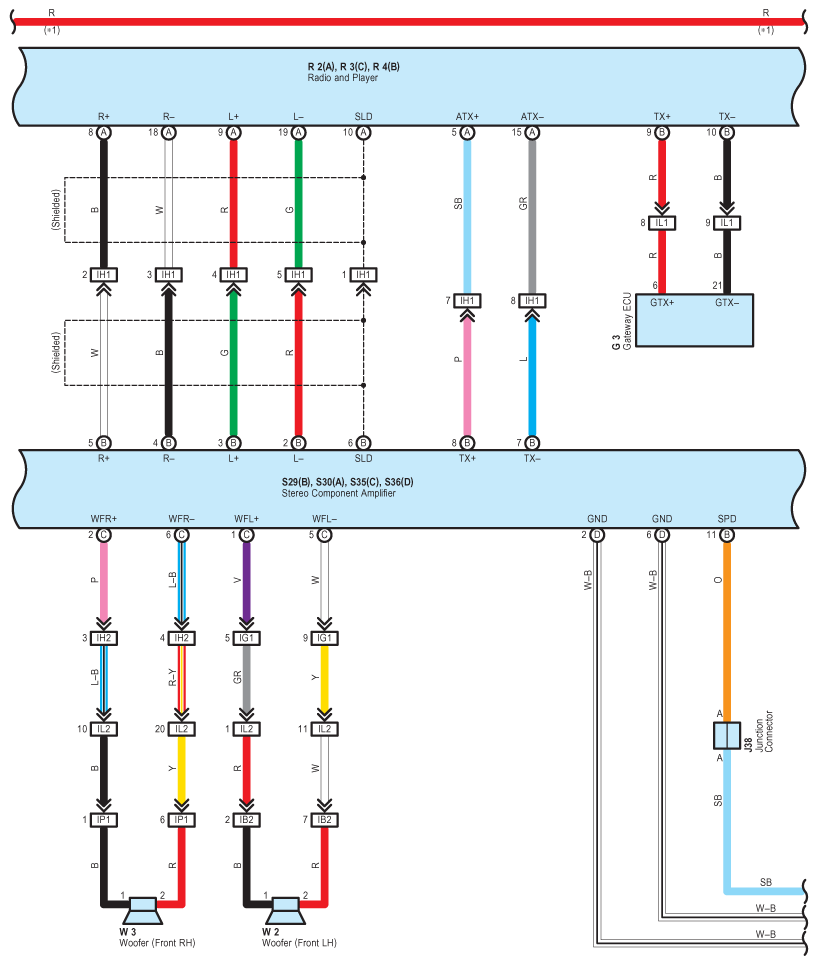

Fig 3: Audio System Except Mark Levinson - Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

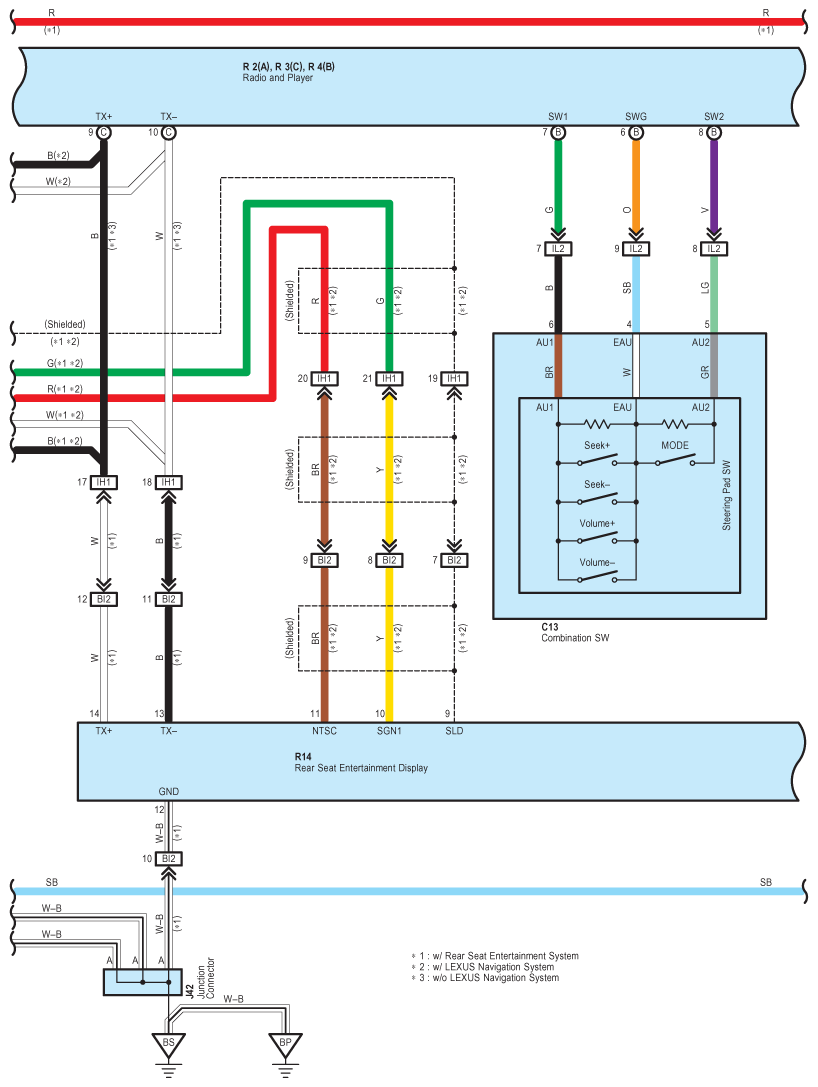

Fig 4: Audio System Except Mark Levinson - Wiring Diagram (4 Of 6)

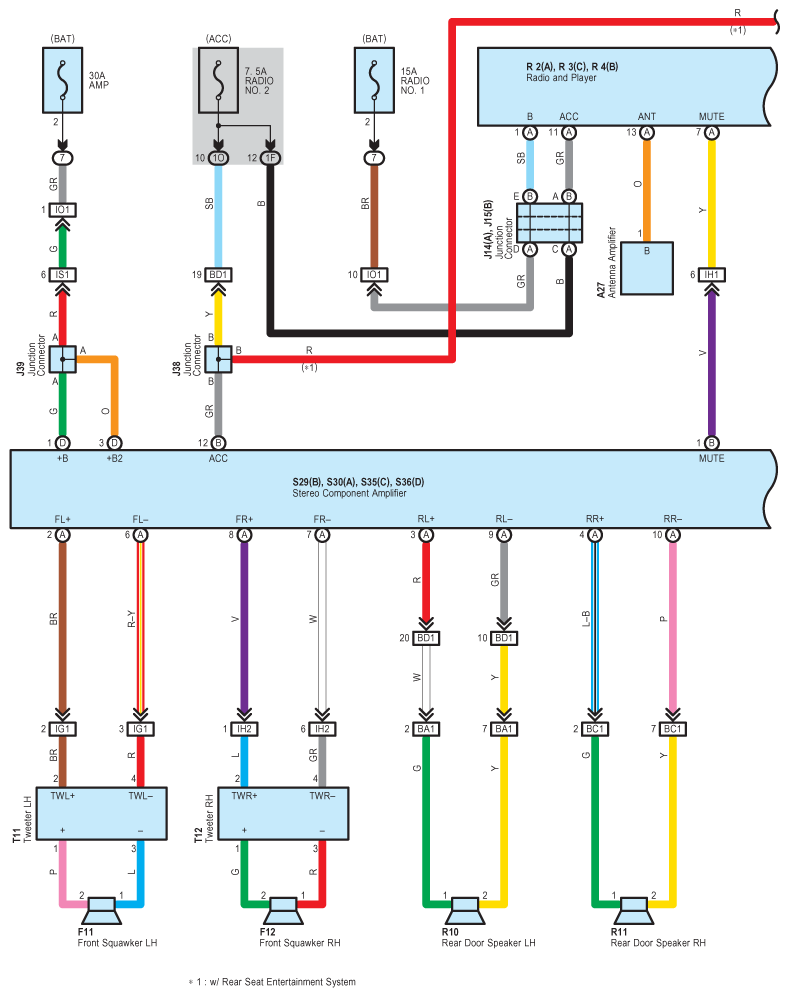

Fig 5: Audio System Except Mark Levinson - Wiring Diagram (5 Of 6)

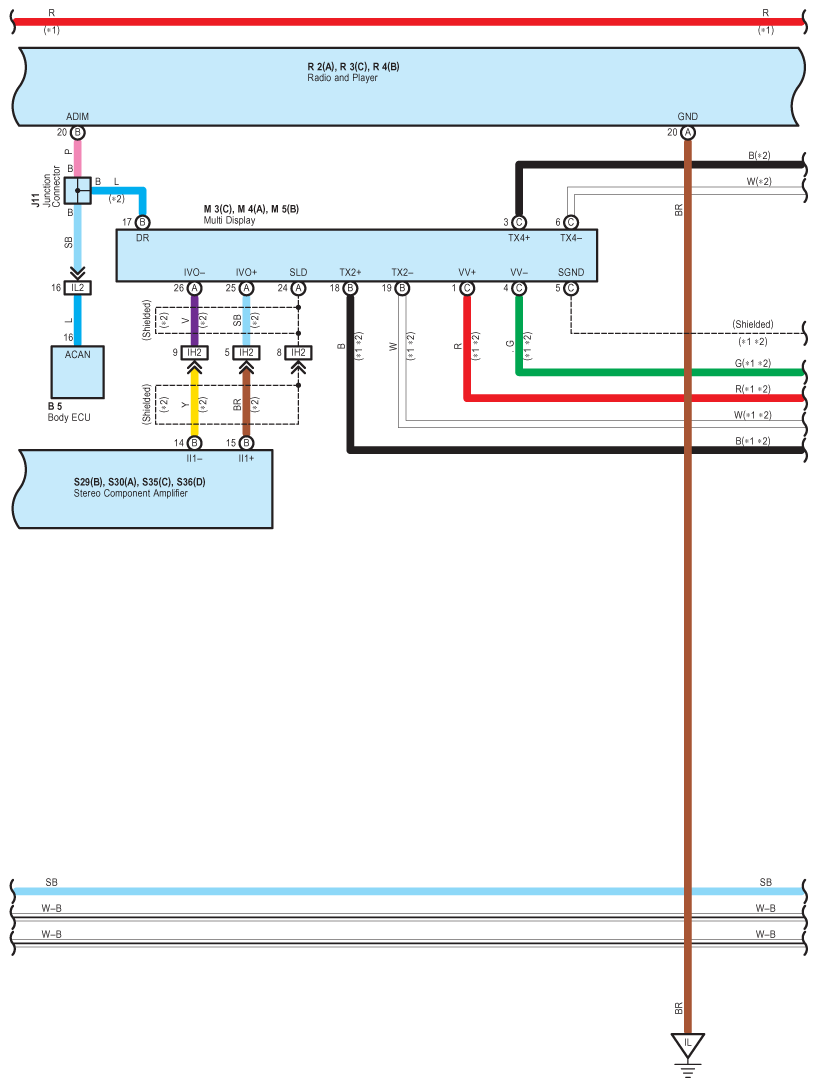

Fig 6: Audio System Except Mark Levinson - Wiring Diagram (6 Of 6)
