Multiplex Communication System - BEAN: Notes

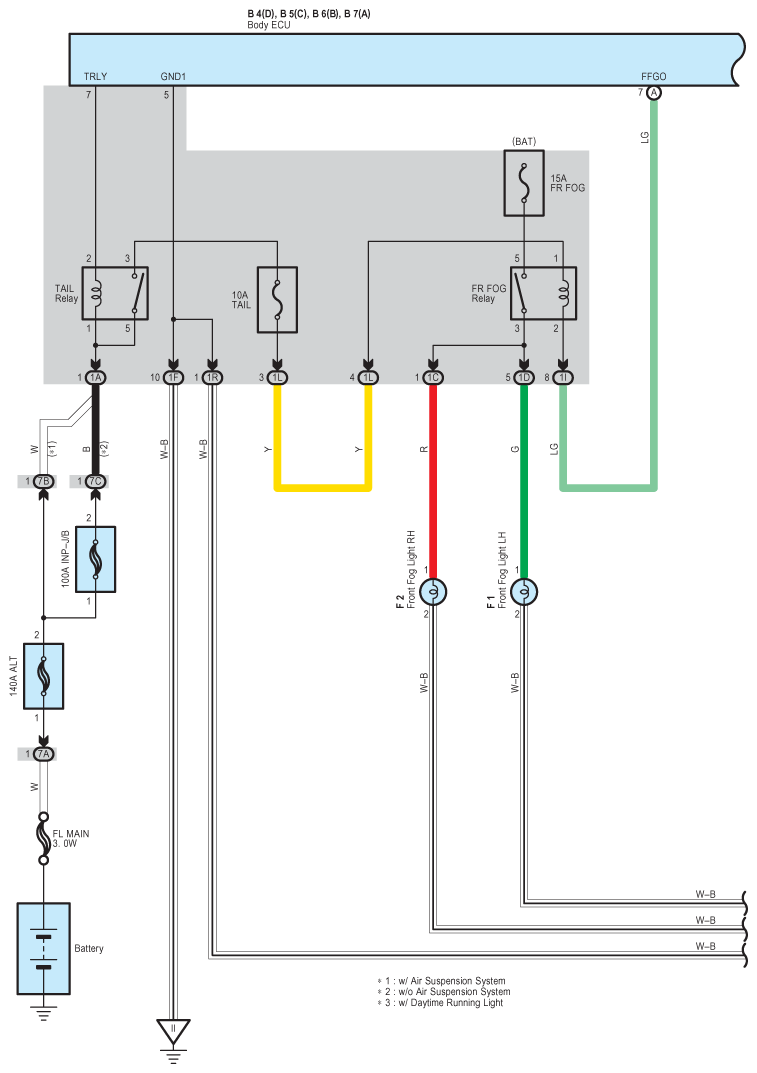

Fig 1: Multiplex Communication System - BEAN - Wiring Diagram (1 Of 25)

G08921941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

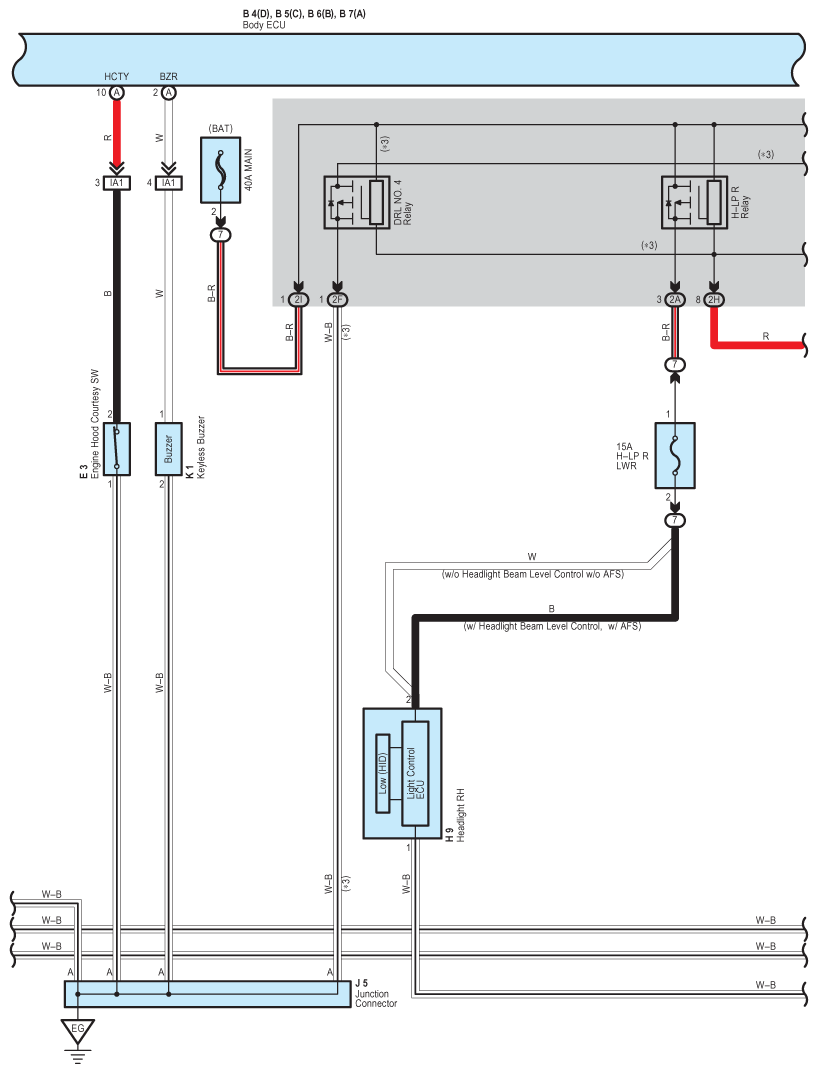

Fig 2: Multiplex Communication System - BEAN - Wiring Diagram (2 Of 25)

G08921942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

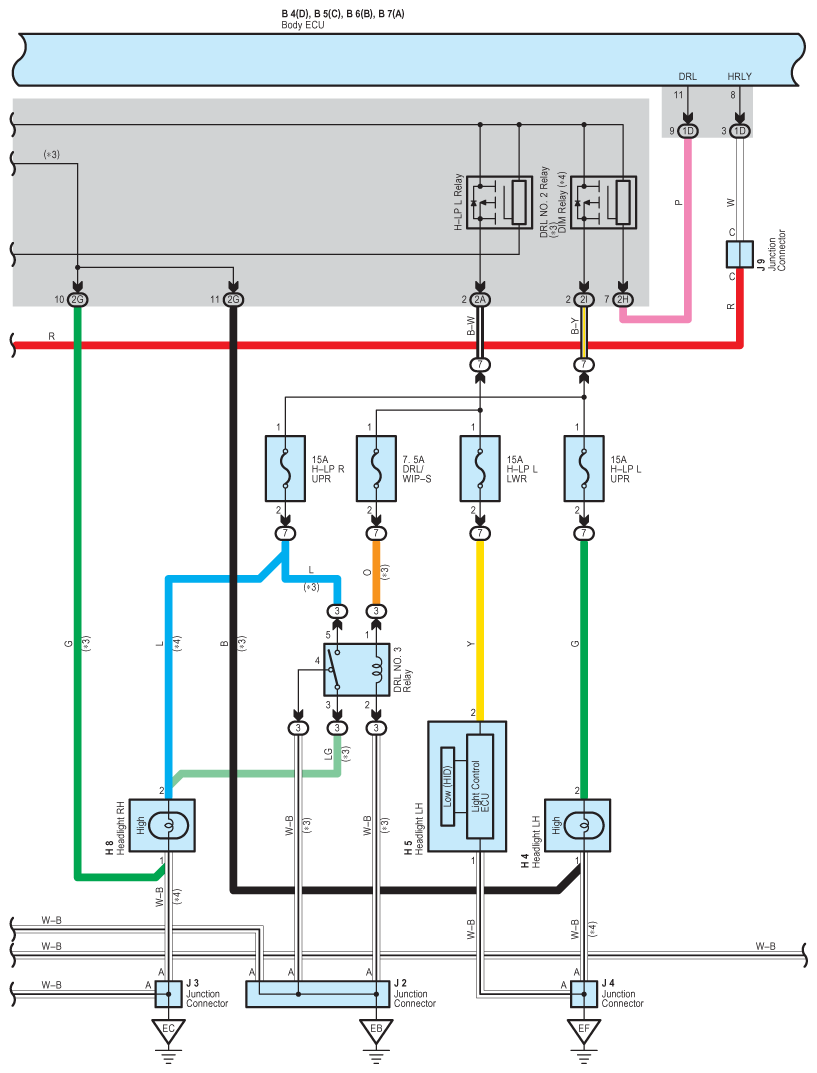

Fig 3: Multiplex Communication System - BEAN - Wiring Diagram (3 Of 25)

G08921943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

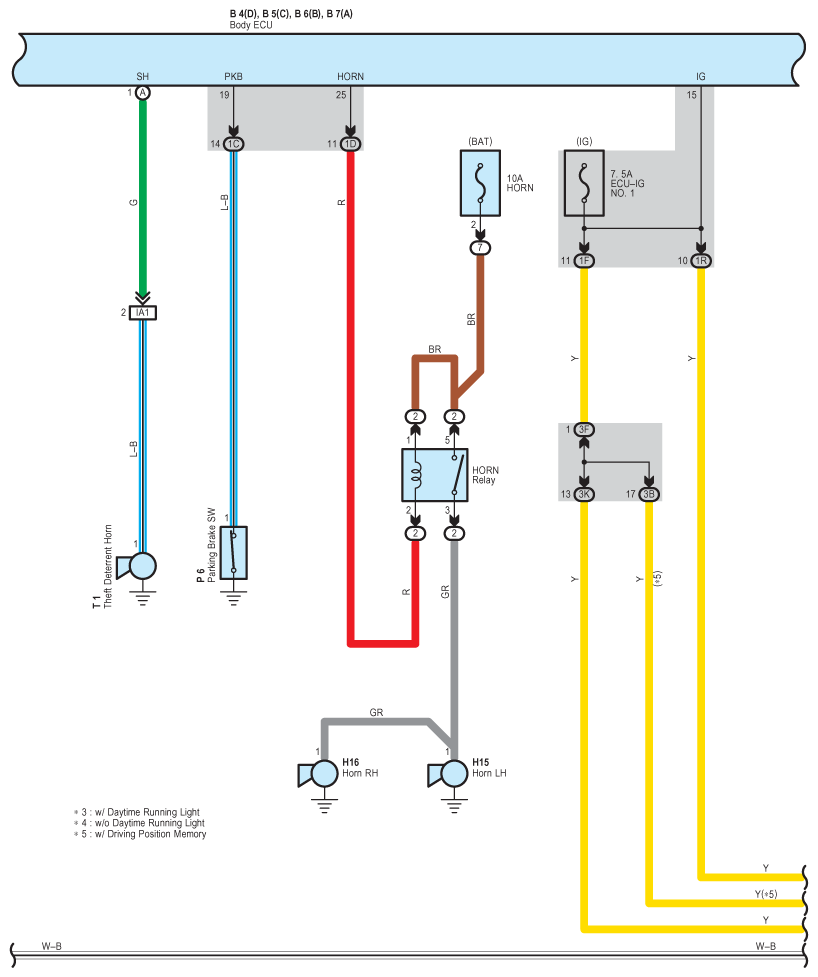

Fig 4: Multiplex Communication System - BEAN - Wiring Diagram (4 Of 25)

G08921944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

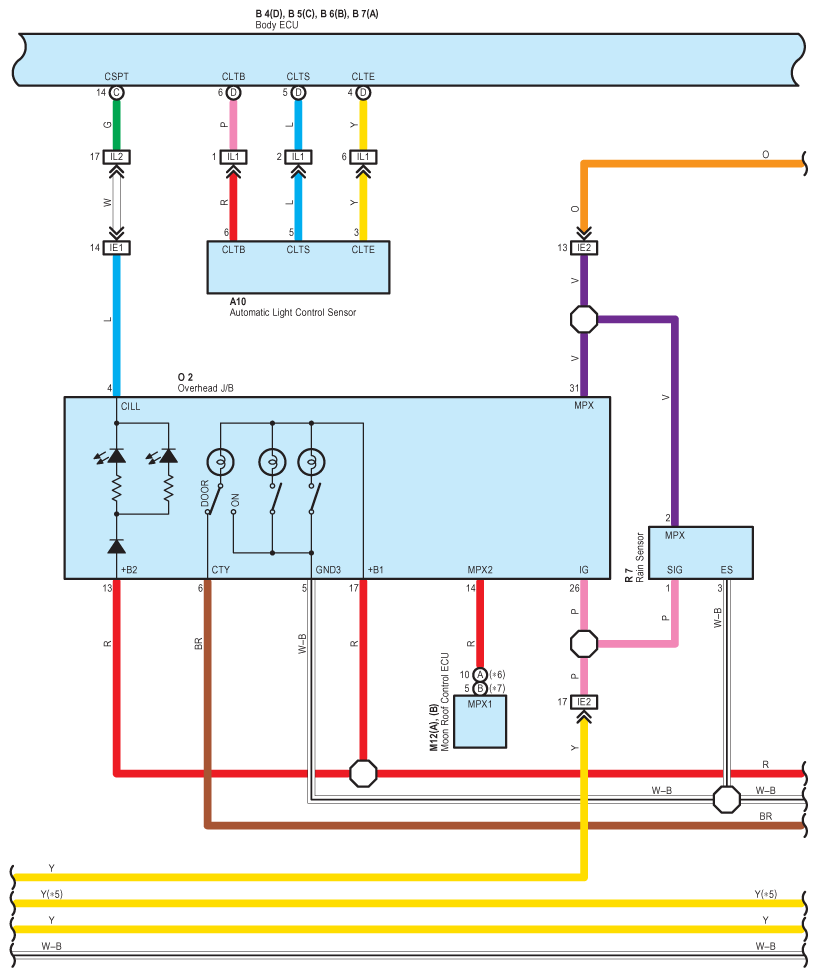

Fig 5: Multiplex Communication System - BEAN - Wiring Diagram (5 Of 25)

G08921945

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

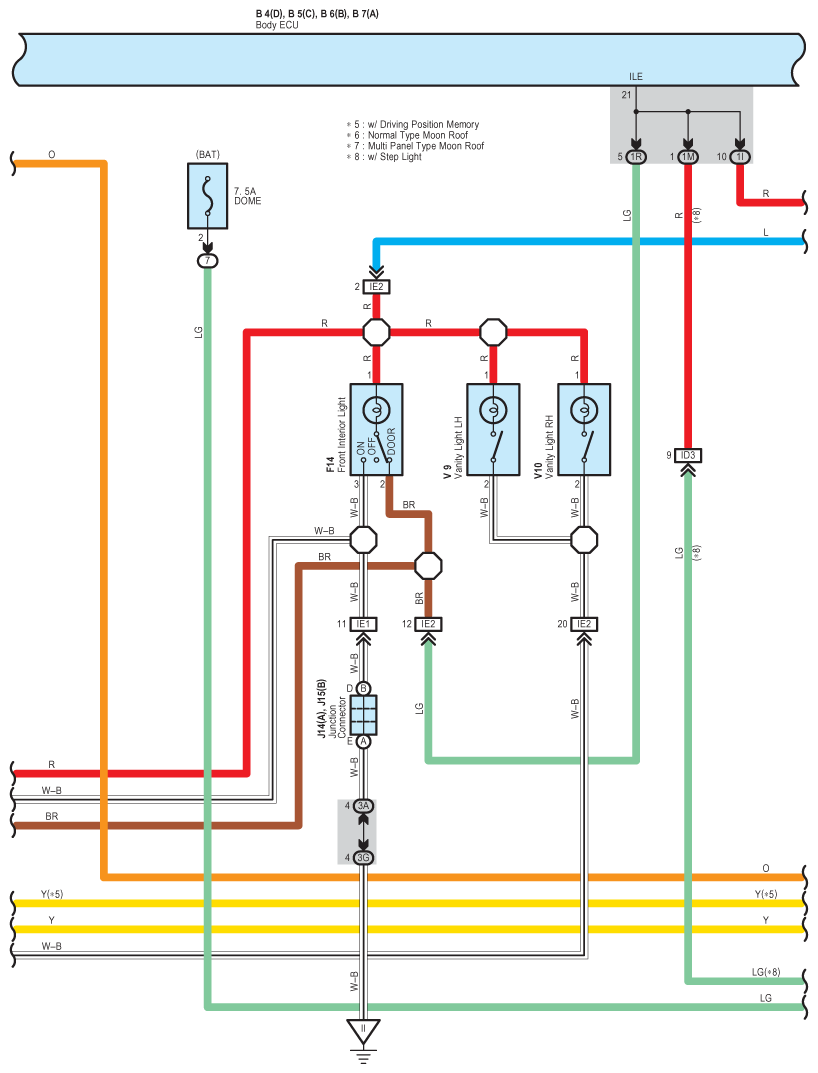

Fig 6: Multiplex Communication System - BEAN - Wiring Diagram (6 Of 25)

G08921946

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

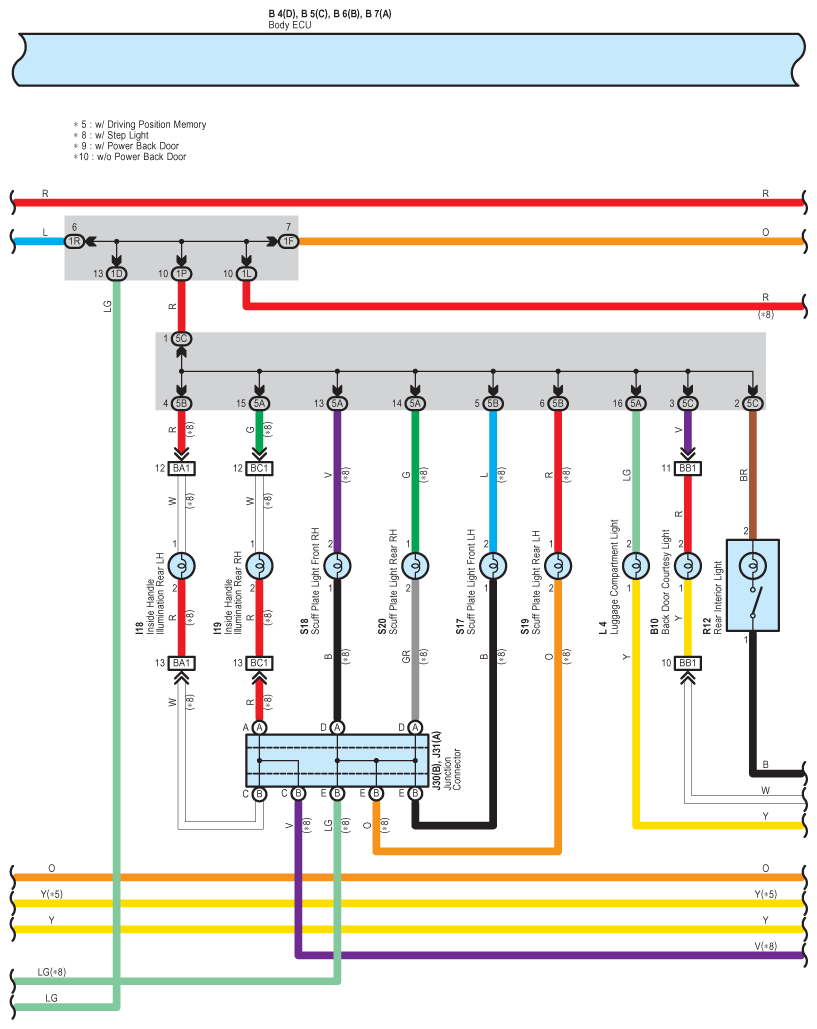

Fig 7: Multiplex Communication System - BEAN - Wiring Diagram (7 Of 25)

G08921947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Multiplex Communication System - BEAN - Wiring Diagram (8 Of 25)

G08921948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

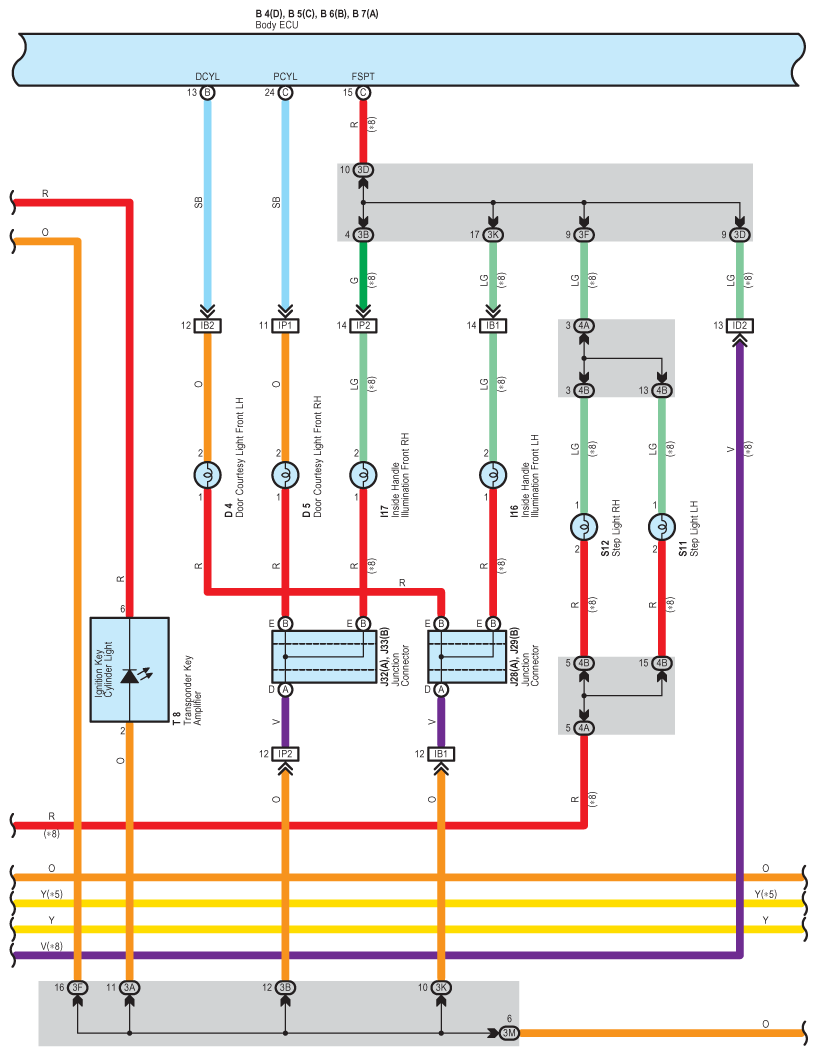

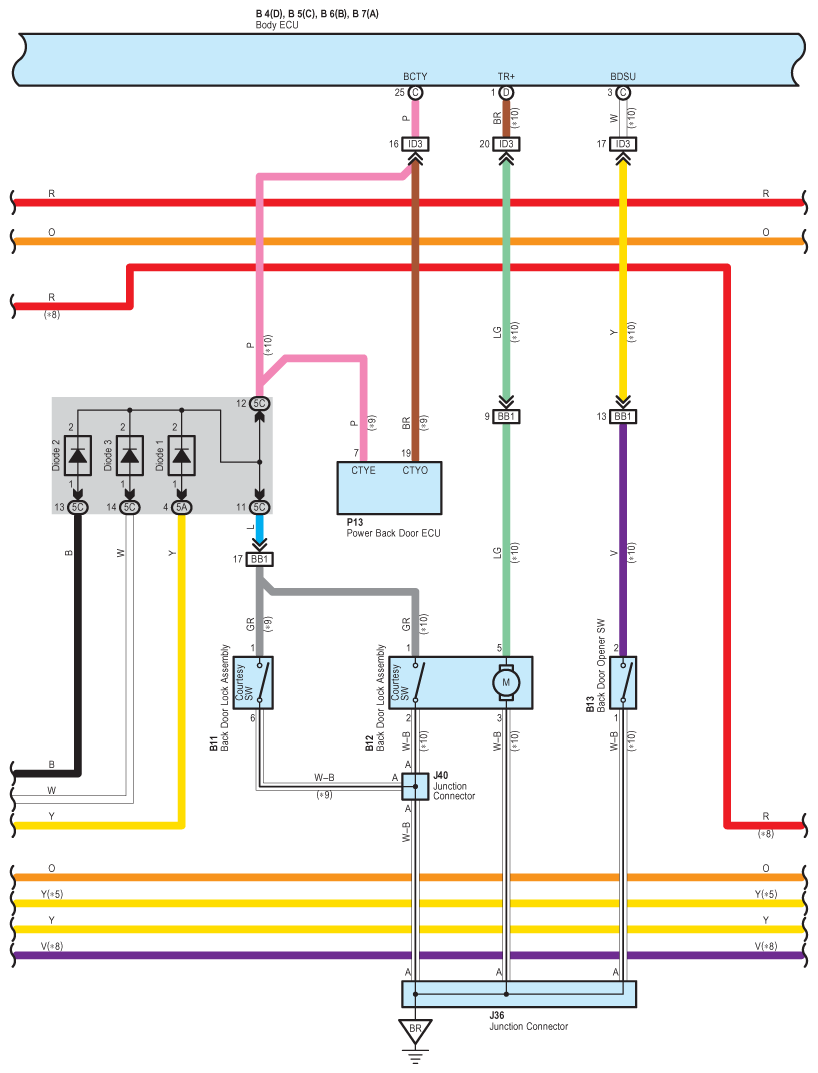

Fig 9: Multiplex Communication System - BEAN - Wiring Diagram (9 Of 25)

G08921949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

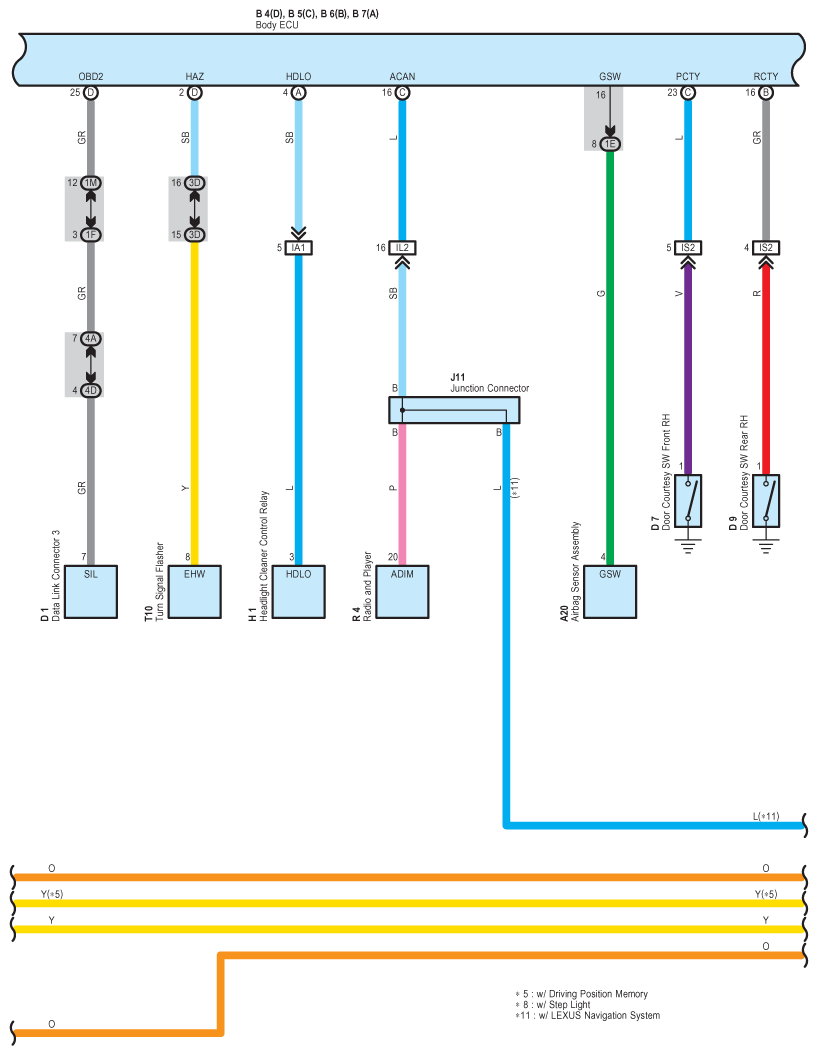

Fig 10: Multiplex Communication System - BEAN - Wiring Diagram (10 Of 25)

G08921950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

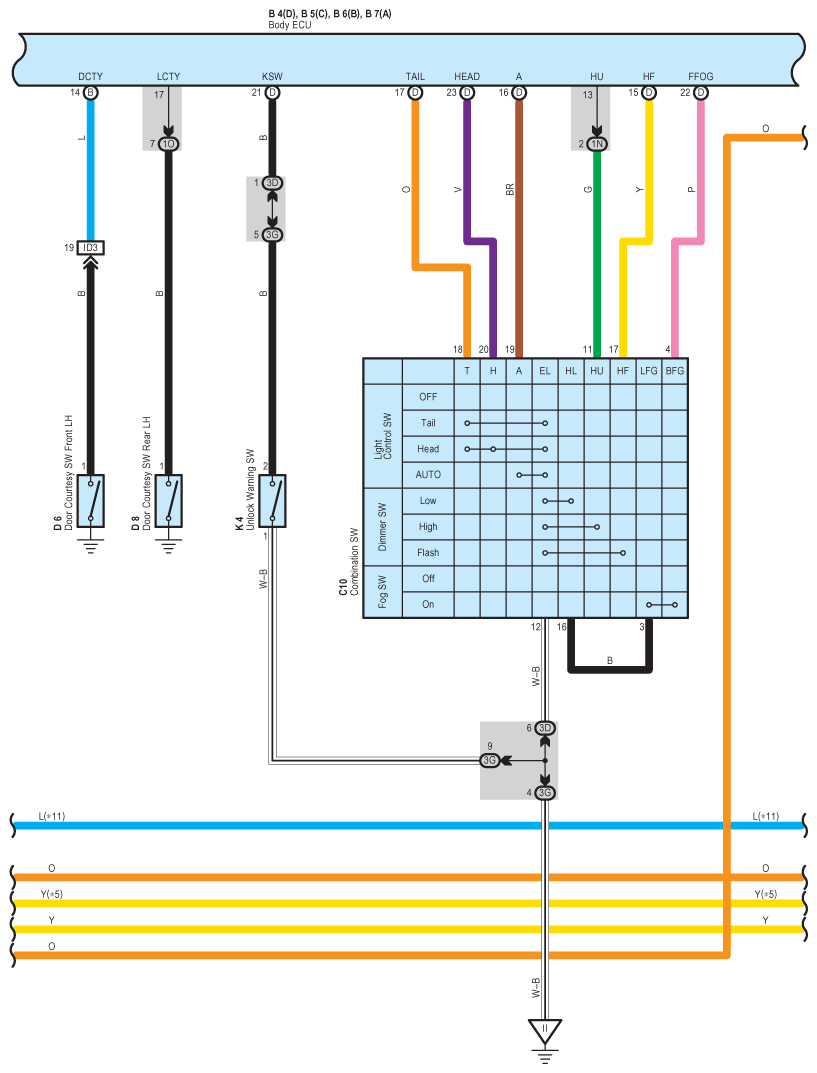

Fig 11: Multiplex Communication System - BEAN - Wiring Diagram (11 Of 25)

G08921951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

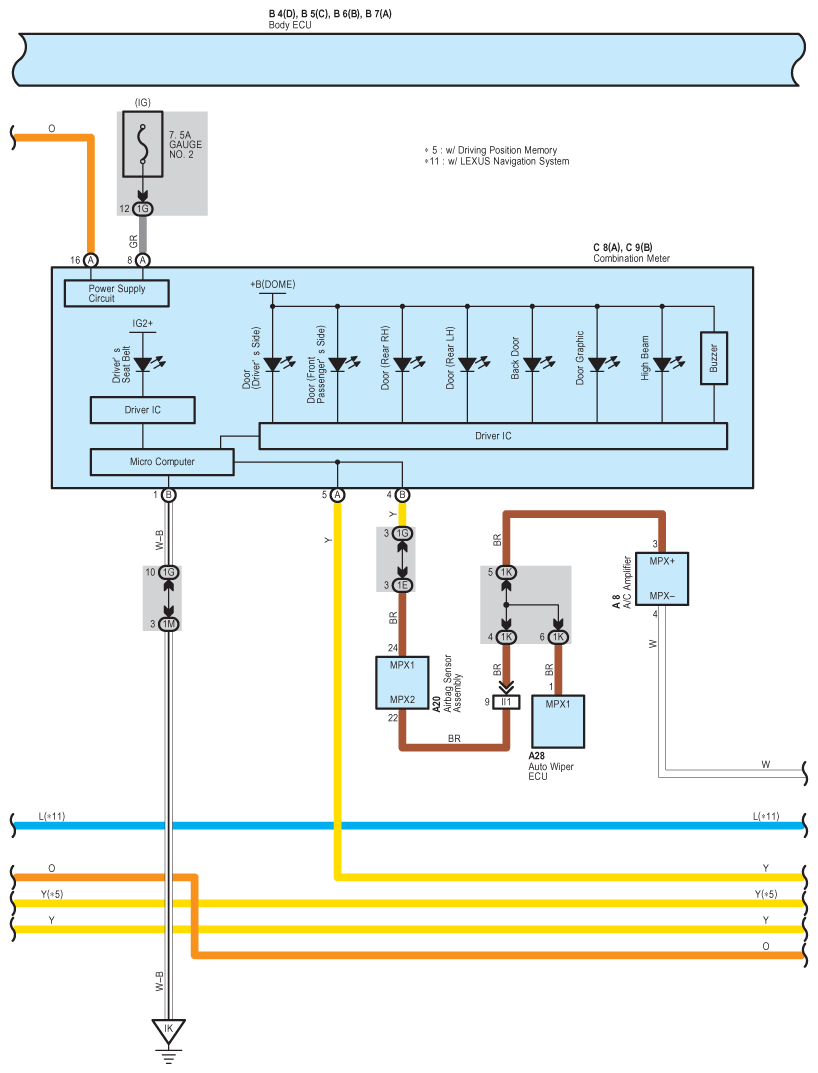

Fig 12: Multiplex Communication System - BEAN - Wiring Diagram (12 Of 25)

G08921952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

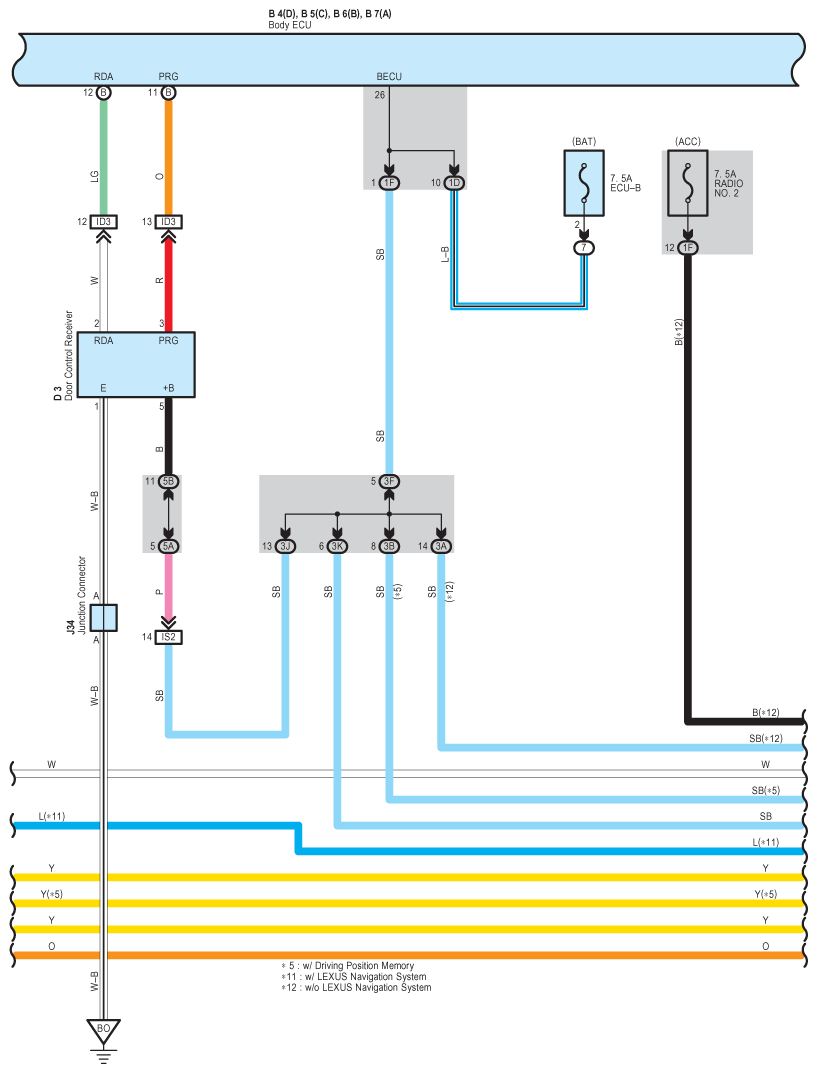

Fig 13: Multiplex Communication System - BEAN - Wiring Diagram (13 Of 25)

G08921953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

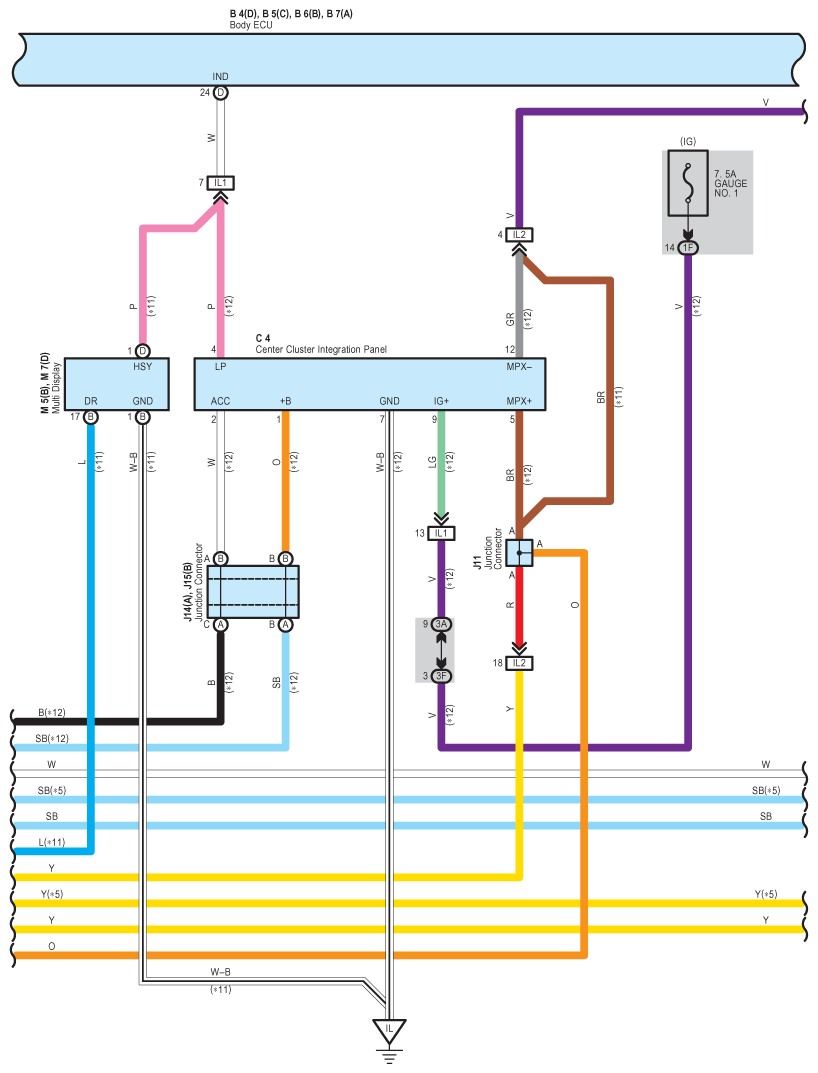

Fig 14: Multiplex Communication System - BEAN - Wiring Diagram (14 Of 25)

G08921954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

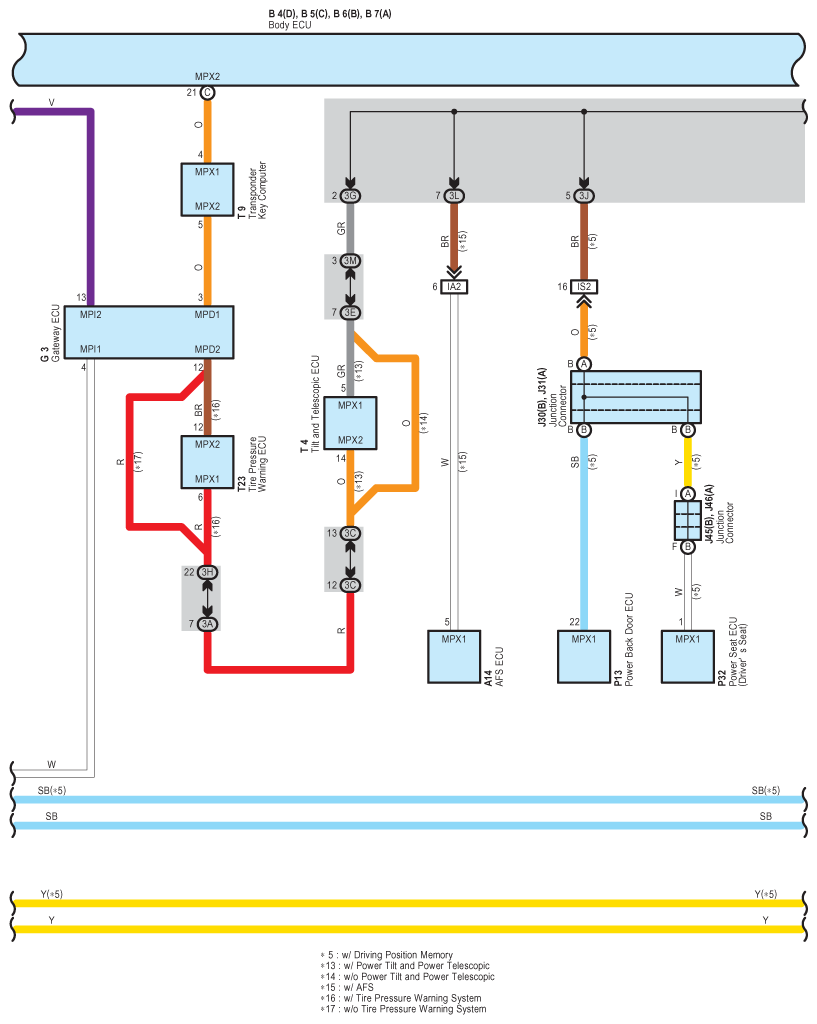

Fig 15: Multiplex Communication System - BEAN - Wiring Diagram (15 Of 25)

G08921955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

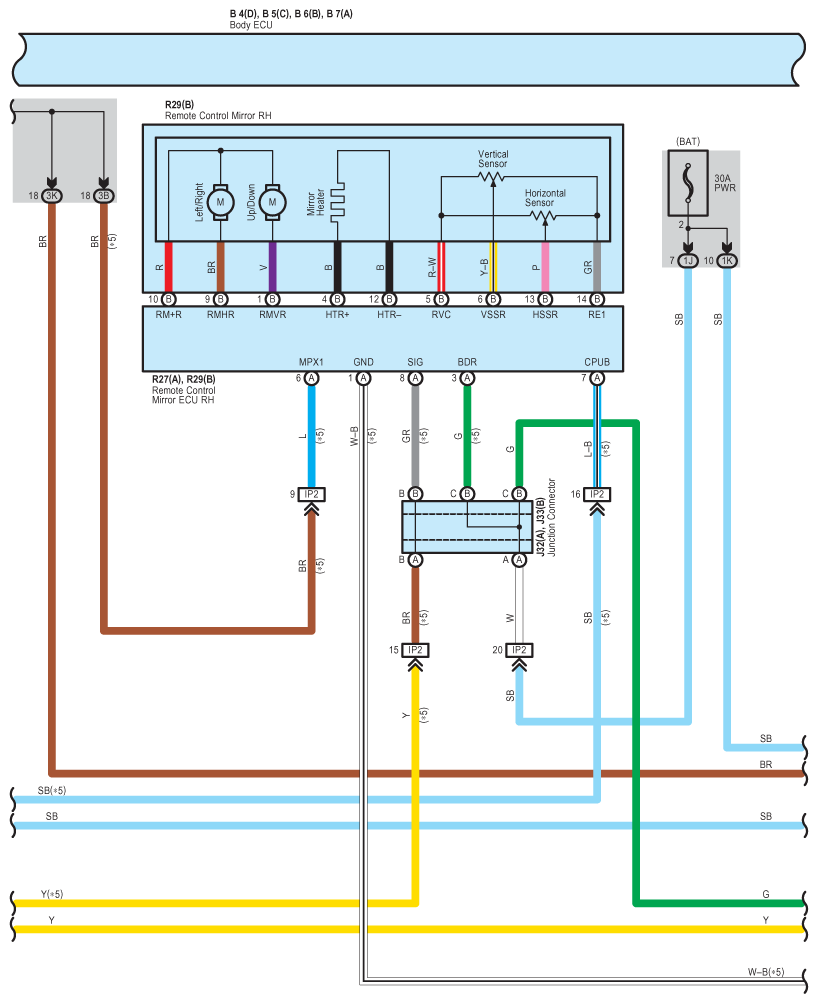

Fig 16: Multiplex Communication System - BEAN - Wiring Diagram (16 Of 25)

G08921956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Multiplex Communication System - BEAN - Wiring Diagram (17 Of 25)

G08921957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

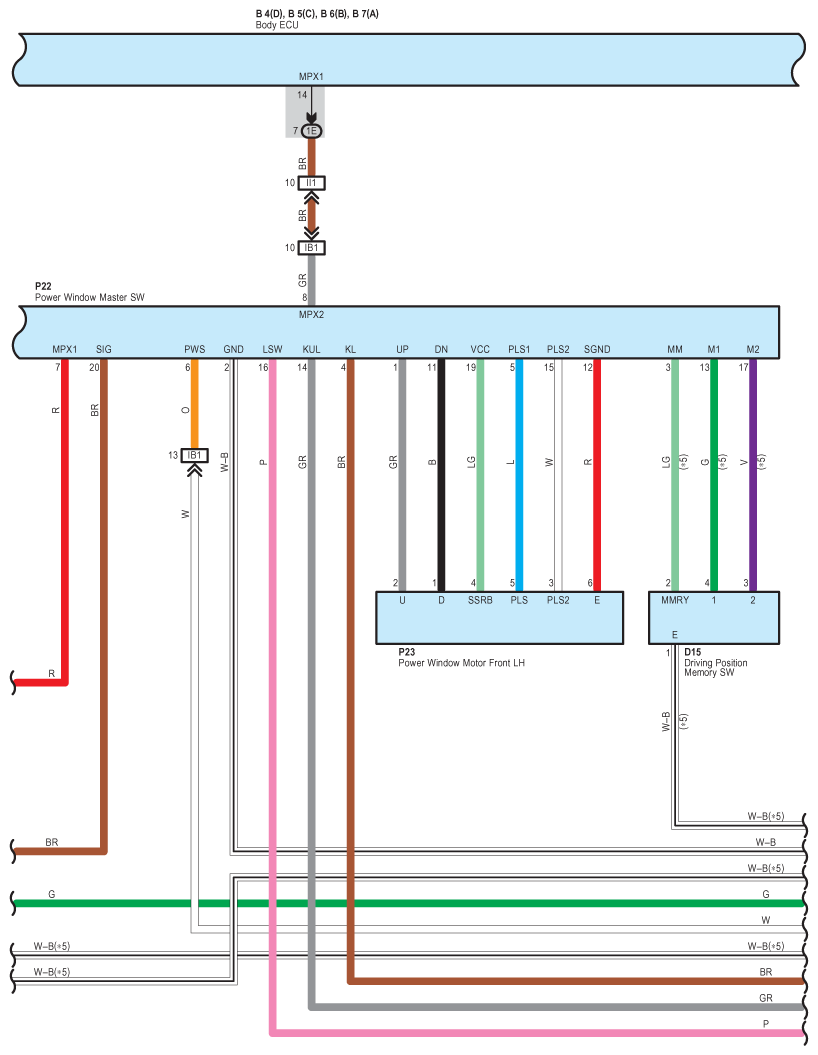

Fig 18: Multiplex Communication System - BEAN - Wiring Diagram (18 Of 25)

G08921958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

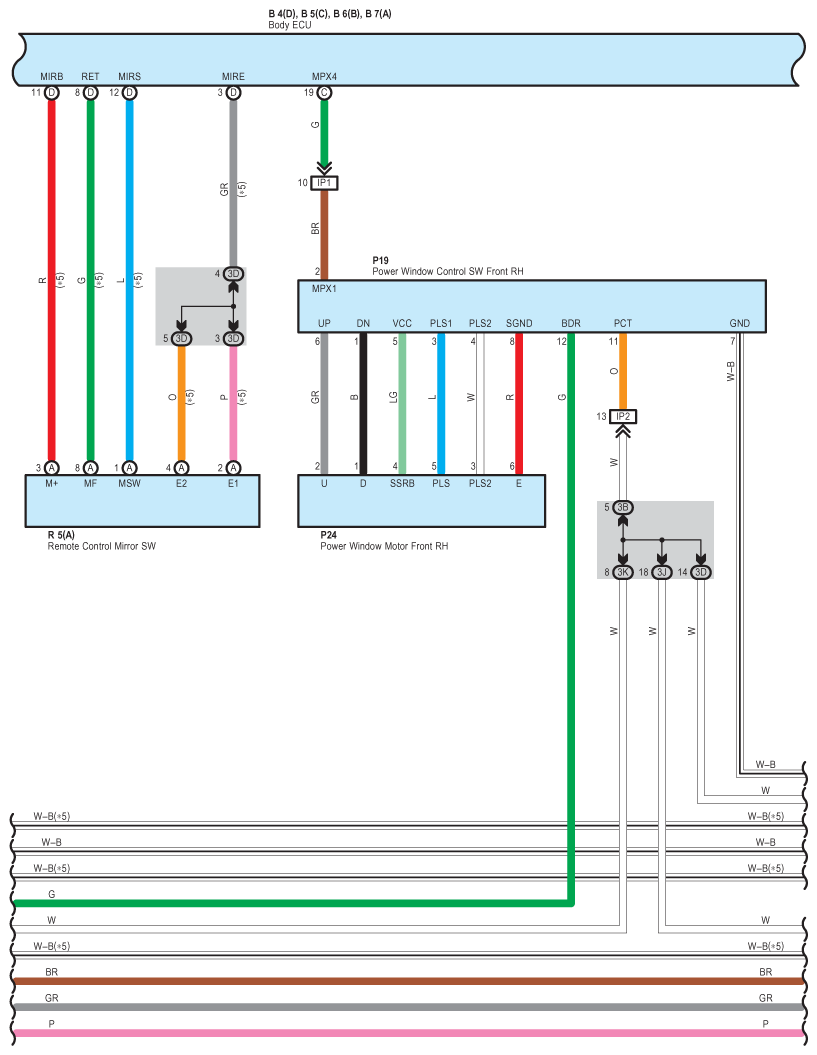

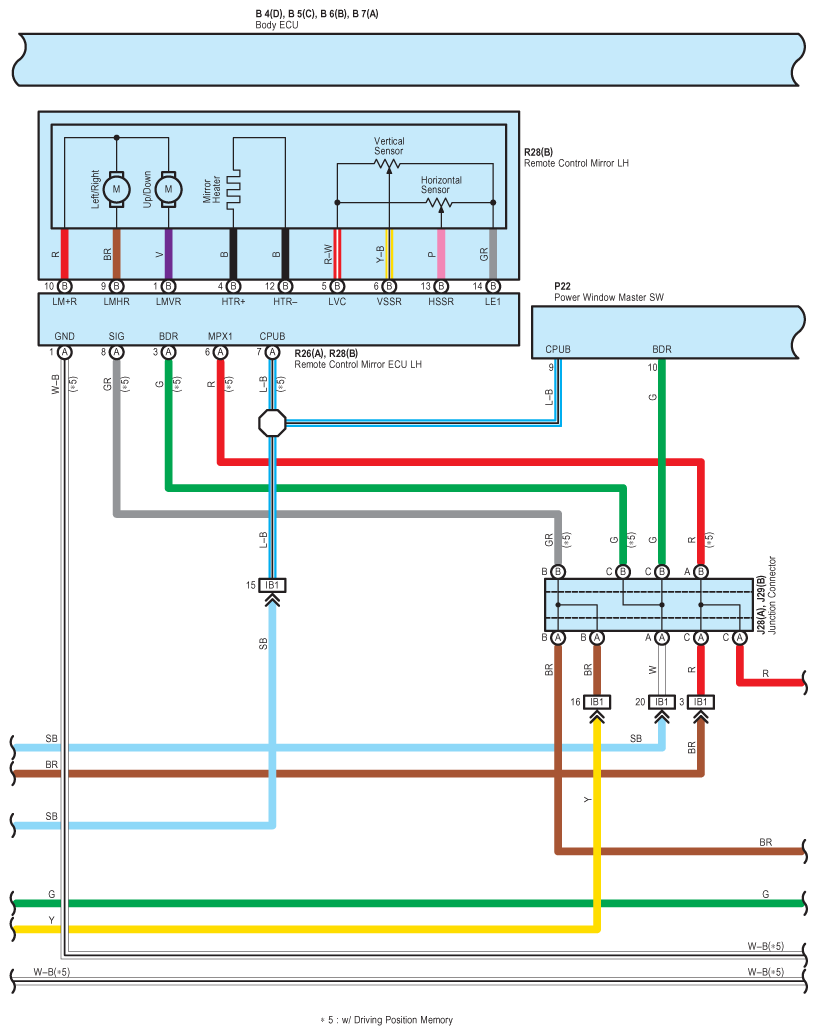

Fig 19: Multiplex Communication System - BEAN - Wiring Diagram (19 Of 25)

G08921959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

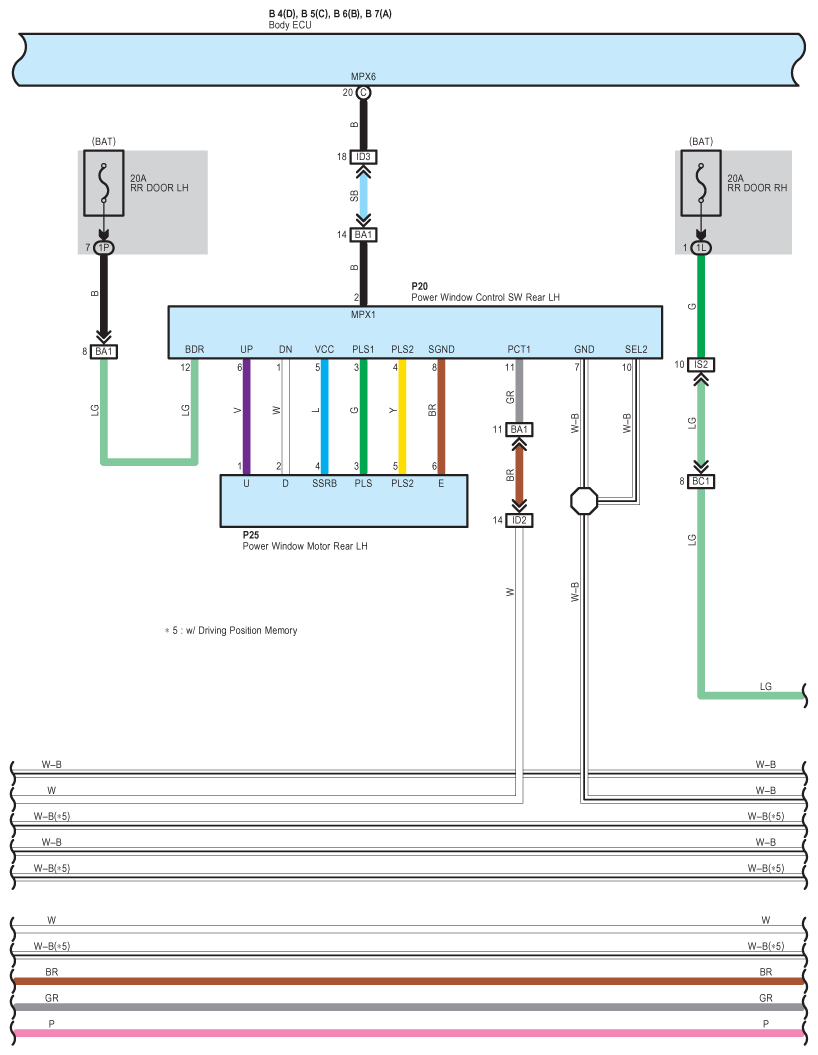

Fig 20: Multiplex Communication System - BEAN - Wiring Diagram (20 Of 25)

G08921960

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

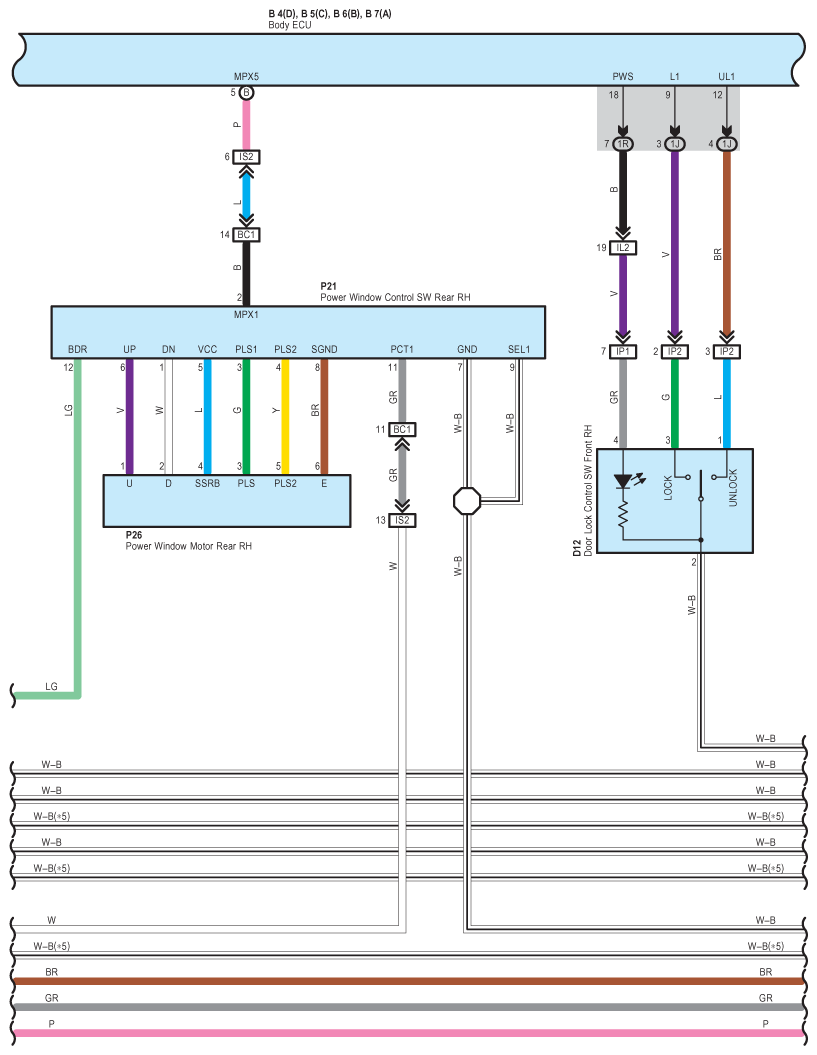

Fig 21: Multiplex Communication System - BEAN - Wiring Diagram (21 Of 25)

G08921961

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

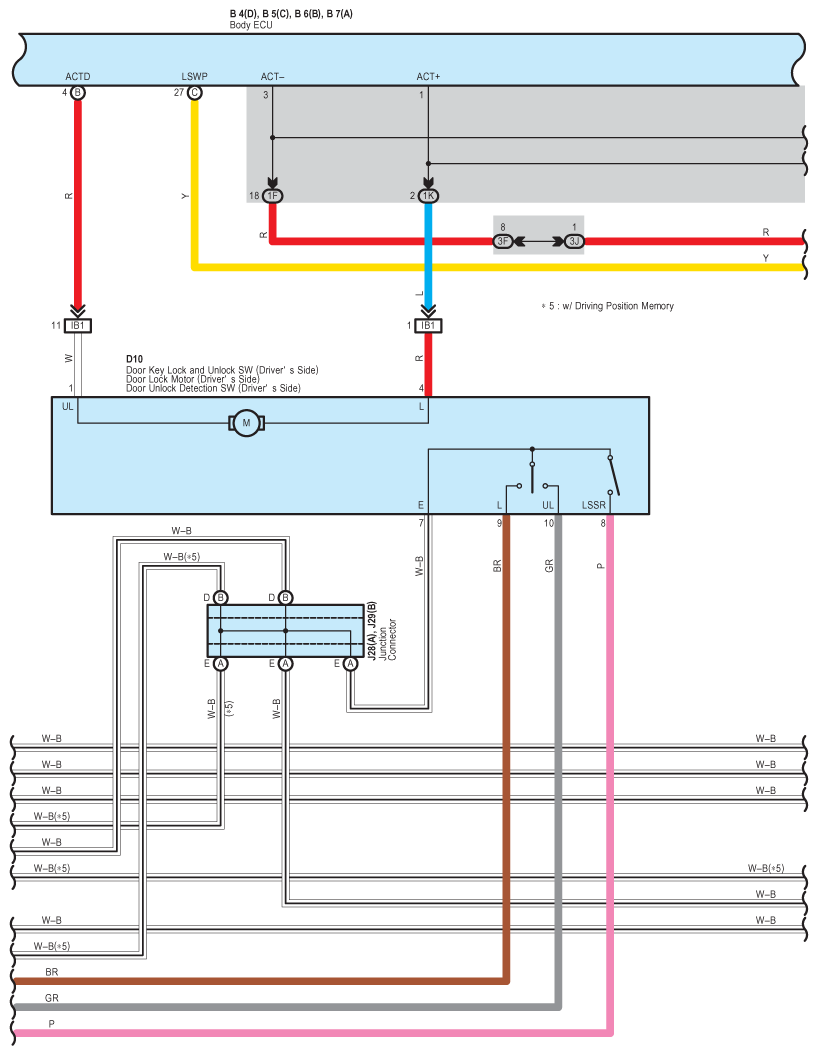

Fig 22: Multiplex Communication System - BEAN - Wiring Diagram (22 Of 25)

G08921962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

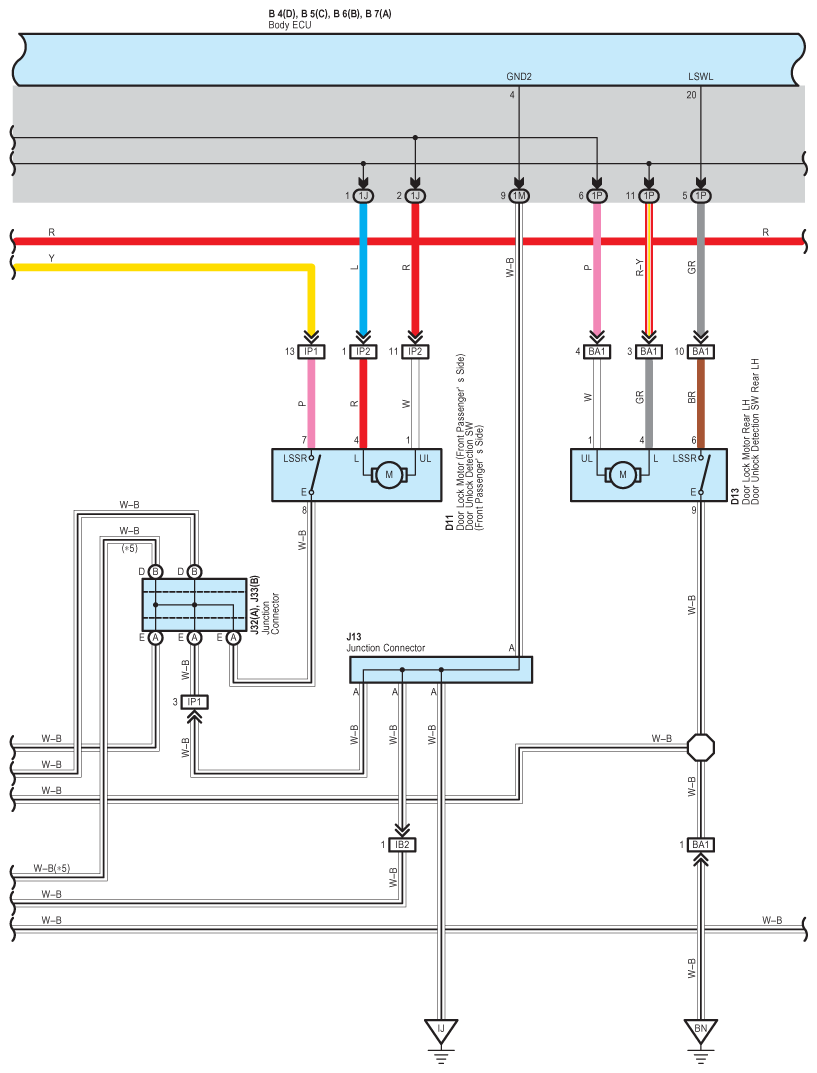

Fig 23: Multiplex Communication System - BEAN - Wiring Diagram (23 Of 25)

G08921963

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

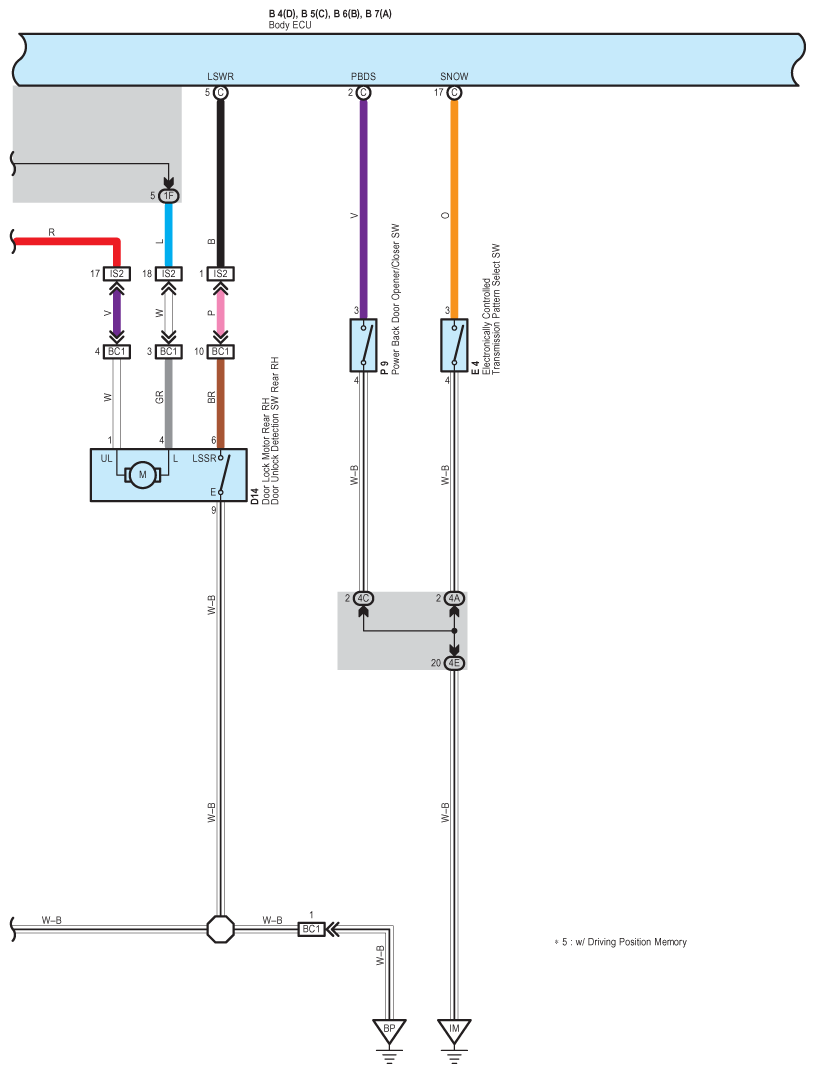

Fig 24: Multiplex Communication System - BEAN - Wiring Diagram (24 Of 25)

G08921964

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

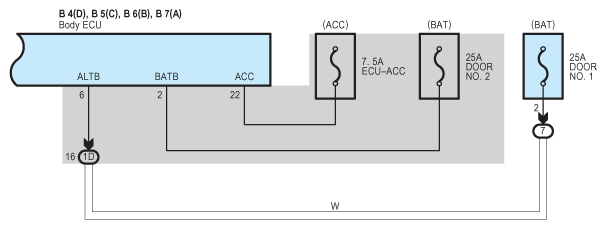

Fig 25: Multiplex Communication System - BEAN - Wiring Diagram (25 Of 25)

G08921965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
