Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| BA1 (Blue, 17 Pin) | At base of left "B" pillar. See Figure. |
| BB1 (White, 17 Pin) | At top left side of rear hatch. See Figure. |
| BB2 (Blue, 20 Pin) | Left top of rear hatch. See Figure. |
| BB3 (Black, 2 Pin) | Left top of rear hatch. See Figure. |
| BC1 (White, 17 Pin) | At base of right "B" pillar. See Figure. |
| BD1 (White, 20 Pin) | Left rear of cargo area. See Figure. |
| BE1 (White, 3 Pin) | Left rear of cargo area. See Figure. |
| BG1 (White, 10 Pin) | In cargo area. See Figure. |
| BH1 (White, 10 Pin) | In cargo area. See Figure. |
| BI1 (Yellow, 2 Pin) | Right rear of luggage compartment. See Figure. |
| BI2 (White, 28 Pin) | Right rear of engine compartment. See Figure. |
| BJ1 (Gray, 6 Pin) | In right front passenger's seat. See Figure. |
| EA1 (Gray, 4 Pin) | Rear of right cylinder head cover. See Figure. |
| EB1 (Gray, 6 Pin) | Under engine compartment J/B. See Figure. |
| EB2 (Black, 10 Pin) | Left side of engine compartment. See Figure. |
| IA1 (Gray, 18 Pin) | Behind left kick panel. See Figure. |
| IA2 (White, 20 Pin) | Behind left kick panel. See Figure. |
| IA3 (Yellow, 2 Pin) | Behind left kick panel. See Figure. |
| IA4 (White, 2 Pin) | Behind left kick panel. See Figure. |
| IB1 (White, 20 Pin) | Behind left kick panel. See Figure. |
| IB2 (Blue, 17 Pin) | Behind left kick panel. See Figure. |
| IC1 (White, 3 Pin) | Behind left kick panel. See Figure. |
| ID1 (Blue, 9 Pin) | Behind left kick panel. See Figure. |
| ID2 (White, 18 Pin) | Behind left kick panel. See Figure. |
| ID3 (Gray, 20 Pin) | Behind left kick panel. See Figure. |

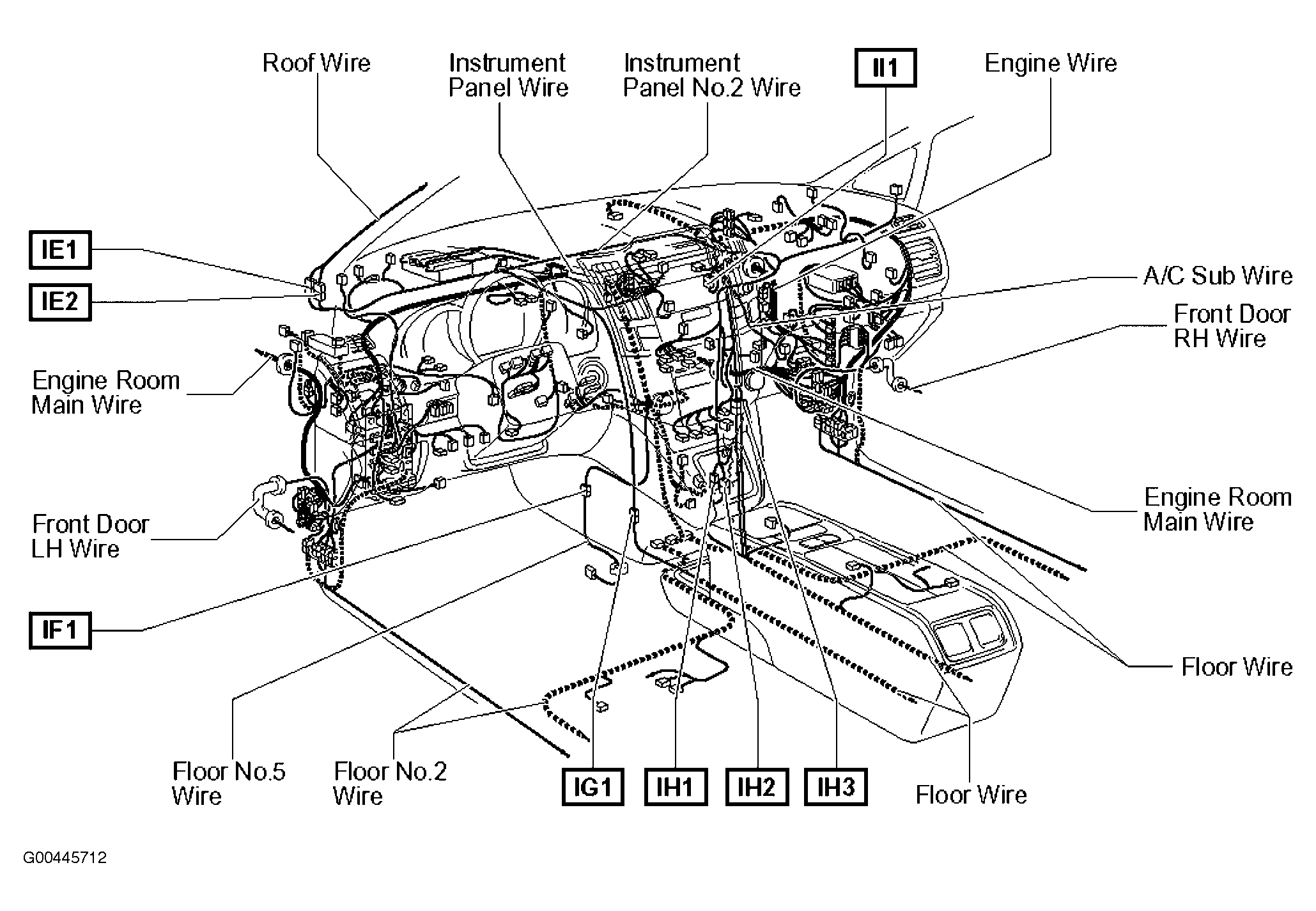

| IE1 (White, 14 Pin) | Behind left side of dash. See Figure. |
| IE2 (White, 20 Pin) | Behind left side of dash. See Figure. |
| IF1 (Gray, 4 Pin) | Behind lower center of dash. See Figure. |
| IG1 (White, 17 Pin) | Behind center of dash. See Figure. |
| IH1 (White, 22 Pin) | Behind center of dash. See Figure. |
| IH2 (White, 17 Pin) | Behind center of dash. See Figure. |
| IH3 (Light Blue, 1 Pin) | Behind center of dash. See Figure. |
| II1 (White, 10 Pin) | Behind center of dash. See Figure. |
| IJ1 (White, 10 Pin) | Behind left side of glove box. See Figure. |
| IK1 (White, 3 Pin) | Behind right side of dash. See Figure. |
| IL1 (White, 17 Pin) | Behind right side of dash. See Figure. |
| IL2 (Gray, 20 Pin) | Behind right side of dash. See Figure. |
| IM1 (White, 5 Pin) | Behind right side of dash. See Figure. |
| IN1 (Blue, 20 Pin) | Behind right side of dash. See Figure. |
| IO1 (White, 20 Pin) | Behind right kick panel. See Figure. |
| IO2 (Gray, 18 Pin) | Behind right kick panel. See Figure. |
| IO3 (Yellow, 2 Pin) | Behind right kick panel. See Figure. |
| IP1 (Blue, 17 Pin) | Behind right kick panel. See Figure. |
| IP2 (White, 20 Pin) | Behind right kick panel. See Figure. |
| IQ1 (Blue, 22 Pin) | Behind right kick panel. See Figure. |
| IQ2 (White, 2 Pin) | Behind right kick panel. See Figure. |
| IR1 (White, 11 Pin) | Behind right kick panel. See Figure. |
| IS1 (Blue, 9 Pin) | Behind right kick panel. See Figure. |
| IS2 (White, 18 Pin) | Behind right kick panel. See Figure. |
| IS3 (Gray, 20 Pin) | Behind right kick panel. See Figure. |
