Combination Meter: Installation

INSTALL COMBINATION METER ASSEMBLY
1. Connect the connectors.

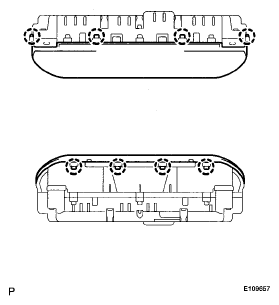

  Fig 1: Identifying Combination Meter Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the combination meter assembly with the 4 screws.

  Fig 2: Identifying Combination Meter Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
1. Engage the 4 clips and install the instrument cluster finish panel sub-assembly.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.

Fig 3: Identifying Instrument Cluster Finish Panel Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
