Inspection Procedure

HINT:

Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

1. READ VALUE OF INTELLIGENT TESTER (ACCEL POS #1 AND ACCEL POS #2)
   1. Connect the intelligent tester to the DLC3.
   2. Turn the ignition switch to the ON position and turn the tester on.
   3. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / ACCEL POS #1 and ACCEL POS #2.
   4. Read the values displayed on the tester.

      Standard voltage

      VOLTAGE SPECIFICATION



      Accelerator Pedal Operation	ACCEL POS #1 (AP #1)	ACCEL POS #2 (AP #2)
      Released	0.5 to 1.1 V	1.2 to 2.0 V
      Depressed	2.6 to 4.5 V	3.4 to 4.7 V

      Fig 1: Identifying Accelerator Pedal Operations

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Go to step  4

   NG: Go to Next Step

2. CHECK HARNESS AND CONNECTOR (ACCELERATOR PEDAL POSITION SENSOR - ECM)
   1. Disconnect the A12 Accelerator Pedal Position (APP) sensor connector.
   2. Disconnect the E5 ECM connector.
   3. Measure the resistance.

      Standard resistance:

      Check for open

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Specified Condition
      VPA (A12-6) - VPA (E5-18)	Below 1 Ω
      EPA (A12-5) - EPA (E5-20)	Below 1 Ω
      VCPA (A12-4) - VCPA (E5-26)	Below 1 Ω
      VPA2 (A12-3) - VPA2 (E5-19)	Below 1 Ω
      EPA2 (A12-2) - EPA2 (E5-21)	Below 1 Ω
      VCP2 (A12-1) - VCP2 (E5-27)	Below 1 Ω

      Check for short

      TESTER CONNECTION SPECIFIED CONDITION



      Tester Connection	Specified Condition
      VPA (A12-6) or VPA (E5-18) - Body ground	10 kΩ or higher
      EPA (A12-5) or EPA (E5-20) - Body ground	10 kΩ or higher
      VCPA (A12-4) or VCPA (E5-26) - Body ground	10 kΩ or higher
      VPA2 (A12-3) or VPA2 (E5-19) - Body ground	10 kΩ or higher
      EPA2 (A12-2) or EPA2 (E5-21) - Body ground	10 kΩ or higher
      VCP2 (A12-1) or VCP2 (E5-27) - Body ground	10 kΩ or higher

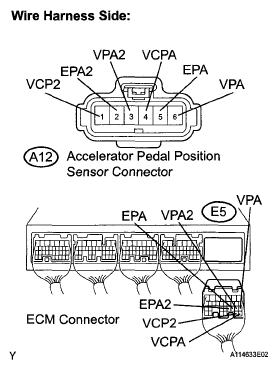

      Fig 2: Identifying Accelerator Pedal Position Sensor And ECM Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Reconnect the APP sensor connector.
   5. Reconnect the ECM connector.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to Next Step

3. REPLACE ACCELERATOR PEDAL
   1. Replace the accelerator pedal (See REMOVAL  ).
4. CHECK WHETHER DTC OUTPUT RECURS (ACCELERATOR PEDAL POSITION SENSOR DTCS)
   1. Connect the intelligent tester to the DLC3.
   2. Turn the ignition switch to the ON position and turn the tester on.
   3. Clear the DTCs (See DTC CHECK/CLEAR  ).
   4. Start the engine.
   5. Allow the engine to idle for 15 seconds.
   6. Select the following menu items on the tester: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
   7. Read the DTCs.

      Result

      RESULT CHART



      Display (DTC Output)	Proceed to
      P2121	A
      No output	B

   B: SYSTEM OK

   A: REPLACE ECM  (See REMOVAL  )
