Pneumatic Tank With Tube: Components

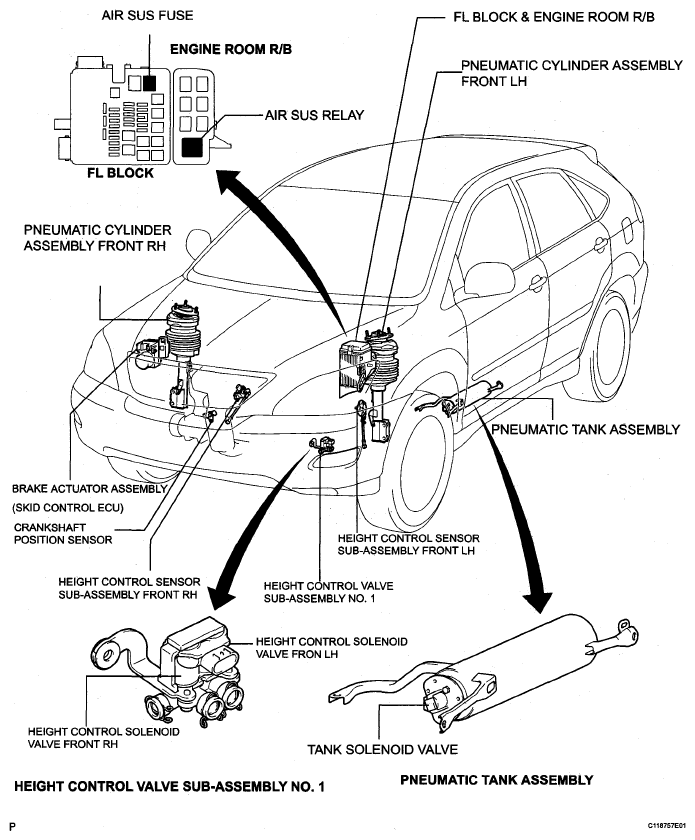

Fig 1: Identifying Pneumatic Tank With Tube Replacement Components
G05269757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
