Suspension Control Ecu: Components

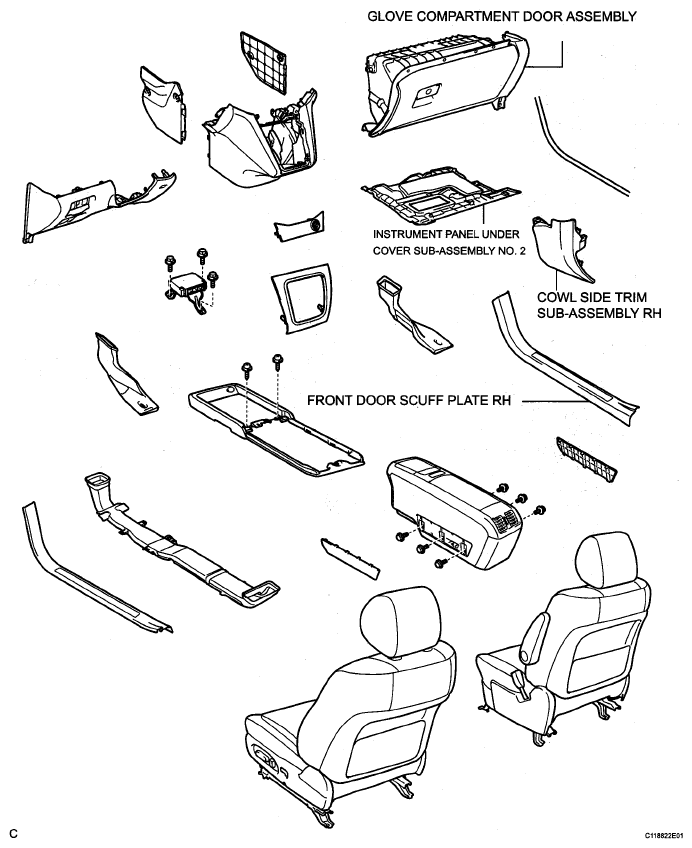

Fig 1: Identifying Suspension Control ECU Replacement Components (1 Of 3)
G05269931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Suspension Control ECU Replacement Components (2 Of 3)
G05269932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

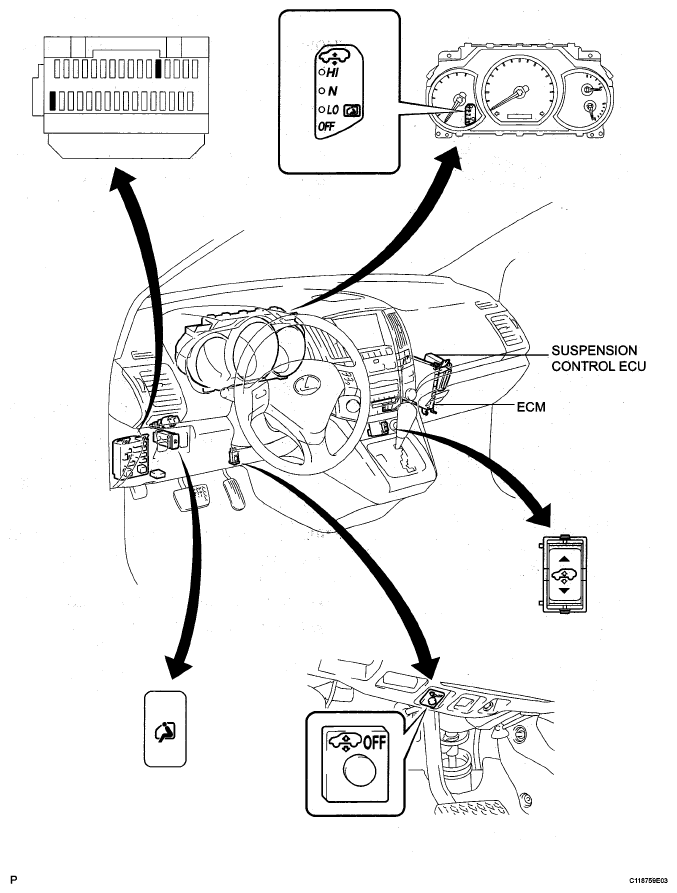

Fig 3: Identifying Suspension Control ECU Replacement Components (3 Of 3)
G05269933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
