Automatic Transaxle Unit: Components

Fig 1: Automatic Transaxle Unit Components And Torque Specification (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

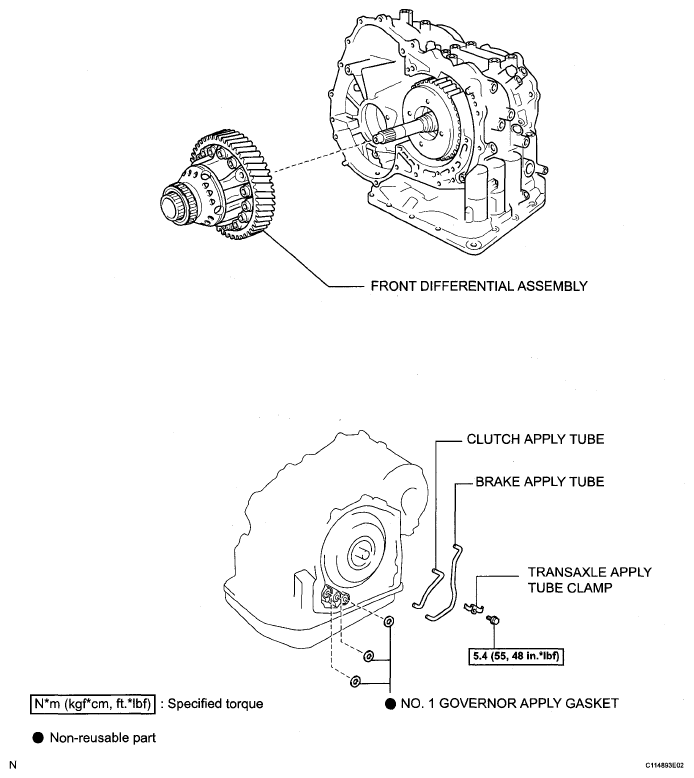

Fig 2: Automatic Transaxle Unit Components And Torque Specification (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

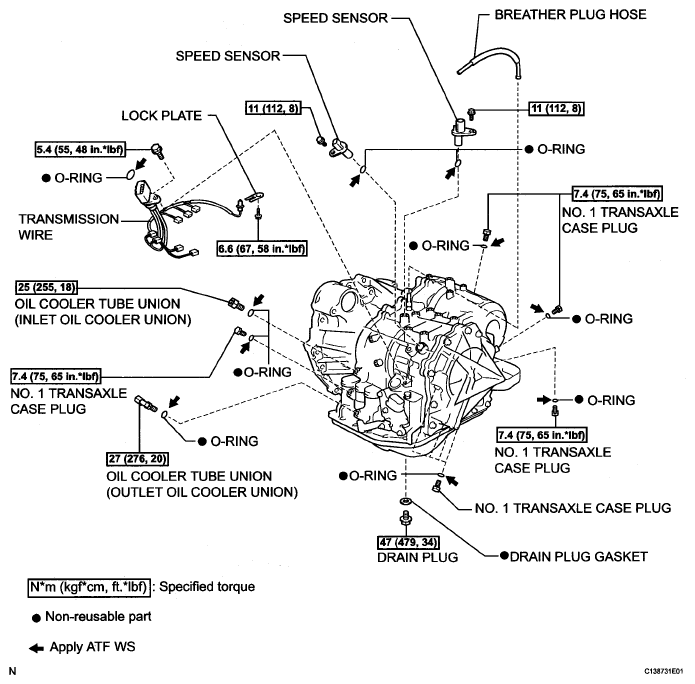

Fig 3: Automatic Transaxle Unit Components And Torque Specification (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

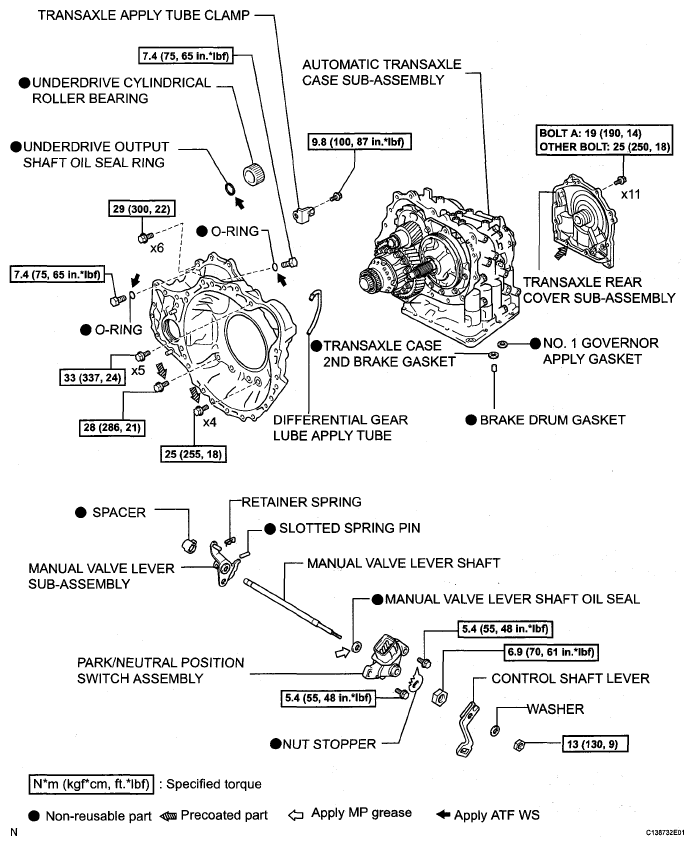

Fig 4: Automatic Transaxle Unit Components And Torque Specification (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

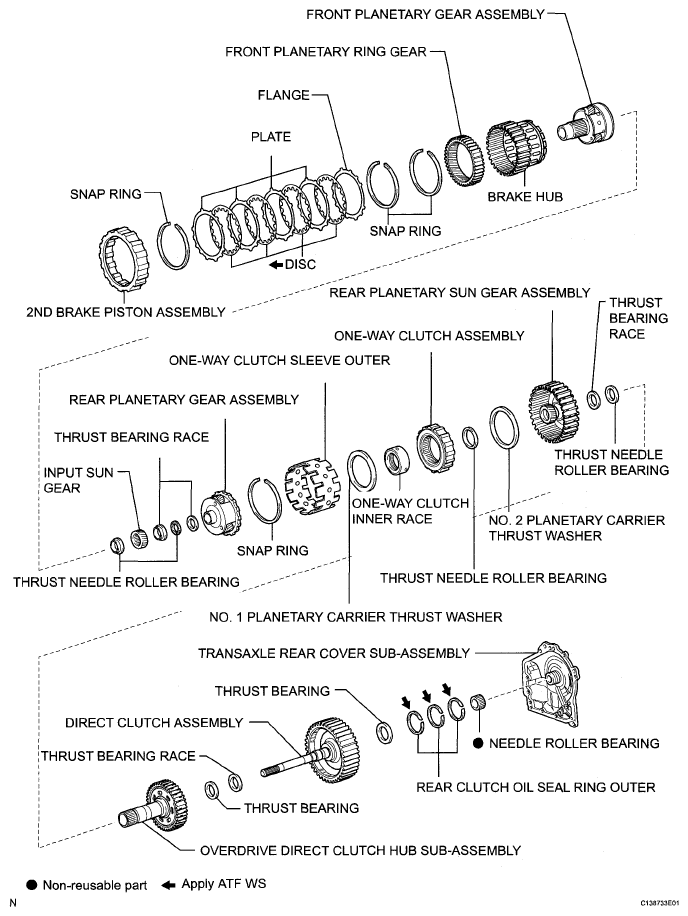

Fig 5: Automatic Transaxle Unit Components And Torque Specification (5 Of 7)

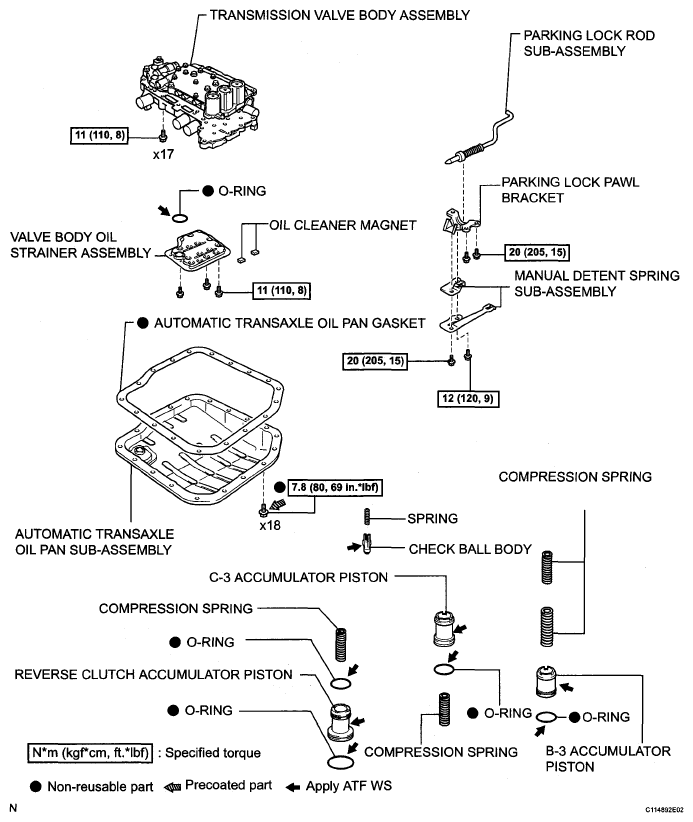

Fig 6: Automatic Transaxle Unit Components And Torque Specification (6 Of 7)

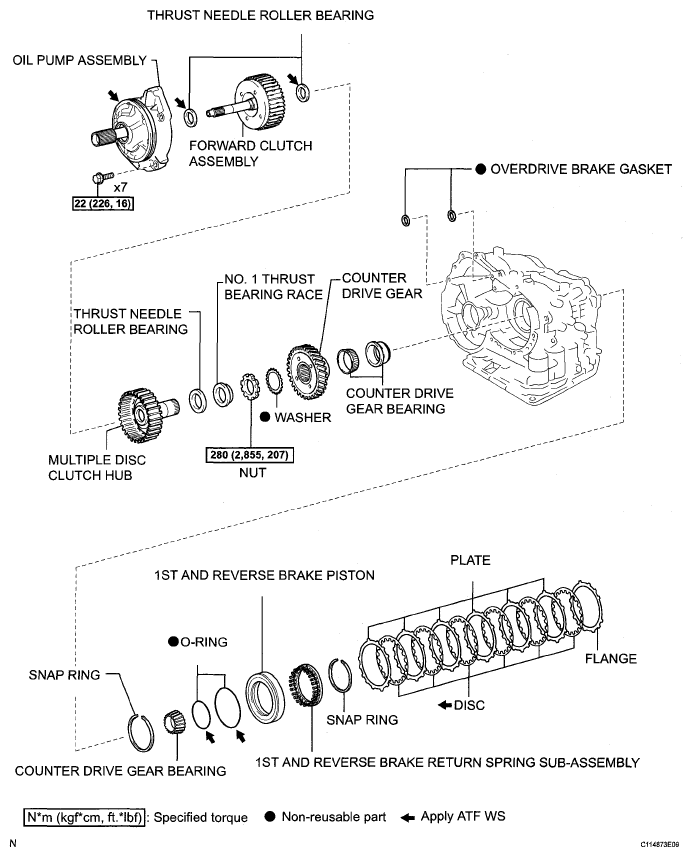

Fig 7: Automatic Transaxle Unit Components And Torque Specification (7 Of 7)
