Rear Quarter Window Glass: Components

Fig 1: Identifying Rear Quarter Window Glass Replacement Components (1 Of 2)
G05274287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

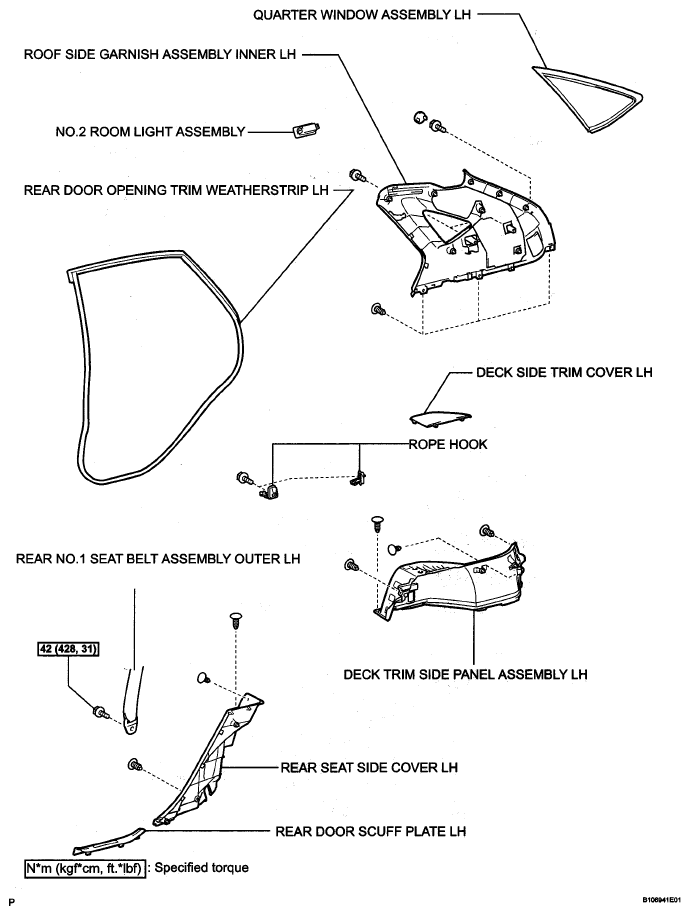

Fig 2: Identifying Rear Quarter Window Glass Replacement Components With Torque Specifications (2 Of 2)
G05274288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
