Wireless Door Lock Control: Notes

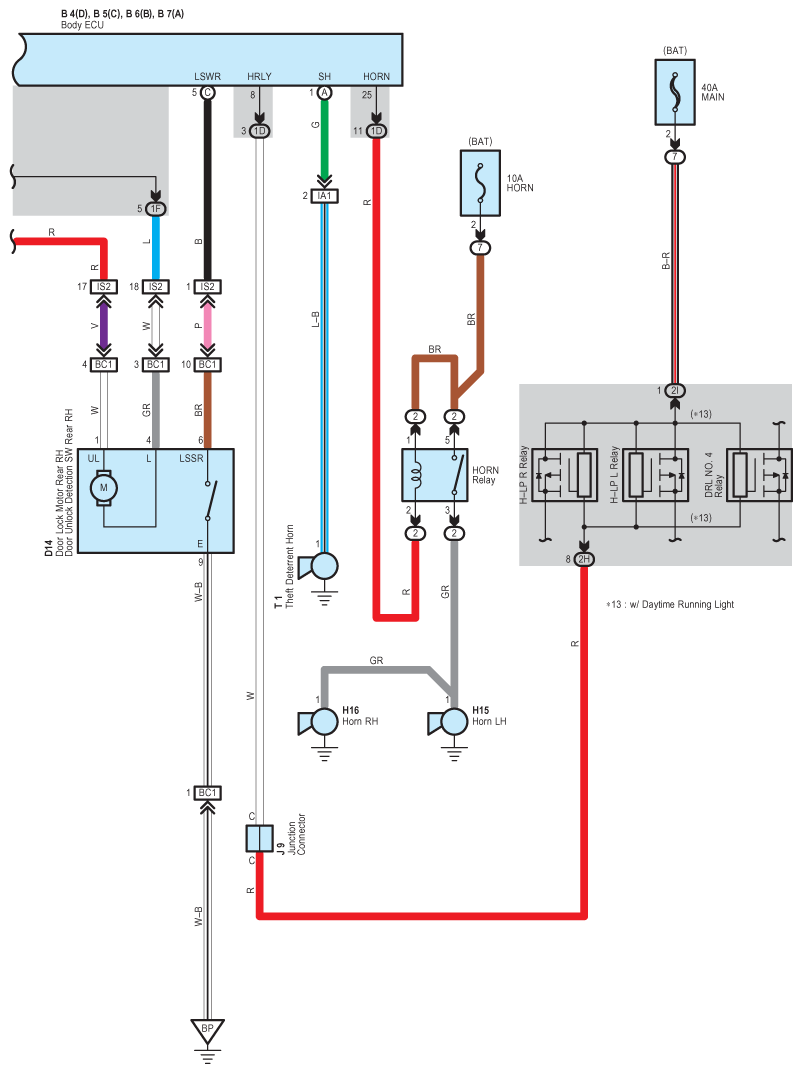

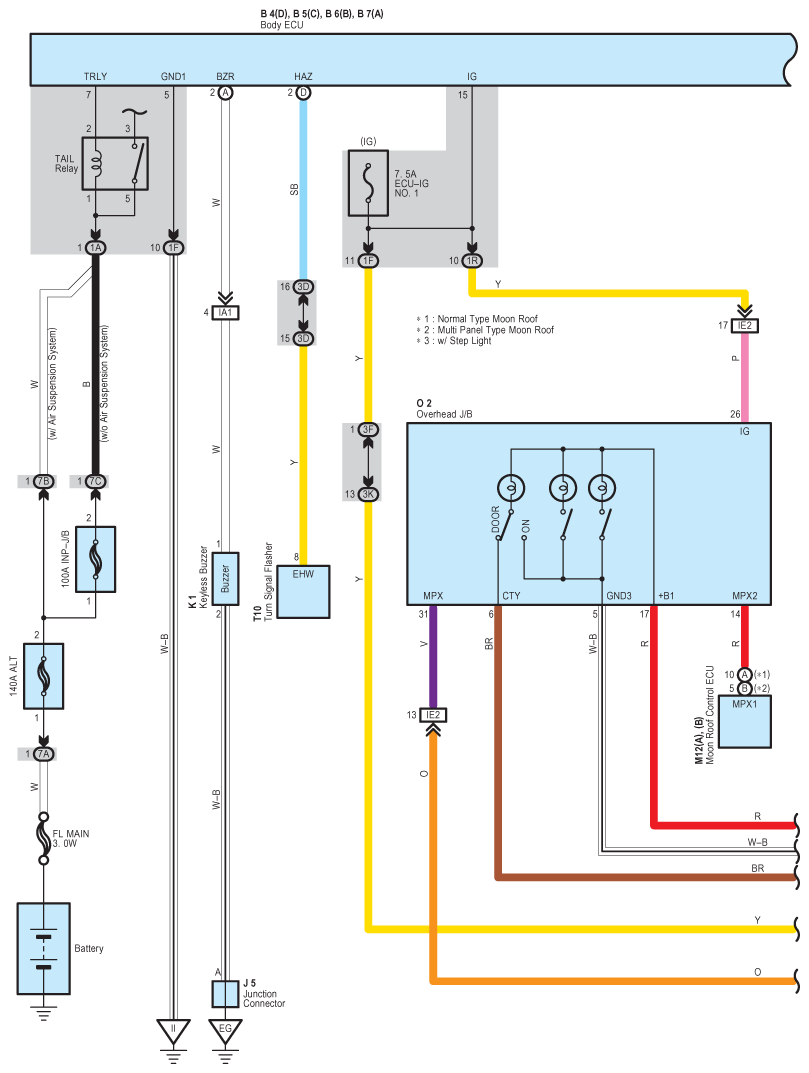

Fig 1: Wireless Door Lock Control - Wiring Diagram (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

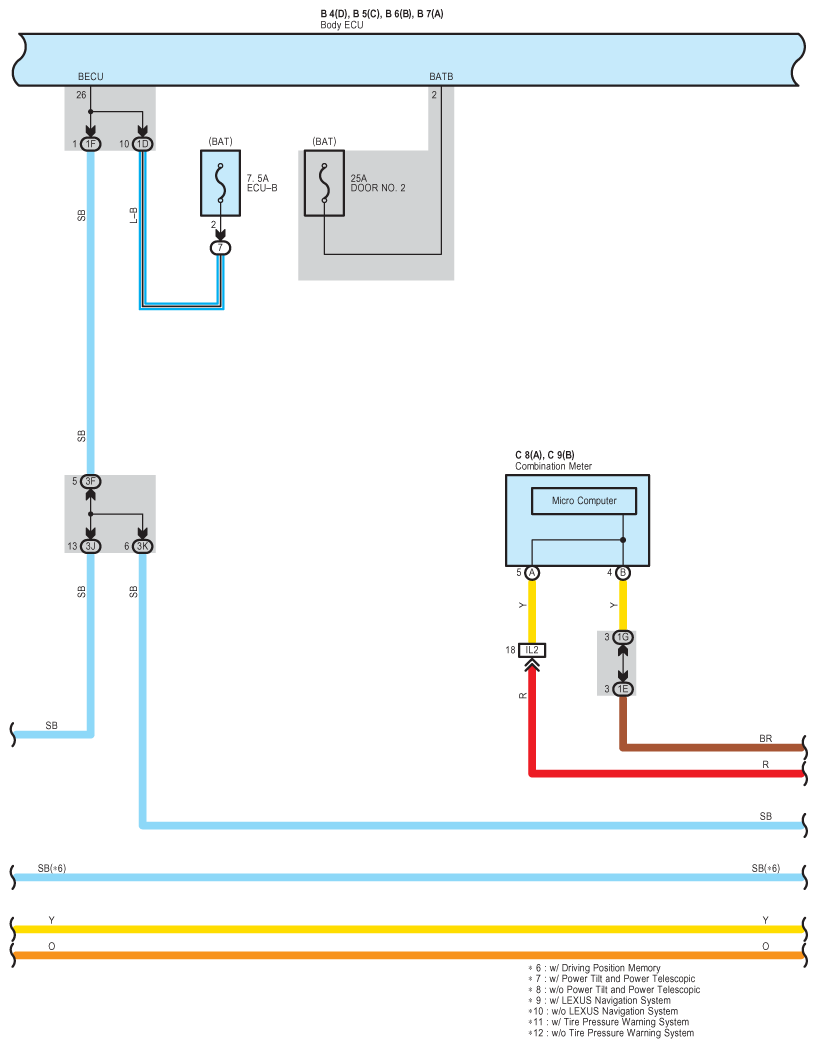

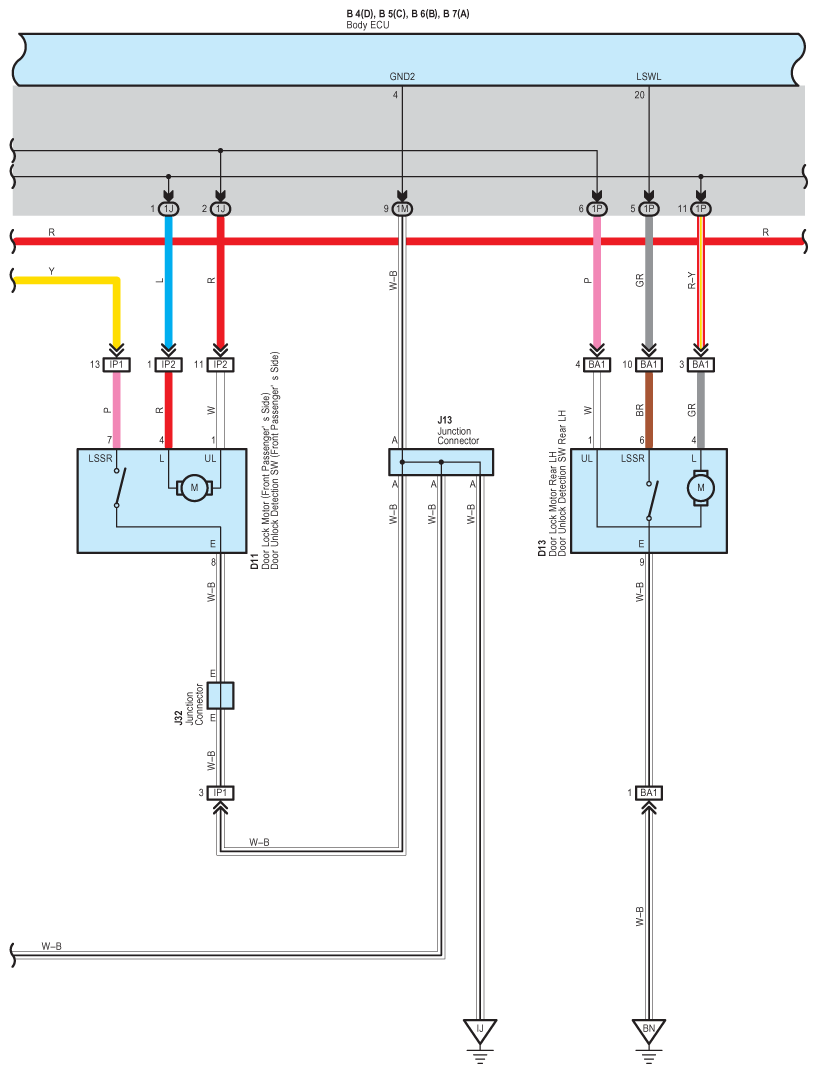

Fig 2: Wireless Door Lock Control - Wiring Diagram (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

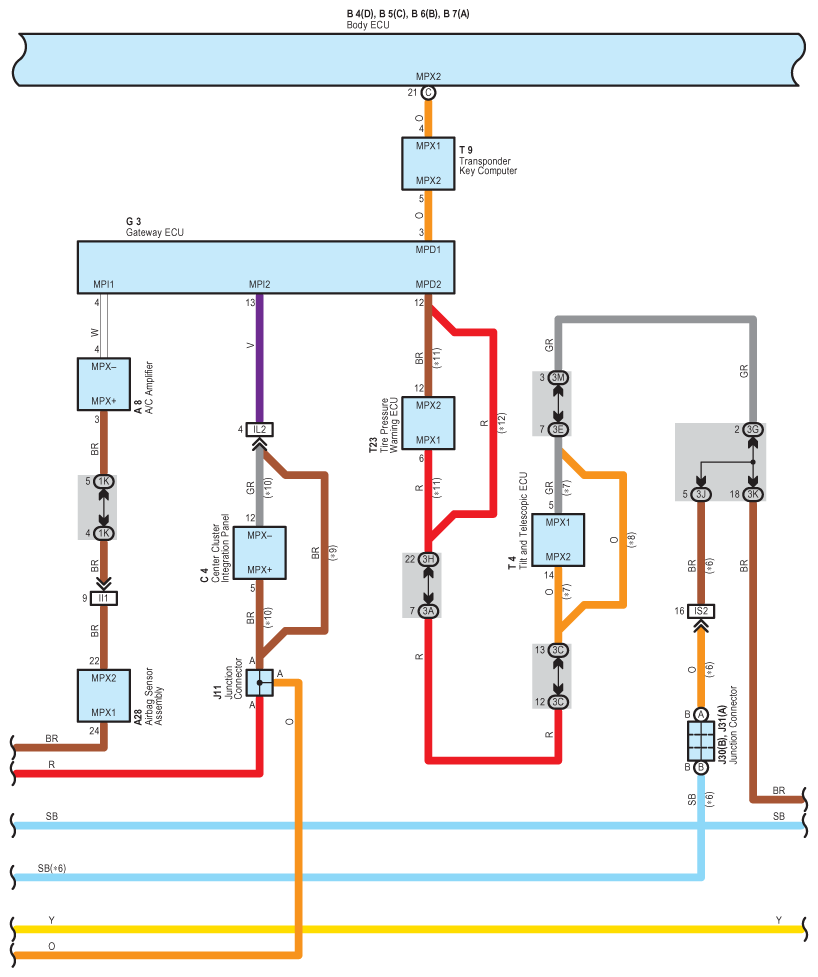

Fig 3: Wireless Door Lock Control - Wiring Diagram (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

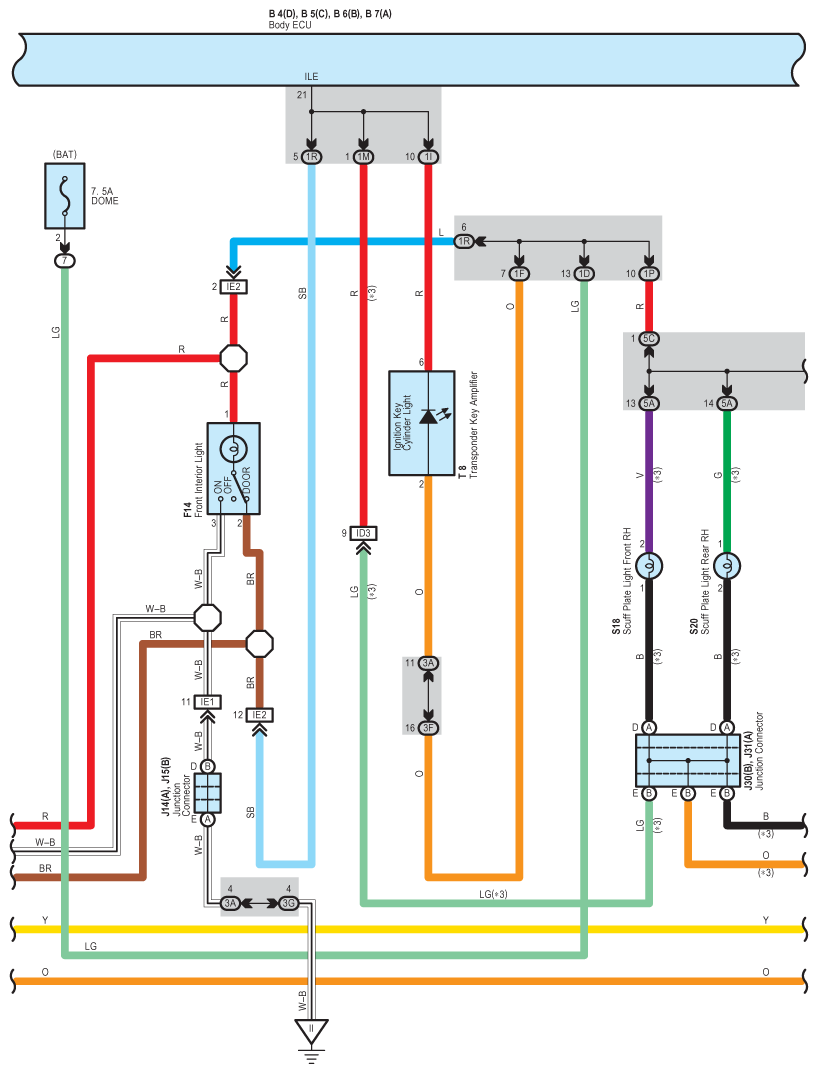

Fig 4: Wireless Door Lock Control - Wiring Diagram (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

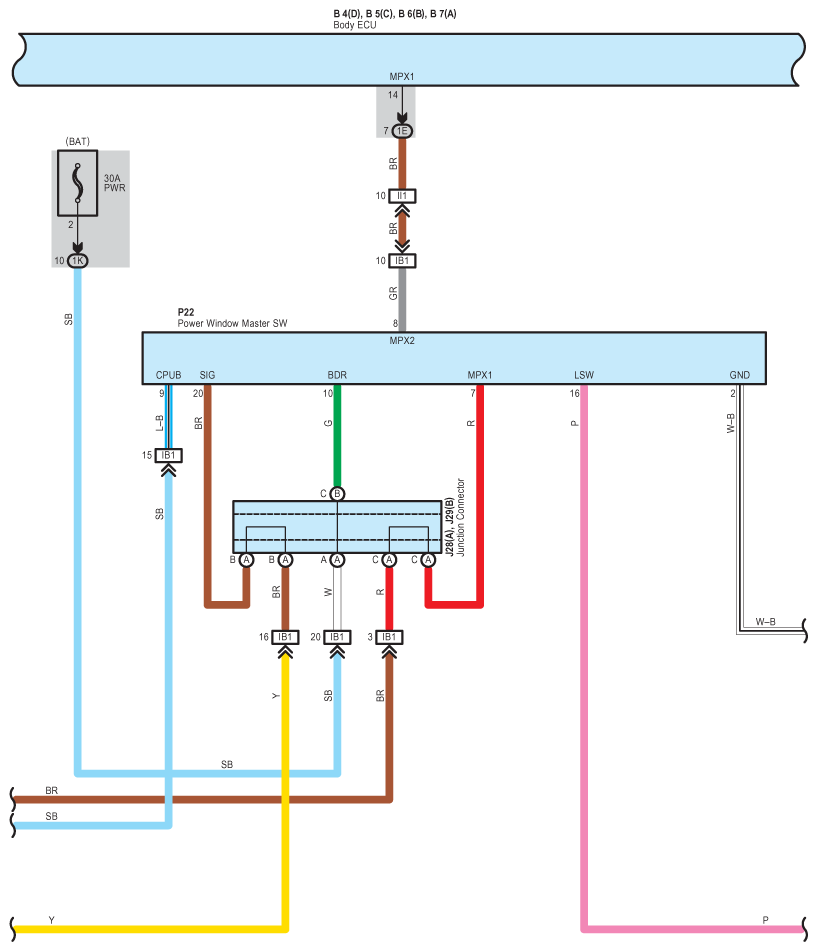

Fig 5: Wireless Door Lock Control - Wiring Diagram (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

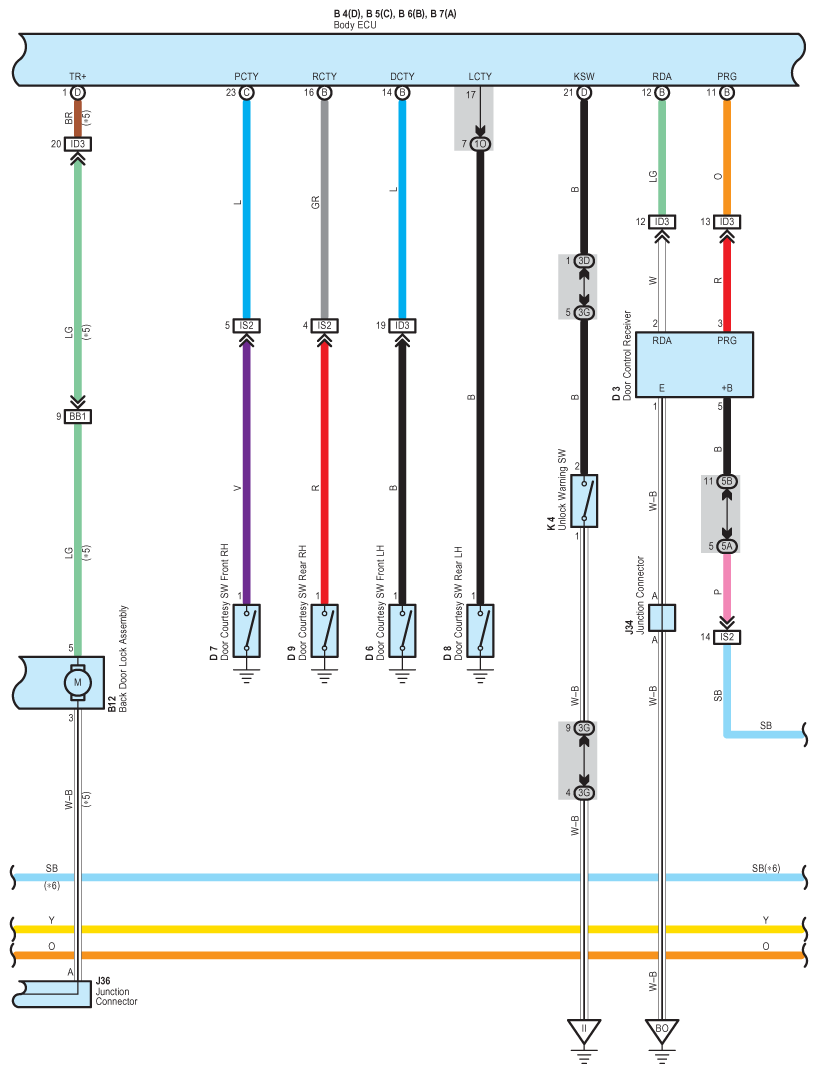

Fig 6: Wireless Door Lock Control - Wiring Diagram (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

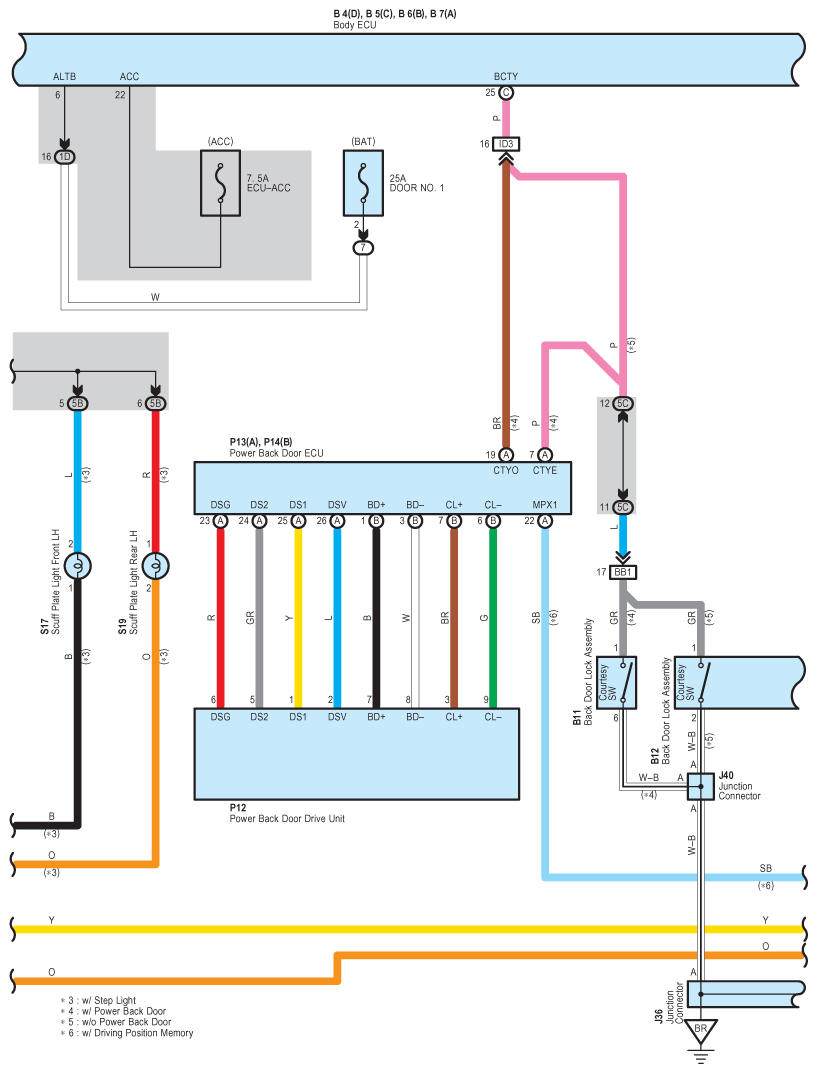

Fig 7: Wireless Door Lock Control - Wiring Diagram (7 Of 10)

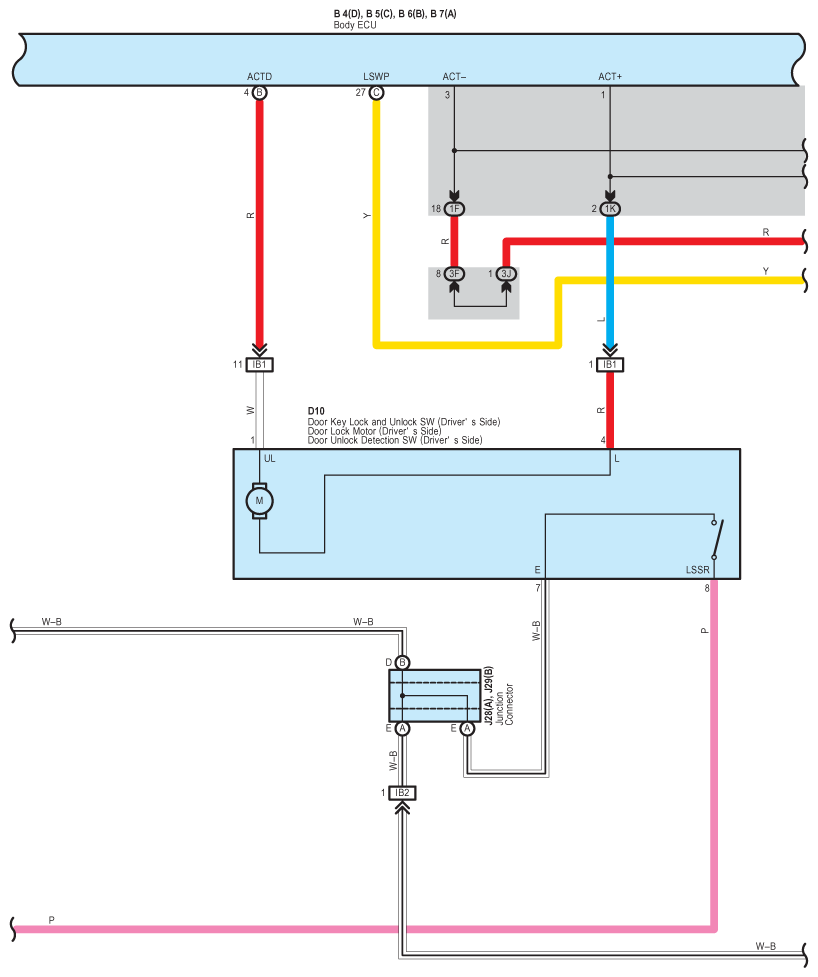

Fig 8: Wireless Door Lock Control - Wiring Diagram (8 Of 10)

Fig 9: Wireless Door Lock Control - Wiring Diagram (9 Of 10)

Fig 10: Wireless Door Lock Control - Wiring Diagram (10 Of 10)
