Vacuum Switching Valve: Components

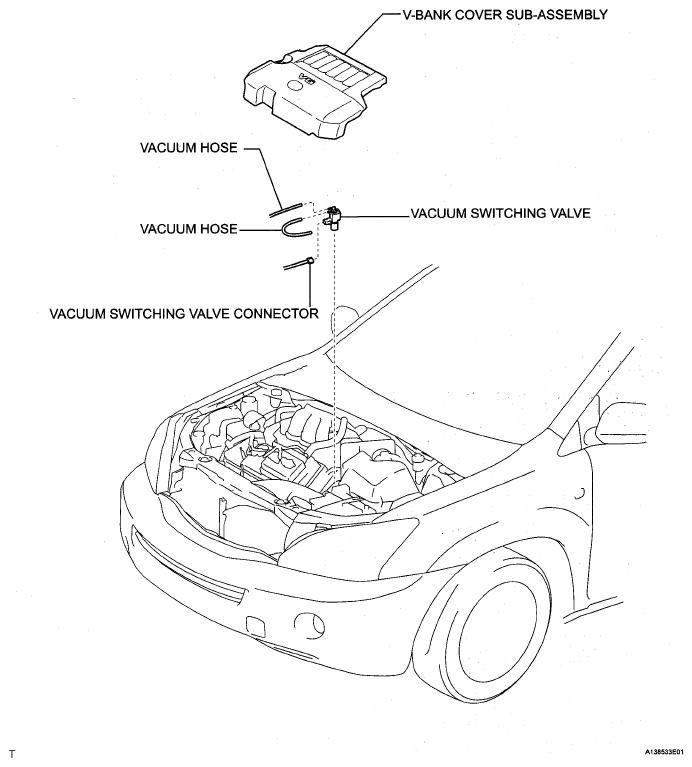

Fig 1: Identifying Vacuum Switching Valve Replacement Components
G05271698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
