Skid Control Buzzer Circuit: Wiring Diagram

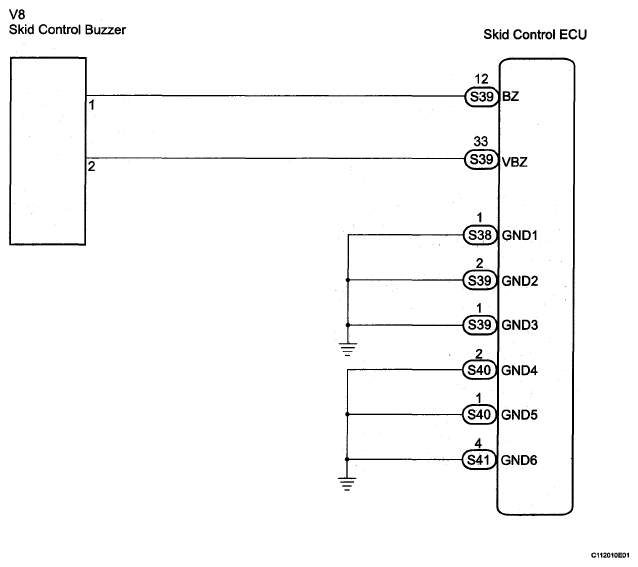

Fig 1: Skid Control Buzzer Circuit - Wiring Diagram
G05276930Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
