Inspection Procedure

NOTE: When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration (See INITIALIZATION ).
  1. INSPECT DLC3 (TC AND CG TERMINAL)
    1. Turn the ignition switch on.
    2. Measure the voltage according to the value(s) in the table below.

      Voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      D1-13 (TC) - Body ground Ignition switch on 10 to 14 V
    3. Measure the resistance according to the value(s) in the table below.
    Fig 1: Identifying DLC3 Connector Terminal
    G05276936Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    Resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    D1-4 (CG) - Body ground Below 1 Ω

    NG: GO TO step   3

    OK: Go to next step

  2. CHECK CAN COMMUNICATION SYSTEM
    1. Check if the CAN communication DTC is output (See DIAGNOSIS SYSTEM ).

    Result

    RESULT CHART

    Condition Proceed To
    DTC is not output A
    DTC is output B

    HINT:

    If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE ).

    B: REPAIR CIRCUIT INDICATED BY OUTPUT CODE

    A: Go to next step

  3. CHECK HARNESS AND CONNECTOR (DLC3 (TC) TO HV CONTROL ECU)
    1. Disconnect the HV control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART

      Tester Connection Specified Condition
      D1-13 (TC) - H29-3 (TC) Below 1 Ω
    3. Measure the resistance according to the value(s) in the table below.

    Resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    D1-13 (TC) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

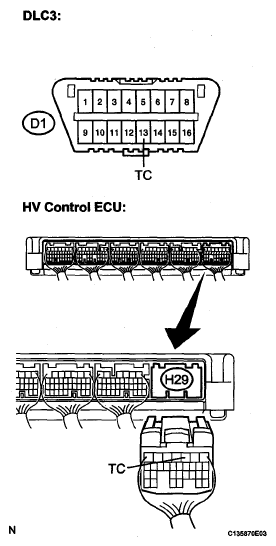

    Fig 2: Identifying HV Control ECU Connector And DLC3 Connector Terminal
    G05276937Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (DLC3 (CG) TO BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

    Resistance

    TESTER CONNECTION SPECIFIED CONDITION CHART

    Tester Connection Specified Condition
    D1-4 (CG) - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 3: Identifying DLC3 Connector Terminal
    G05276938Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    OK: Go to next step

  5. CHECK ECM (DLC3 (TC) INPUT)

    SST 09843-18040

    1. Using the SST, connect terminals TC and CG of the DLC3.
    2. Check that the engine warning light is blinking.

    Result

    RESULT CHART

    Condition Proceed To
    Engine warning light is blinking A
    Engine warning light is not blinking B

    B: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 4: Identifying DLC3 Connector Terminal
    G05276936Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    A: Go to next step

  6. CHECK CAN COMMUNICATION SYSTEM
    1. Check if the CAN communication DTC is output (See DIAGNOSIS SYSTEM ).

    Result

    RESULT CHART

    Condition Proceed To
    DTC is not output A
    DTC is output B

    HINT:

    If troubleshooting has been carried out according to the PROBLEM SYMPTOMS TABLE, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE ).

    B: REPAIR CIRCUIT INDICATED BY OUTPUT CODE

    A: REPLACE SKID CONTROL ECU
