Power Point Socket: Installation

  1. INSTALL POWER POINT SOCKET COVER
    1. Engage the 2 claws and install the power point socket cover.
    Fig 1: Identifying Power Point Socket Cover Claws
    G05274217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL POWER POINT SOCKET
    1. Place the power point socket with the notch on the power point socket cover, and push in the power point socket as hard as possible to install it.
  3. INSTALL CONSOLE COVER LOWER
  4. INSTALL REAR CONSOLE BOX  (See INSTALLATION )
  5. INSTALL NO.2 CONSOLE BOX HOLE COVER  (See INSTALLATION )
  6. INSTALL CONSOLE BOX HOLE COVER  (See INSTALLATION )

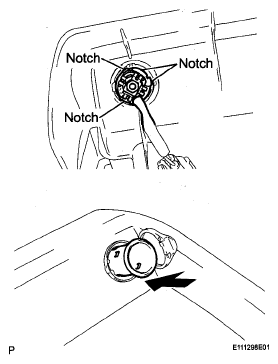

    Fig 2: Installing Power Point Socket
    G05274219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
