Rear Power Point Socket: Components

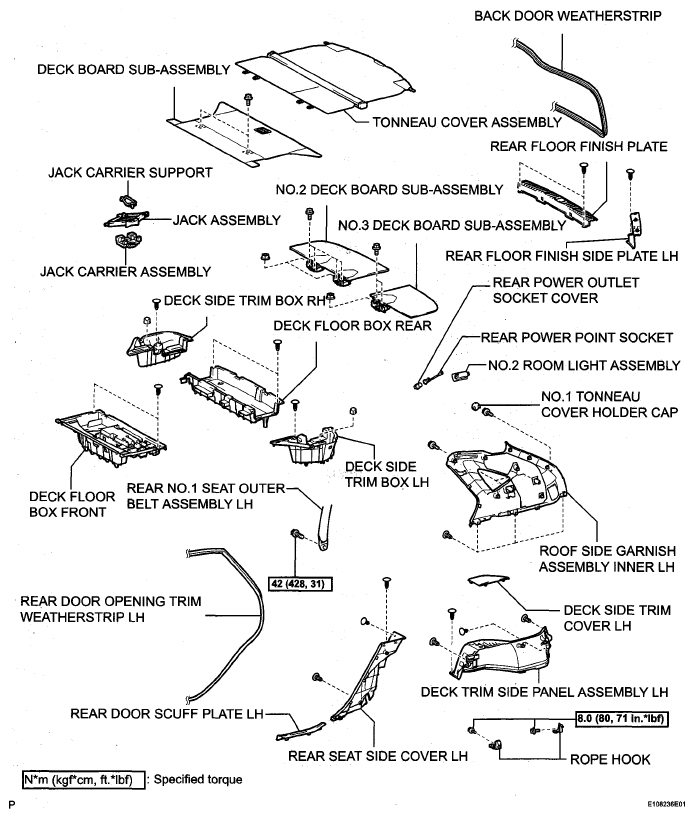

Fig 1: Rear Power Point Socket Replacement Components With Torque Specifications
G05274223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
