Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

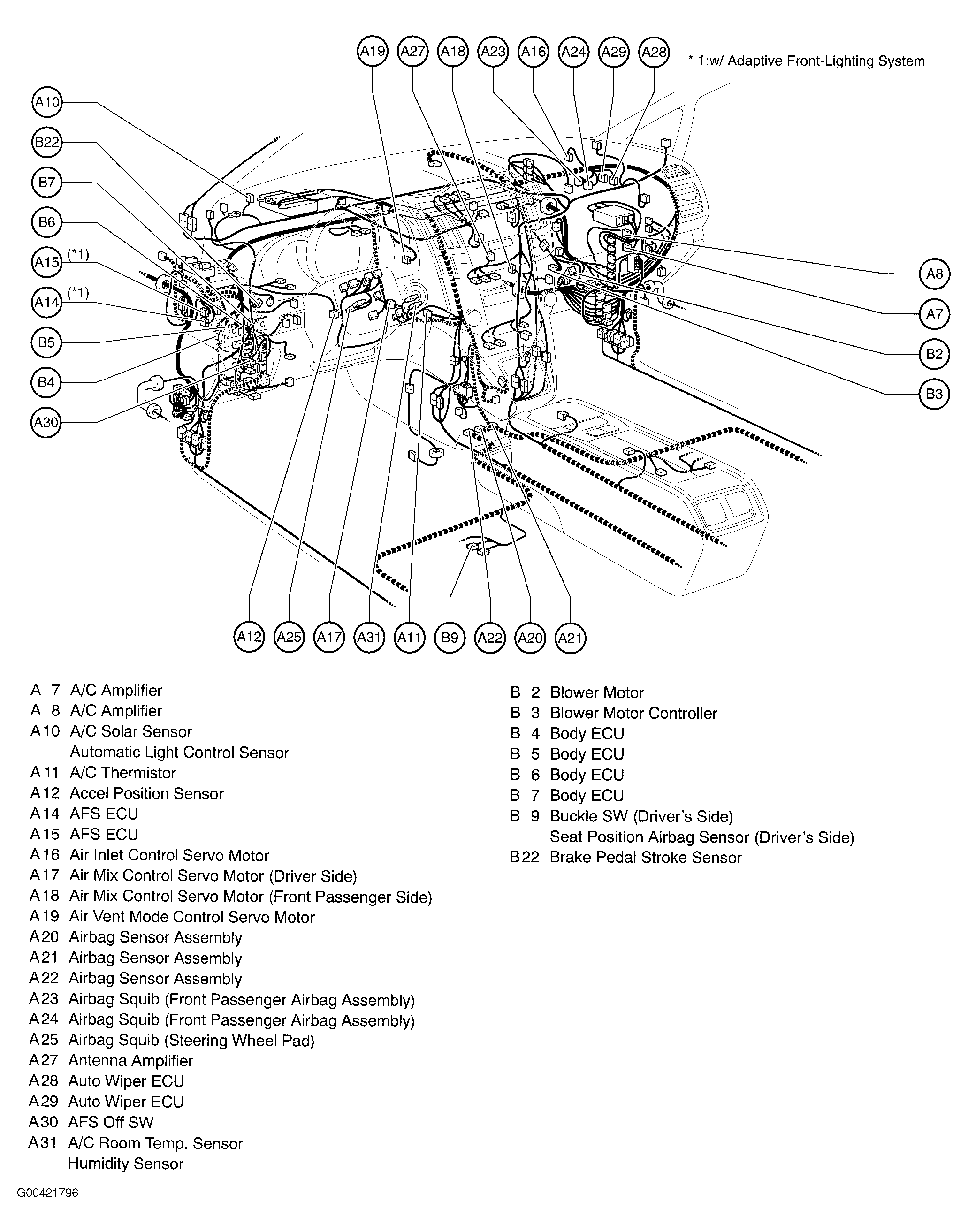

| AFS ECU | Left side of dash. See Figure. |
| Auto Wiper ECU | Top right side of dash. See Figure. |
| Blower Motor Controller | Right side of dash. See Figure. |
| Body ECU | Behind left side of dash. See Figure. |
| Cooling Fan ECU (LH) | Left front of engine compartment. See Figure. |
| Cooling Fan ECU (RH) | Right front of engine compartment. See Figure. |

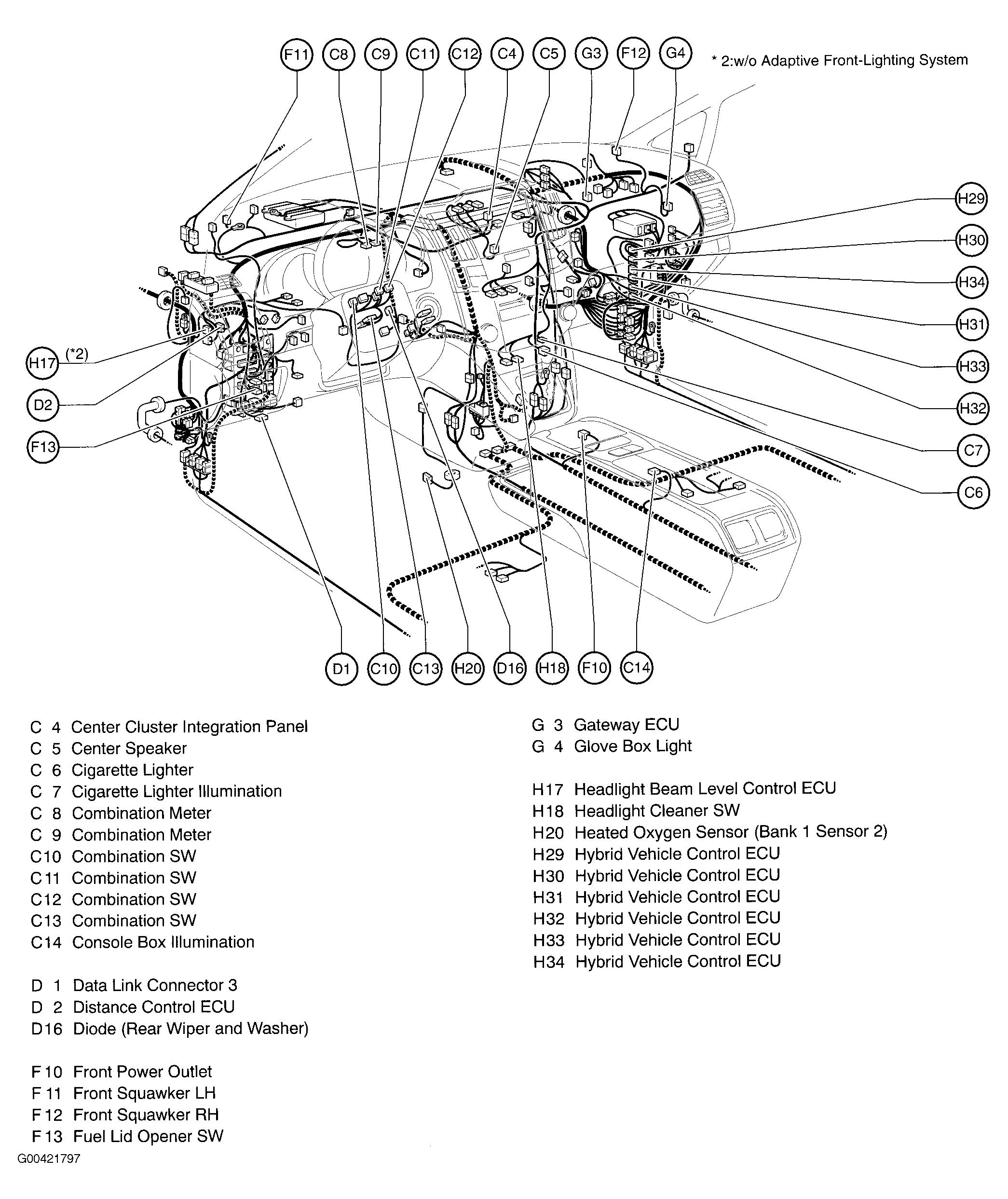

| Distance Control ECU | Left side of dash. See Figure. |

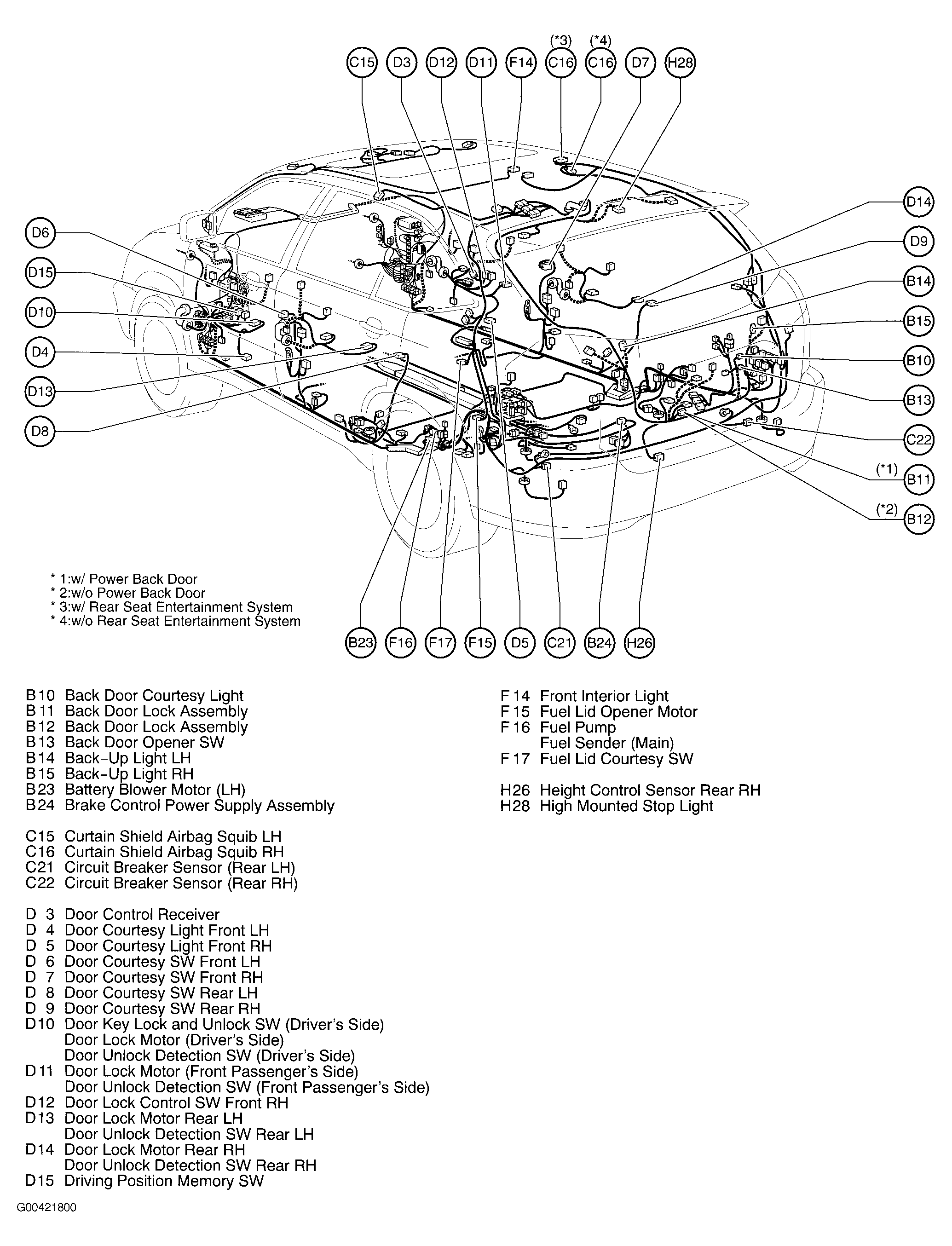

| Door Control Receiver | Top of left "D" pillar. See Figure. |
| Gateway ECU | Right side of dash. See Figure. |
| Headlight Beam Level Control ECU | Behind left end of dash. See Figure. |
| Hybrid Vehicle Control ECU | Right side of dash. See Figure. |

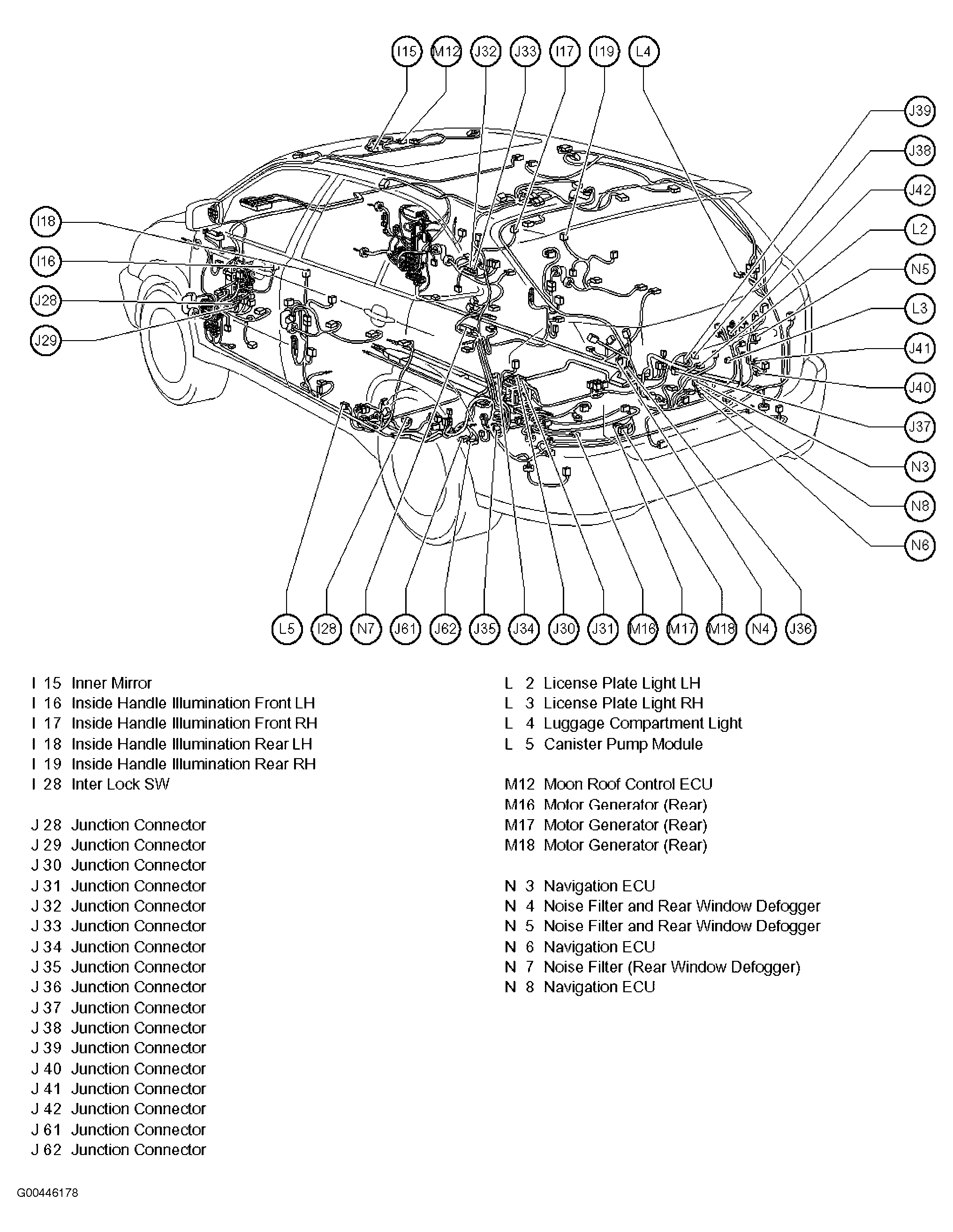

| Moon Roof Control ECU | Front center of roof. See Figure. |
| Navigation ECU | At rear of cargo area. See Figure. |

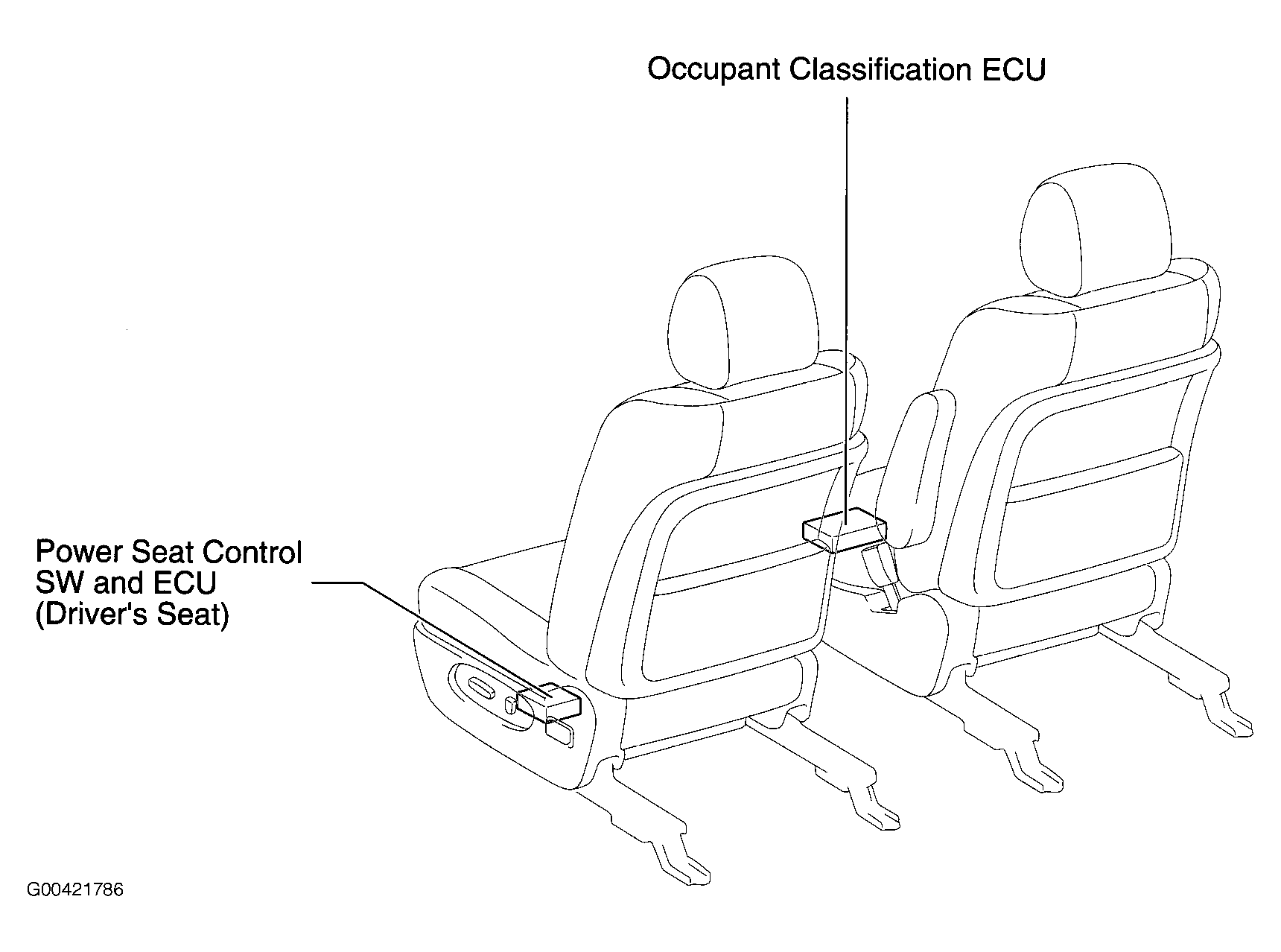

| Occupant Classification ECU | At right front seat. See Figure. |
| Power Back Door Drive Unit | Right side of dash. See Figure. |

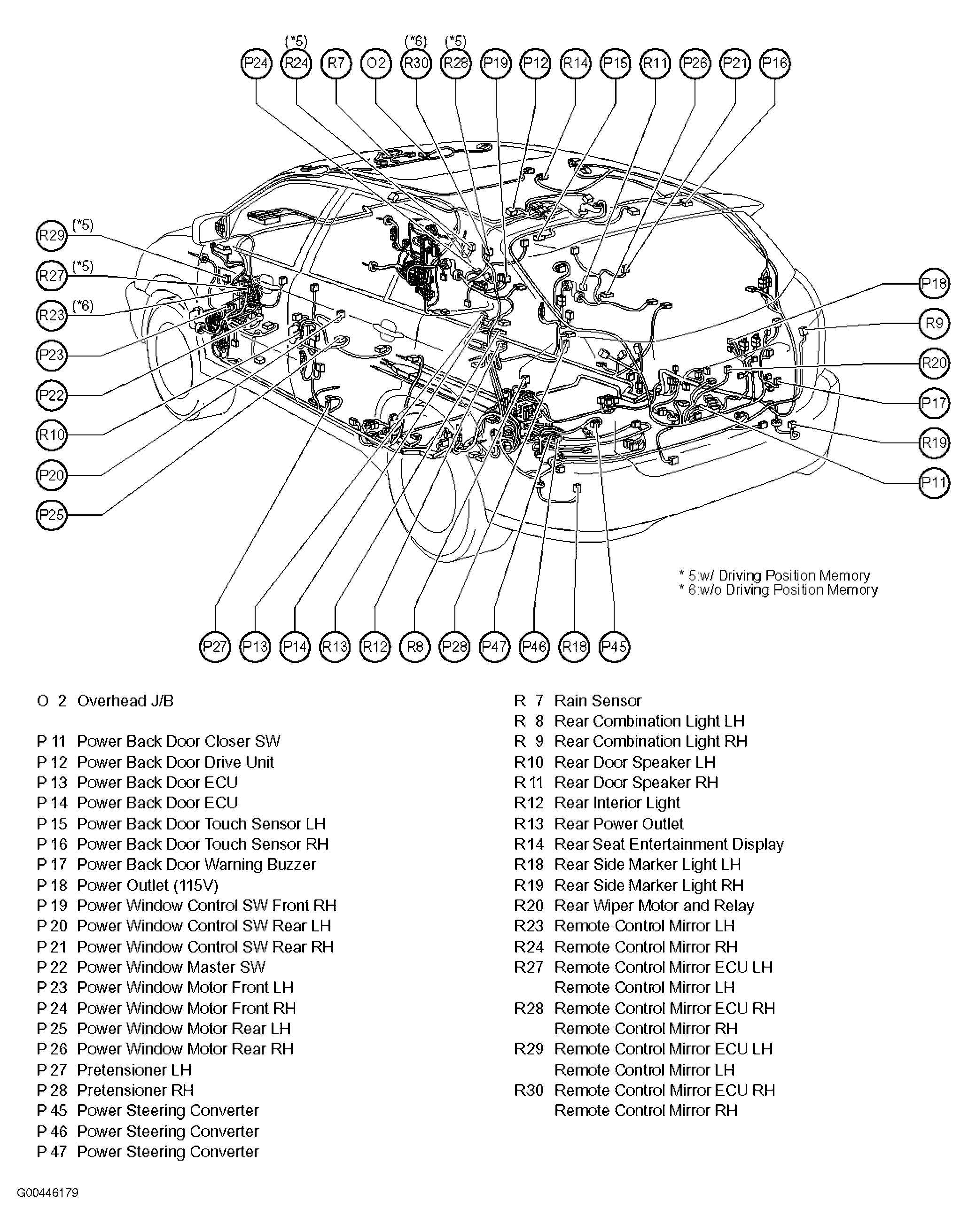

| Power Back Door ECU | Center of left "D" pillar. See Figure. |

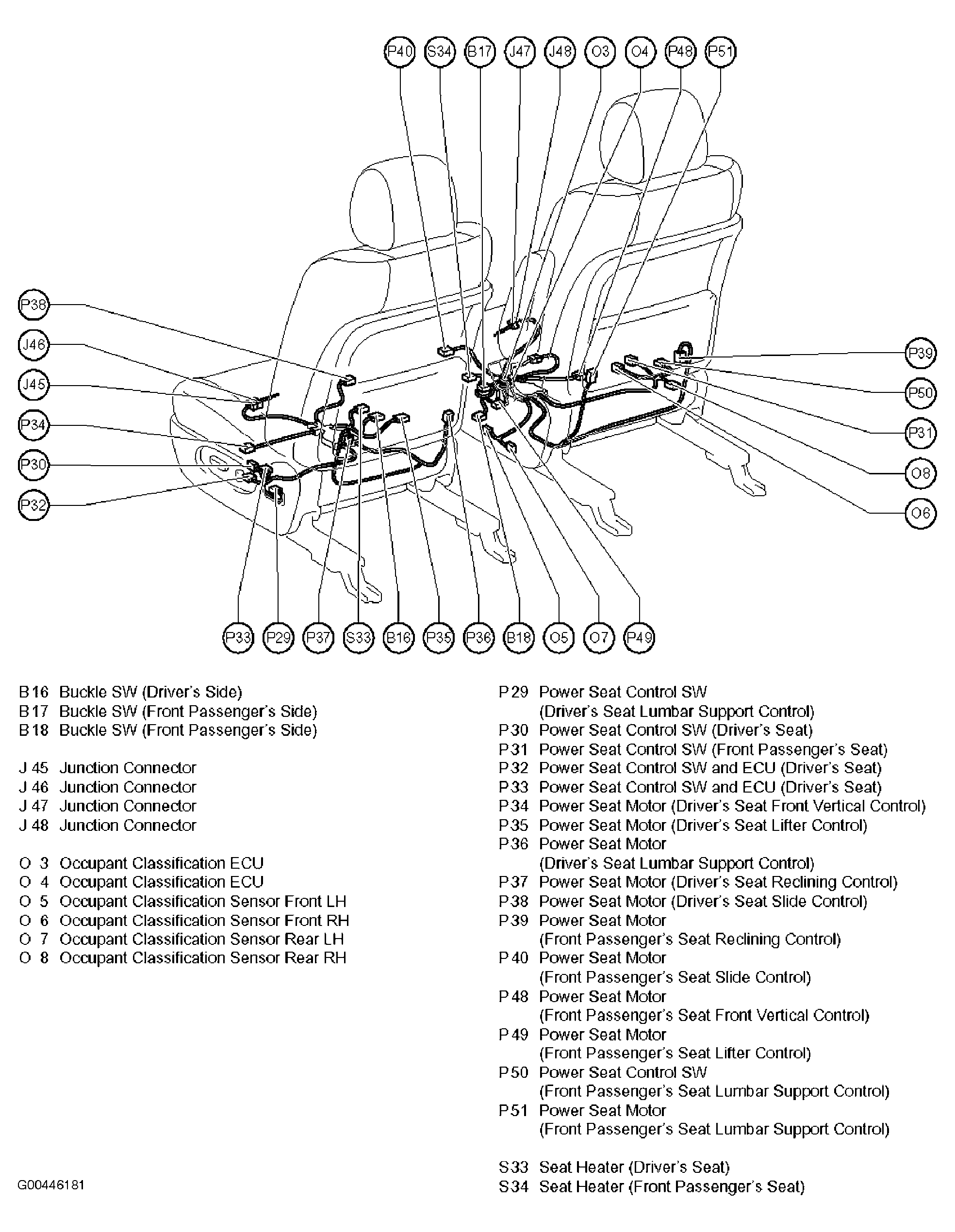

| Power Seat ECU (Driver's Seat) | Under driver's seat. See Figure. |

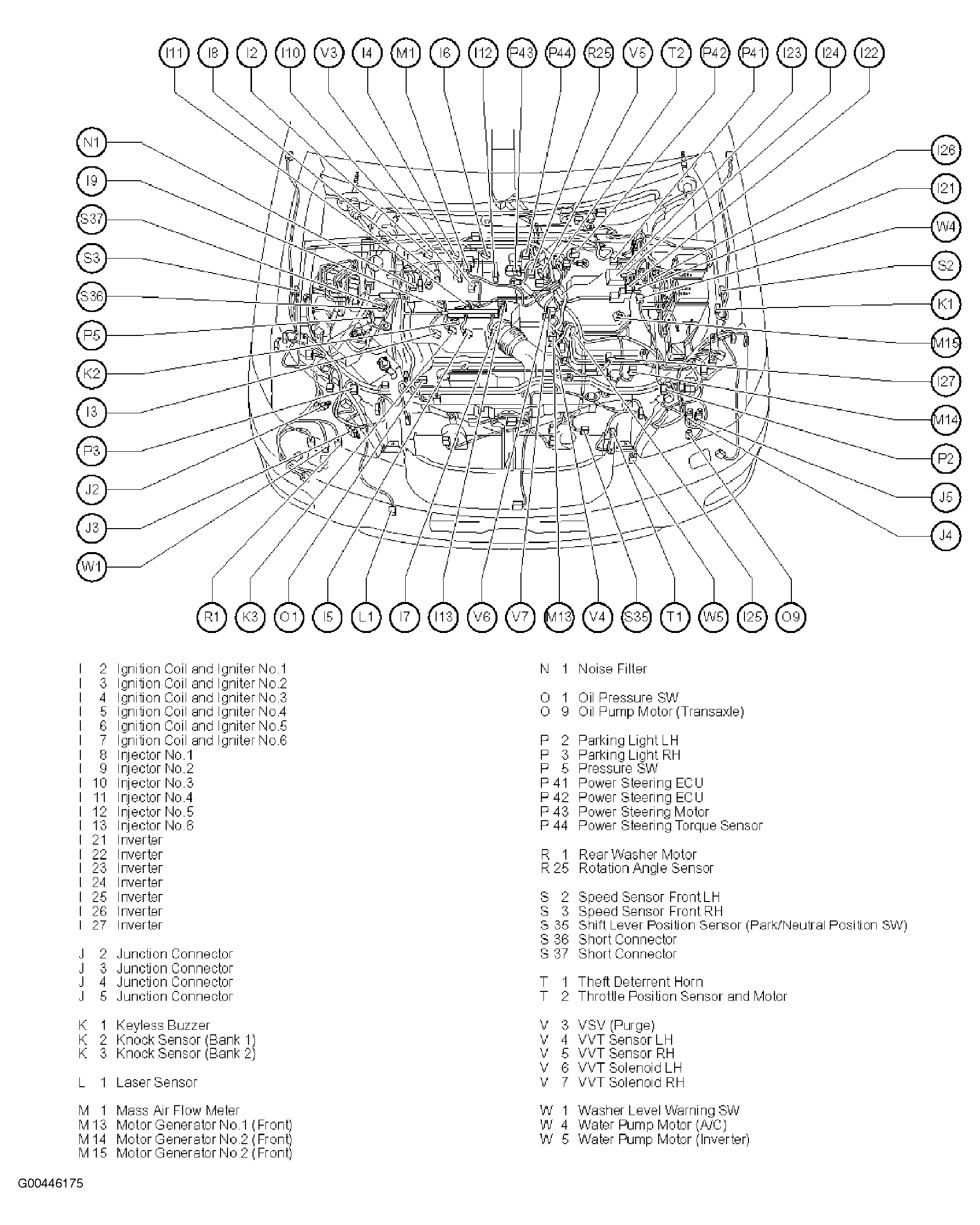

| Power Steering ECU | Left rear of engine compartment. See Figure. |
| Remote Control Mirror ECU LH | In left front door. See Figure. |
| Remote Control Mirror ECU RH | In right front door. See Figure. |

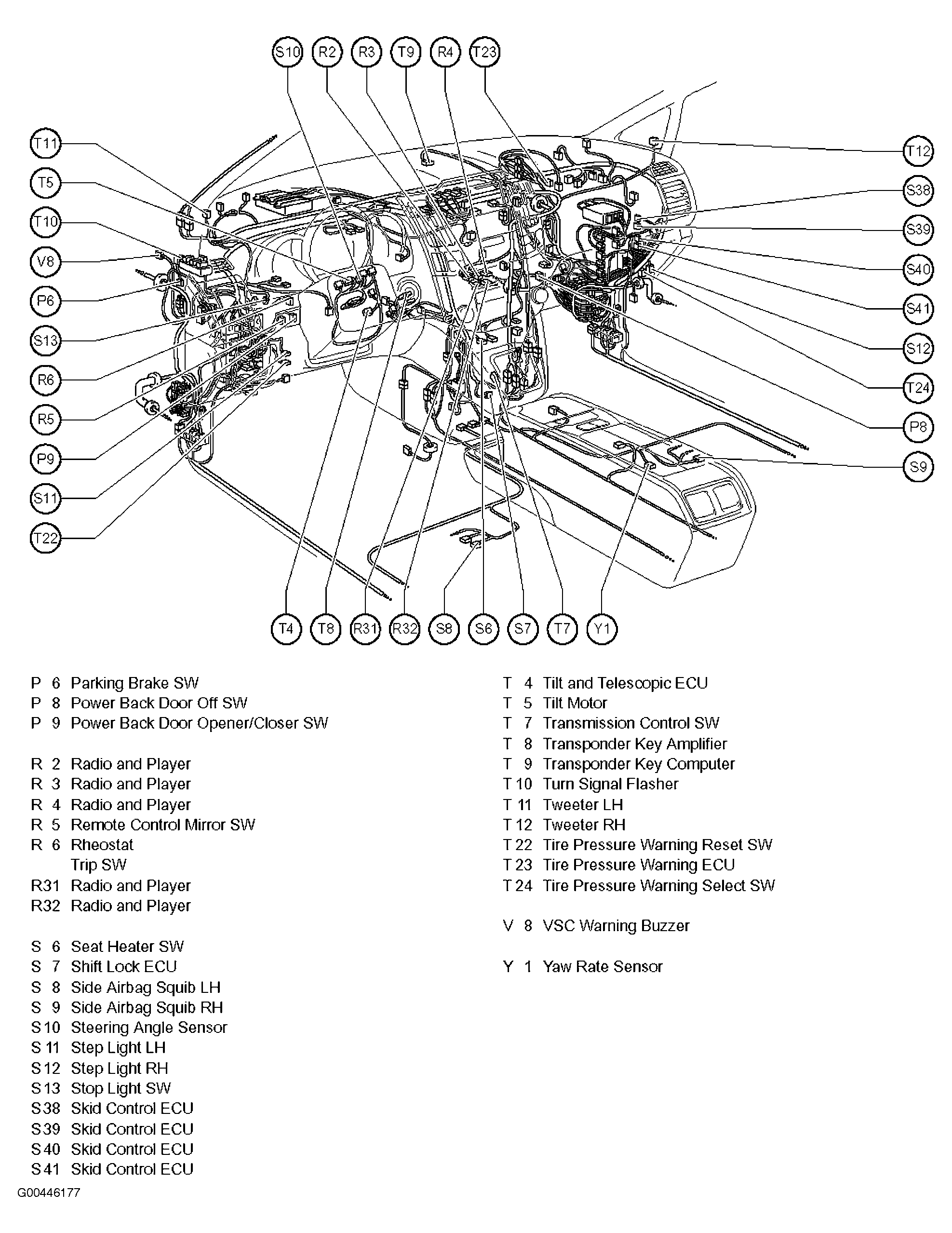

| Shift Lock ECU | Under center console, beside shift lever. See Figure. |
| Skid Control ECU | Right side of dash. See Figure. |
| Tilt & Telescopic ECU | At base of steering column. See Figure. |
| Tire Pressure Warning ECU | Behind right side of dash. See Figure. |
| Transponder Key Computer | Center of dash. See Figure. |
