Inspection Procedure

HINT:

• If no problem is found by this diagnostic troubleshoot procedure, troubleshoot the engine mechanical system.
• Check the engine speed. The engine speed can be checked by using the intelligent tester. To check, follow the operation below:
  1. Connect the intelligent tester to the DLC3.
  2. Put the engine in inspection mode (See INSPECTION MODE PROCEDURE ).
  3. Start the engine.
  4. Turn the tester ON.
  5. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / ENGINE SPD.

  The engine speed may be indicated as zero despite the engine revolving normally. This is caused by a lack of NE signals from the crankshaft position (CKP) sensor. Alternatively, the engine speed may be indicated as lower than the actual engine speed, if the CKP sensor output voltage is insufficient.

• Read freeze frame data using the intelligent tester. The ECM (Included in HV control ECU) records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was LEAN or RICH, and other data from the time the malfunction occurred.

1. INSPECT CRANKSHAFT POSITION SENSOR
   1. Disconnect the C3 crankshaft position (CKP) sensor connector.
   2. Measure the resistance between terminals 1 and 2.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection	Specified Condition
      1 - 2	1,850 to 2,450 Ω at 20°C (68°F)

   3. Reconnect the CKP sensor connector.

   NG: REPLACE CRANKSHAFT POSITION SENSOR

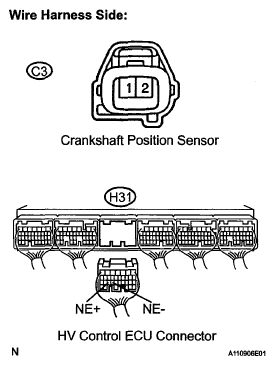

   Fig 1: Identifying C3 Crankshaft Position Sensor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Go to next step

2. CHECK HARNESS AND CONNECTOR (CRANKSHAFT POSITION SENSOR - HV CONTROL ECU)
   1. Disconnect the C3 CKP sensor connector.
   2. Disconnect the H31 HV control ECU connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection	Specified Condition
      C3-1 - NE+ (H31-25)	Below 1 Ω
      C3-2-NE- (H31-24)	Below 1 Ω

      Standard resistance (Check for short)

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connection	Specified Condition
      C3-1 or NE+ (H31-25) - Body ground	10 kΩ or higher
      C3-2 or NE- (H31-24) - Body ground	10 kΩ or higher

   4. Reconnect the HV control ECU connector.
   5. Reconnect the CKP sensor connector.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   Fig 2: Identifying C3 Crankshaft Position Sensor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Go to next step

3. CHECK SENSOR INSTALLATION (CRANKSHAFT POSITION SENSOR)
   1. Check the CKP sensor installation.

      OK: Sensor is installed correctly.

   NG: TIGHTEN SENSOR

   Fig 3: Identifying Installation Position Of Camshaft Position Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Go to next step

4. CHECK CRANKSHAFT POSITION SENSOR PLATE (TEETH OF SENSOR PLATE)
   1. Check the teeth of the sensor plate.

      OK: Sensor plate does not have any crack or deformation.

   NG: REPLACE CRANKSHAFT POSITION SENSOR PLATE

   OK: REPLACE HV CONTROL ECU
