Fuel Injector: Components

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 4)
G05275774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 4)
G05276390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Fuel Injector Replacement Components With Torque Specifications (3 Of 4)
G05200401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

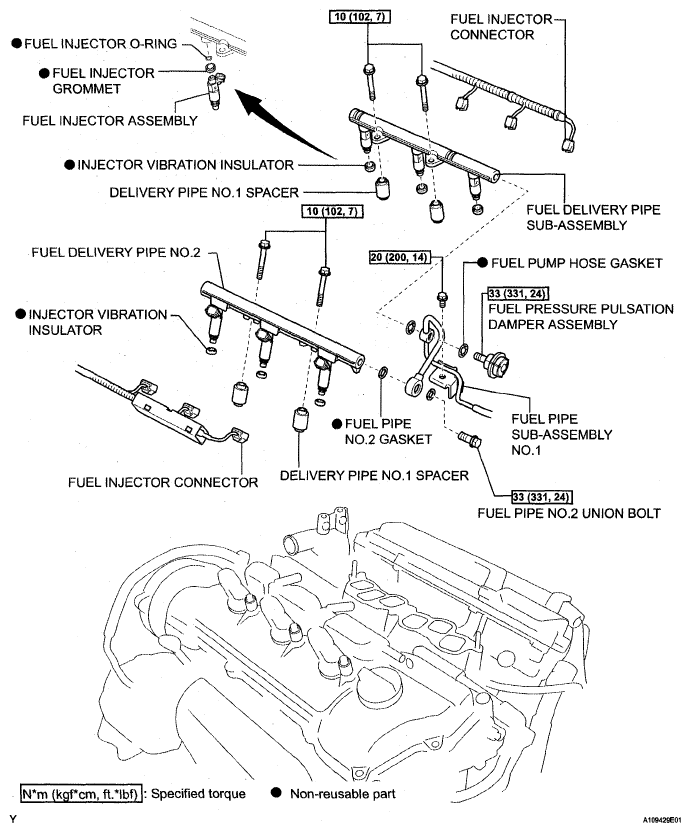

Fig 4: Fuel Injector Replacement Components With Torque Specifications (4 Of 4)
G05200843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
