Steering Column Assembly: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STEERING COLUMN ASSEMBLY

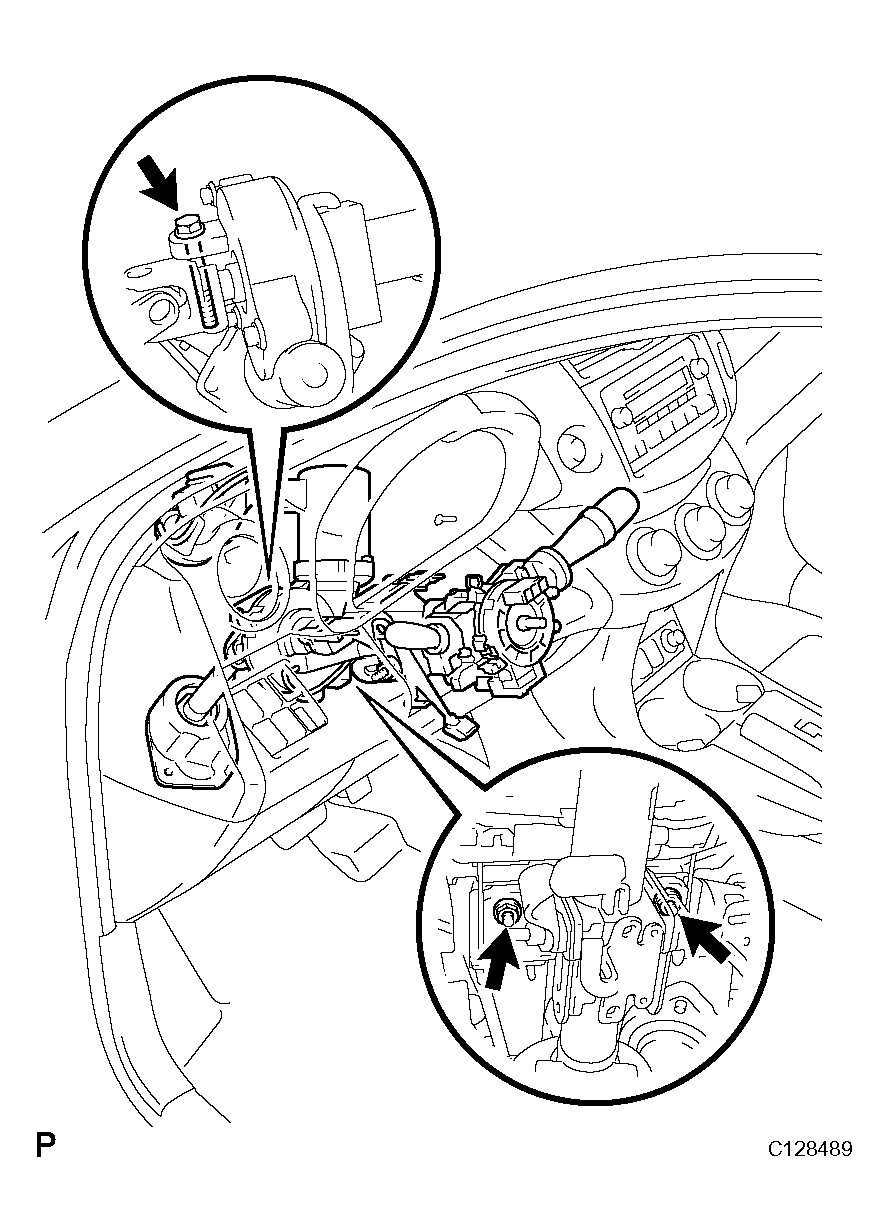

1. Install the steering column onto the instrument panel reinforcement with the 3 bolts.
  Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)
2. Connect all the connectors and clamp the wire harnesses onto the steering column bracket.
INSTALL BRAKE PEDAL SUPPORT ASSEMBLY
1. Install the brake pedal support (see REASSEMBLY ).

  Fig 1: Installing Brake Pedal Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

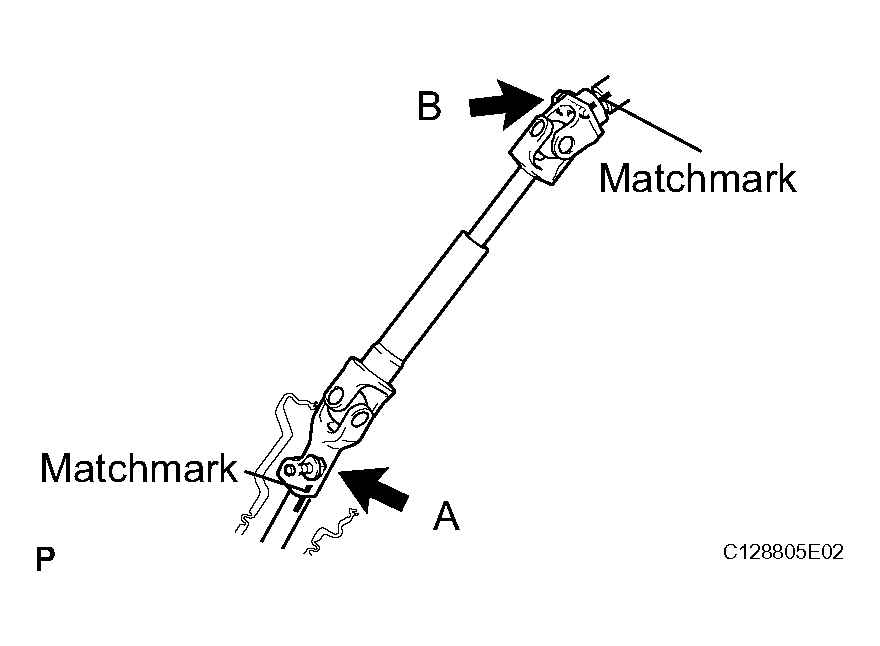

1. Align the matchmarks on steering intermediate shaft and the steering sliding yoke and temporarily install them with bolt B. (See Fig 2).
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)
2. Align the matchmarks on the steering sliding yoke and steering gear and install them with bolt A.
  Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  Fig 2: Aligning Matchmarks On Steering Intermediate Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

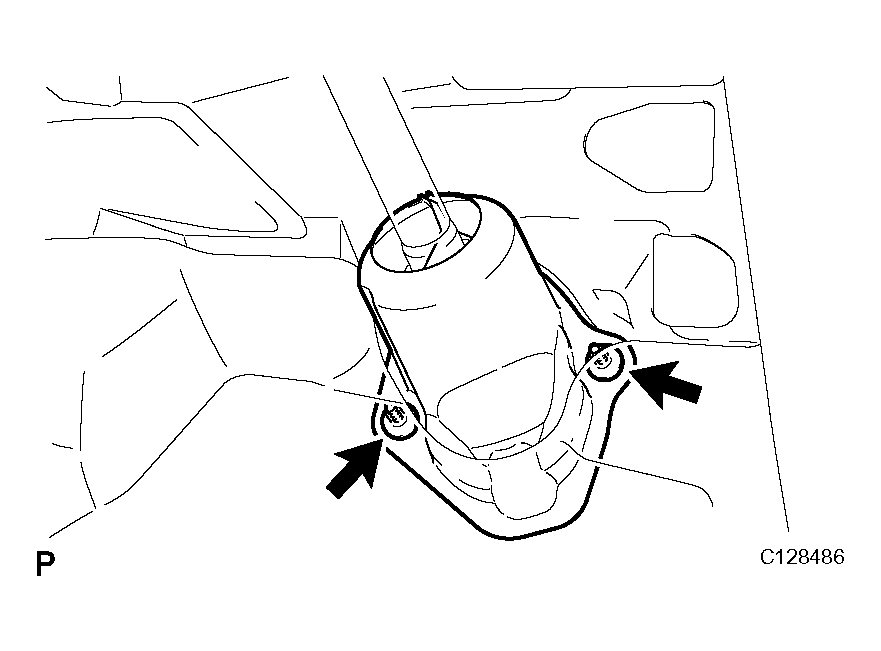

INSTALL COLUMN HOLE COVER SILENCER SHEET
1. Install the column hole cover plate with the 2 clips.
2. Install the floor carpet.
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL (See INSTALLATION )

Fig 3: Installing Column Hole Cover Silencer Sheet
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

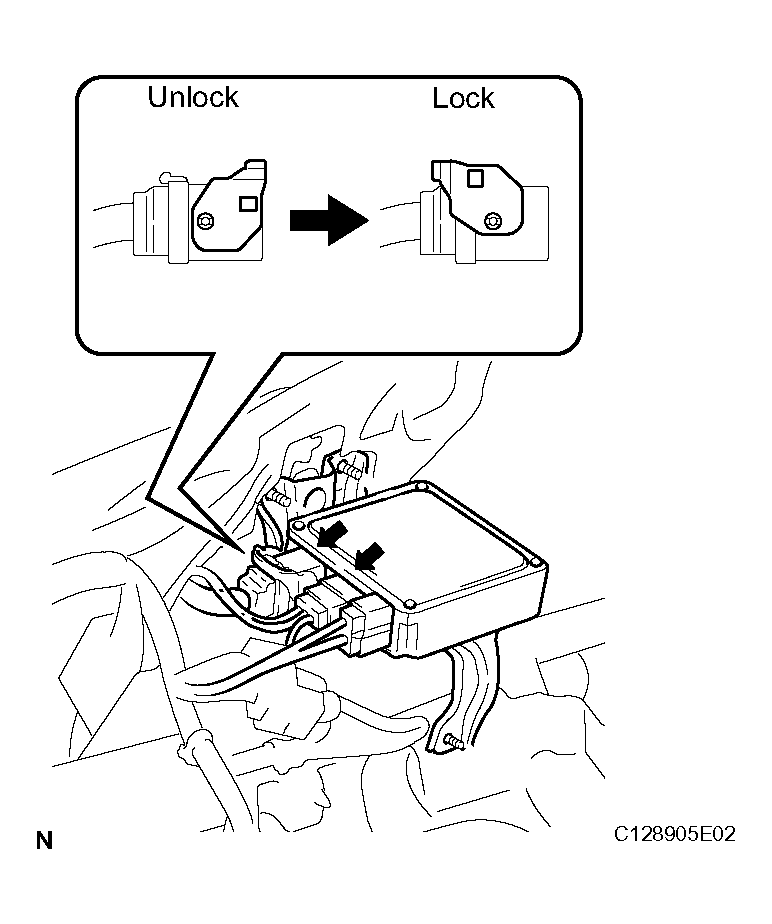

CONNECT POWER STEERING ECU
1. Connect the 2 steering column connectors to the power steering ECU.

  Fig 4: Connecting Power Steering ECU
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the power steering motor wire harness and torque sensor wire harness clamps onto the side of the power steering ECU.
3. Tilt the steering column assembly up and down to make sure that the power steering motor wire harness and torque sensor wire harness do not interfere with any components.
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
1. Install the instrument panel (see REASSEMBLY ).
INSTALL COMBINATION SWITCH ASSEMBLY

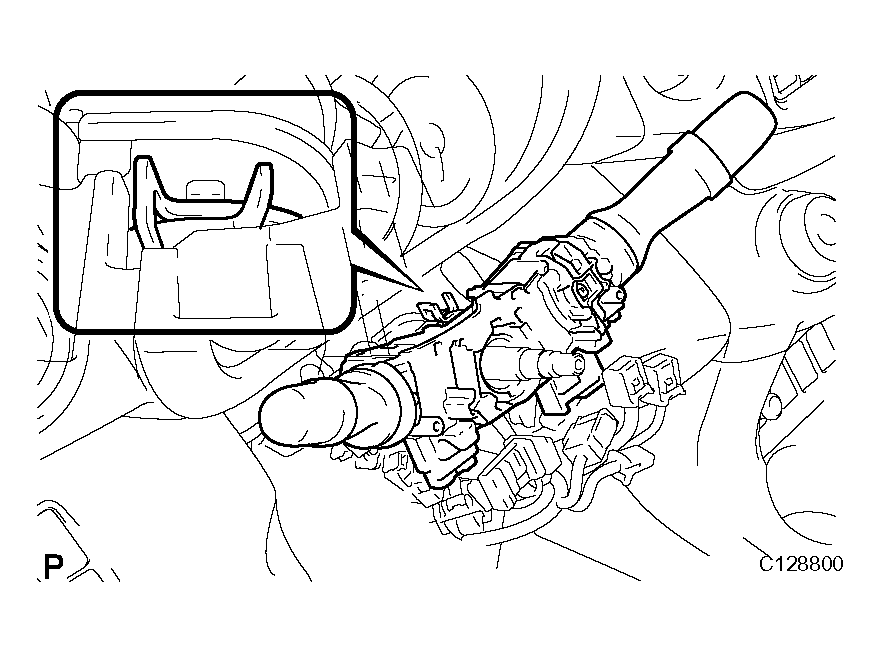

1. Install the turn signal switch onto the steering column with the clamp.

  Fig 5: Installing Turn Signal Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPIRAL CABLE SUB-ASSEMBLY

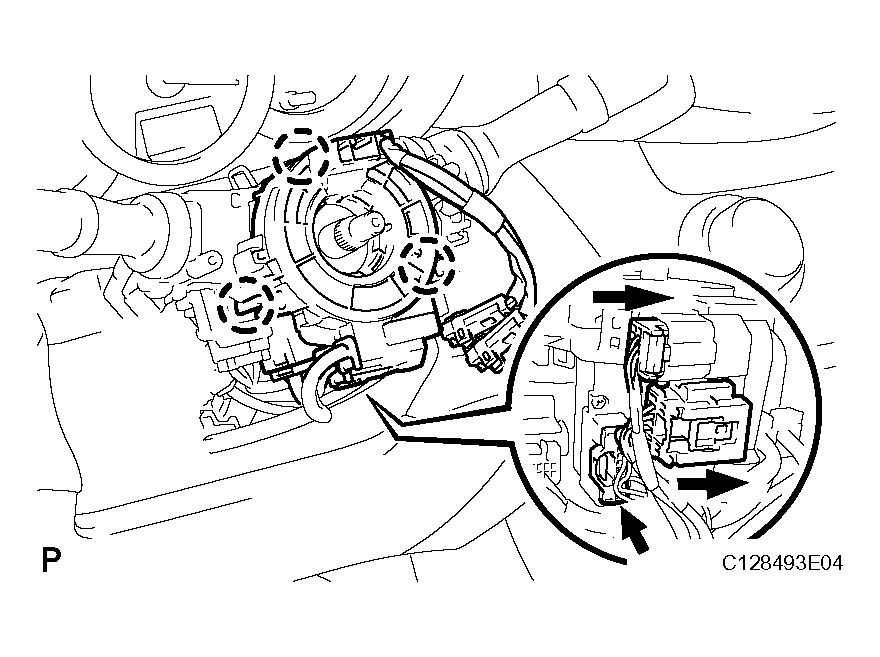

1. Install the spiral cable onto the turn signal switch.

  Fig 6: Installing Spiral Cable Onto Turn Signal Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect all the connectors to the turn signal switch with spiral cable.
INSTALL STEERING COLUMN COVER

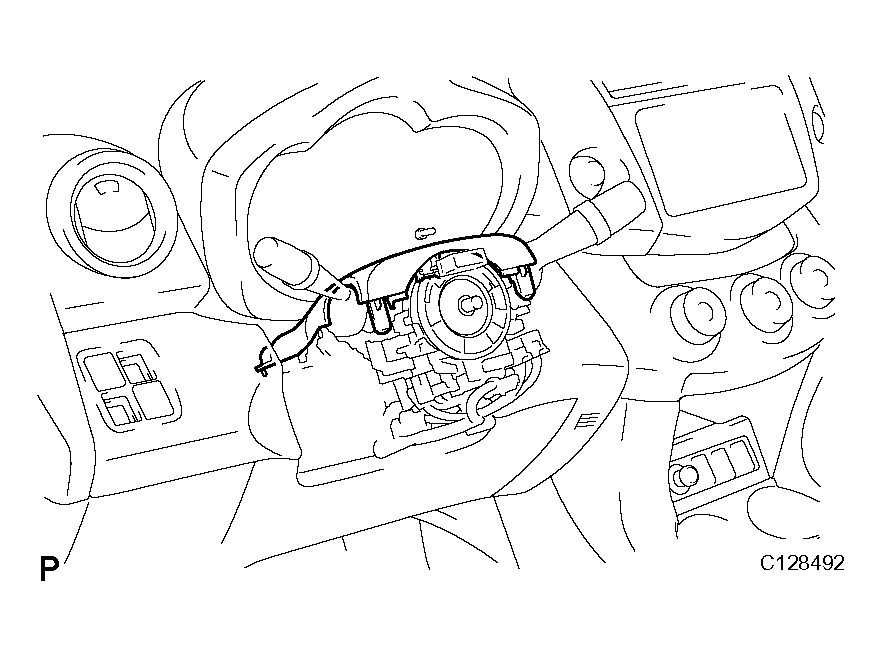

1. Attach the claw to install the upper steering column cover.

  Fig 7: Installing Upper Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

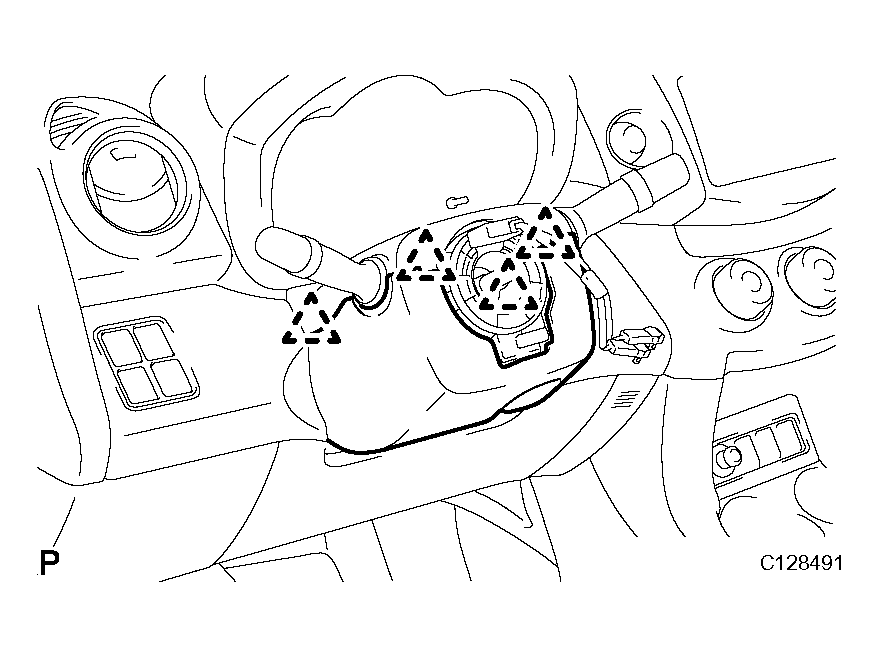

2. Attach the 4 claws to install the lower steering column cover.

  Fig 8: Installing Lower Steering Column Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING WHEEL ASSEMBLY
1. Align the matchmarks and install the steering wheel onto the steering column.
2. Install the nut.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)
3. Connect all the connectors to the spiral cable.
INSTALL STEERING PAD (See INSTALLATION )
POSITION FRONT WHEELS FACING STRAIGHT AHEAD

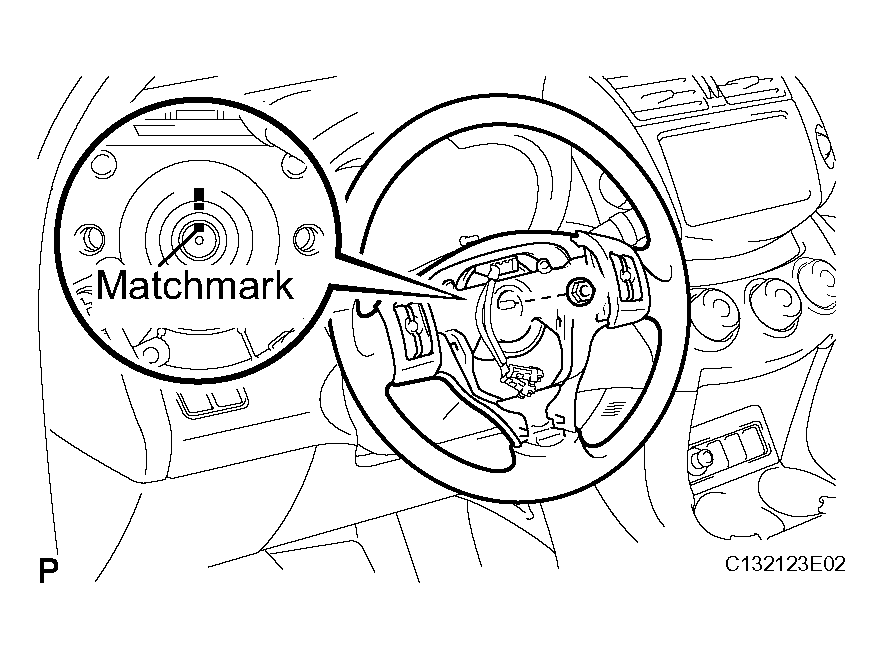

Fig 9: Installing Steering Wheel Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light (see DTC CHECK / CLEAR ).
