Camshaft Timing Oil Control Valve Assembly: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

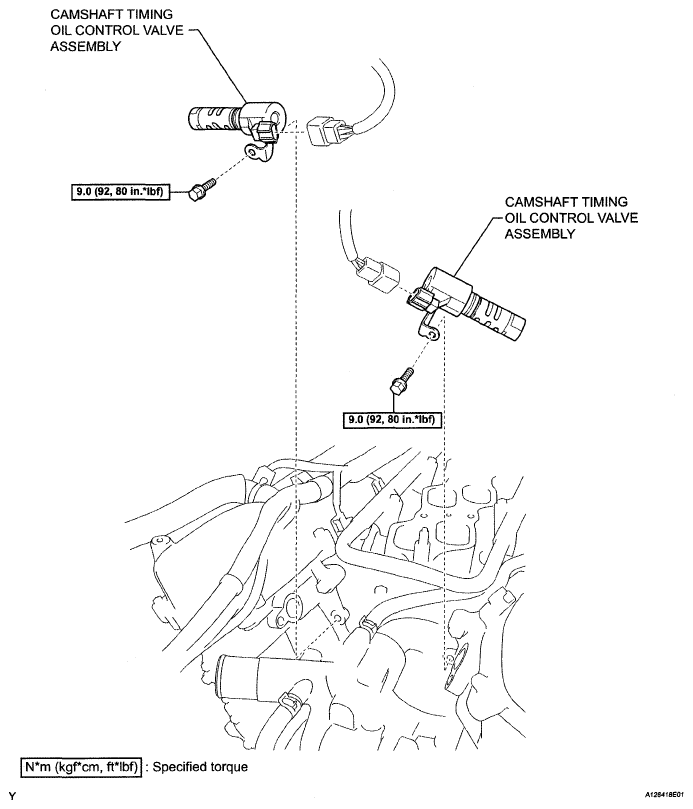

Fig 2: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (2 Of 3)

Fig 3: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (3 Of 3)
