Engine Coolant Temperature Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Camshaft Replacement Components With Torque Specifications (1 Of 5)
G05108950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Camshaft Timing Oil Control Valve Assembly Replacement Components With Torque Specifications (2 Of 3)
G05108951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

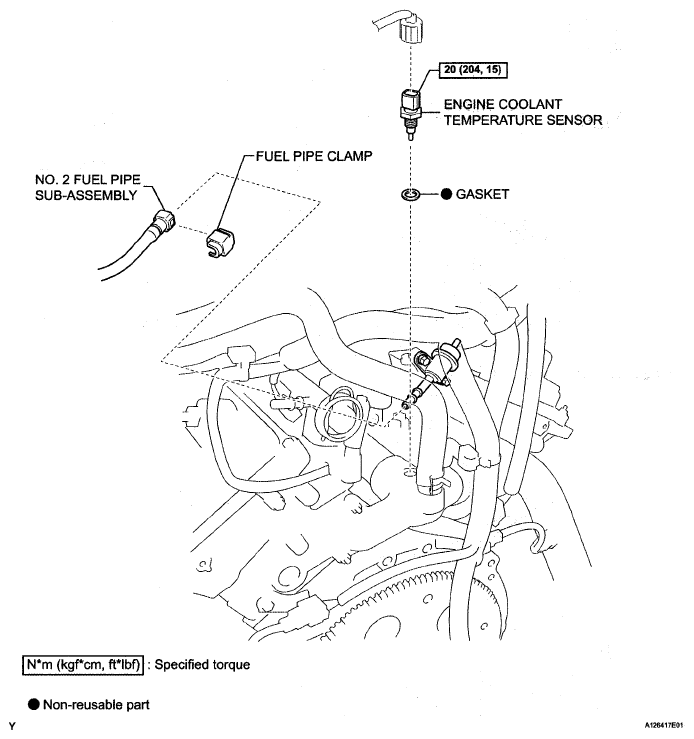

Fig 3: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (3 Of 3)
G05108975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
