Throttle Body: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

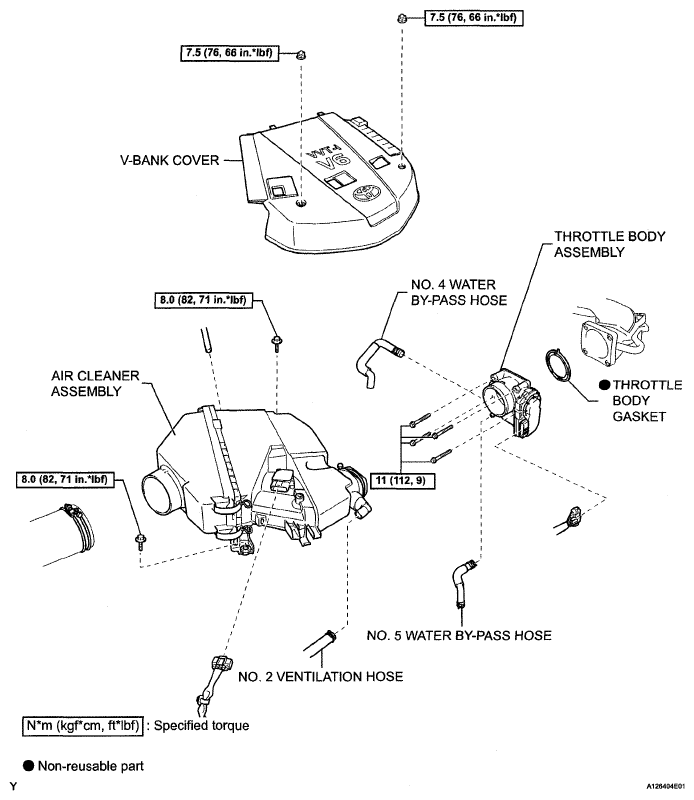

Fig 1: Throttle Body Replacement Components With Torque Specifications
G05108979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
