System Diagram

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

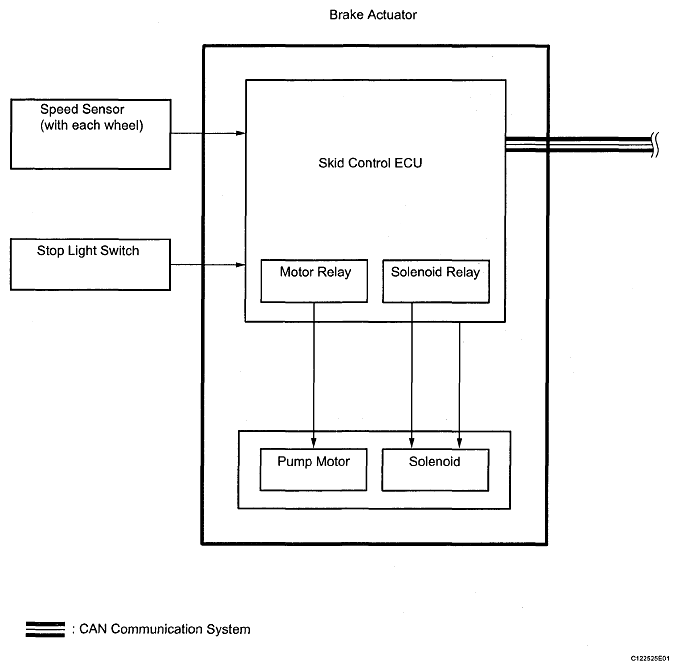

Fig 1: Anti-Lock Brake System Diagram (1 Of 2)
G04832145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

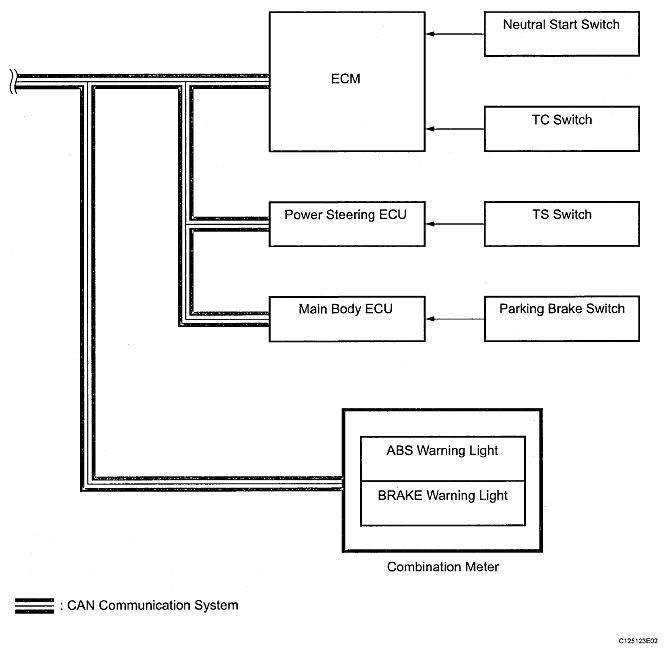

Fig 2: Anti-Lock Brake System Diagram (2 Of 2)
G04832146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
