Front Speed Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

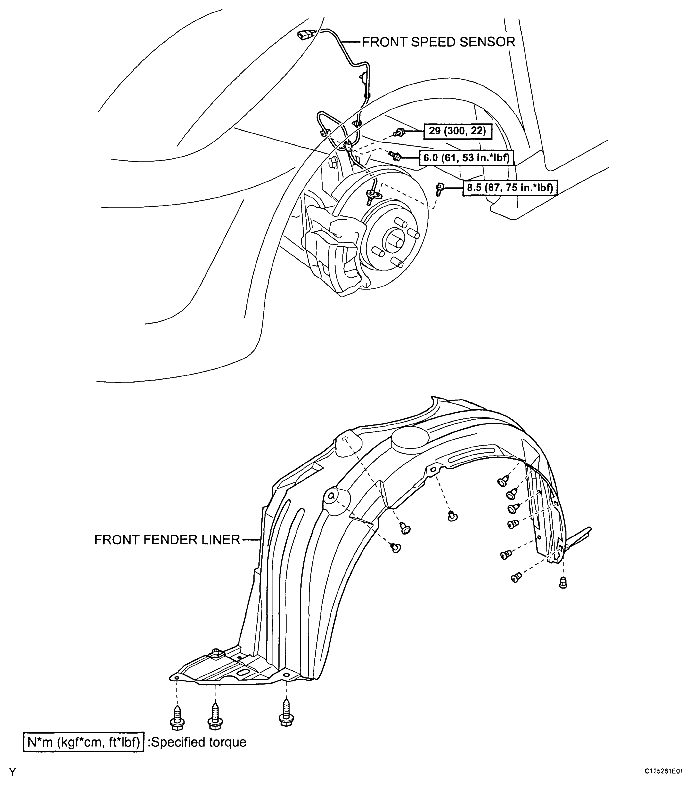

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications
G04832243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
