Skid Control Sensor: Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE REAR WHEEL
  3. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY  (See REMOVAL )
  4. DISCONNECT SKID CONTROL SENSOR WIRE  (See REMOVAL )
  5. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY  (See REMOVAL )
  6. REMOVE SKID CONTROL SENSOR
    1. Install the 4 hub nuts and the 4 hub bolts onto the rear axle hub, and then fix the rear axle hub in a vice between aluminum plates.
      NOTE: If the skid control sensor is dropped or heavily damaged, replace the rear axle hub and bearing.
    2. Using a 3 mm pin punch and hammer, remove the 2 pins from SST (09520-00031) and remove the attachment (09521-00010).
    3. Using SST and the 2 bolts (90101-12007), remove the skid control sensor from the rear axle hub.

      SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

      NOTE:
      • Pull the skid control sensor off straight, being careful not to make contact with the skid control sensor rotor.
      • If the skid control sensor rotor is damaged or deformed, replace the rear axle hub and bearing.
      • Do not damage the skid control sensor or rear axle hub contact surfaces.
      • Keep the sensor rotor free of foreign matter.

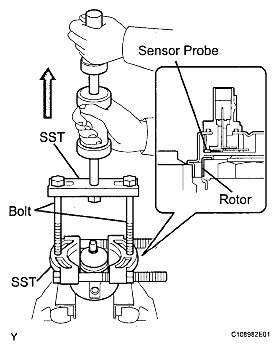

        Fig 1: Identifying Skid Control Sensor
        G04832247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
