Accelerator Pedal Position Sensor: Components

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

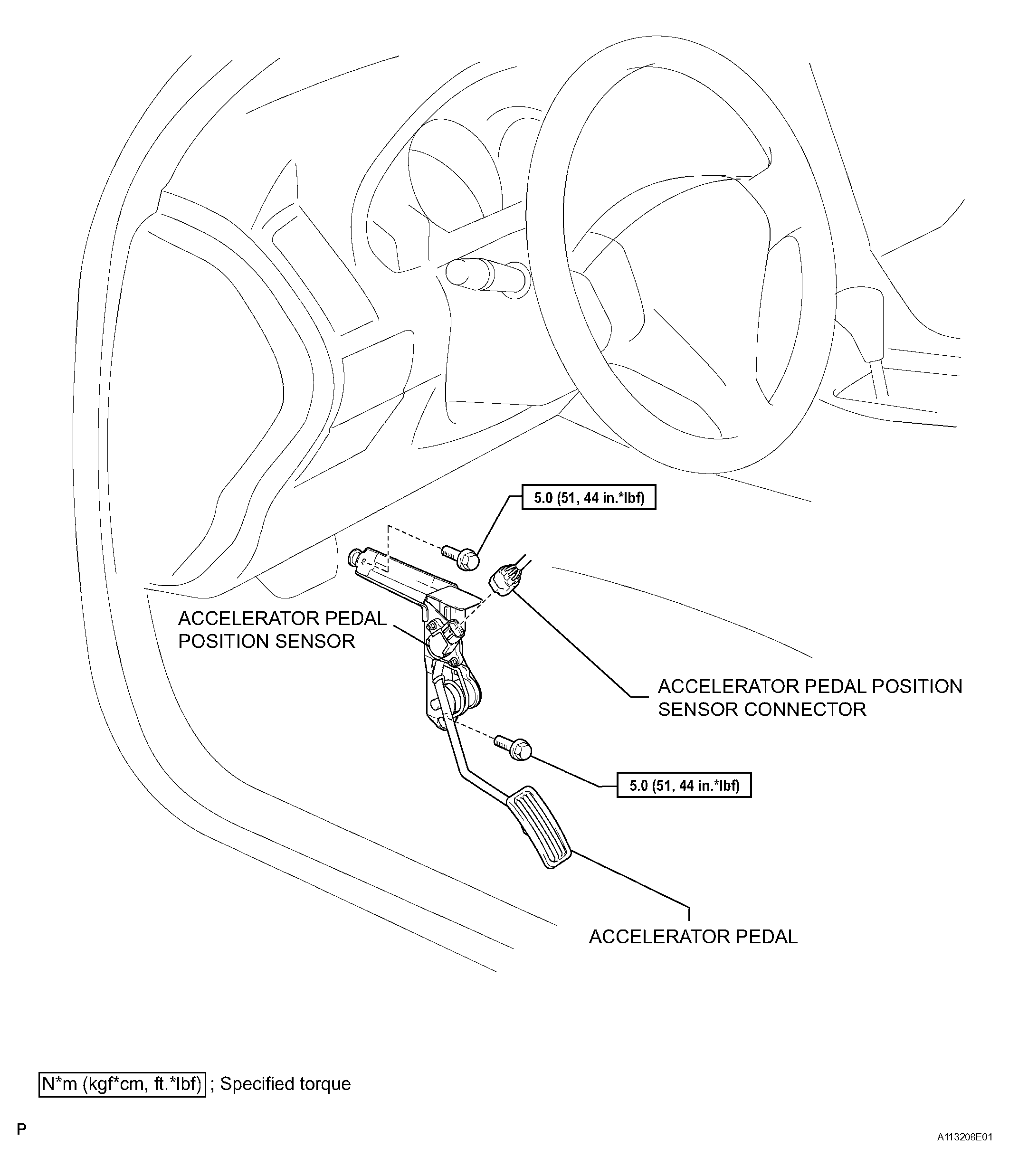

Fig 1: Identifying Accelerator Pedal Position Sensor Components & Replacements
G04435565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
