Camshaft Position Sensor: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CAMSHAFT POSITION SENSOR
1. Install the camshaft position sensor with the bolt and stud bolt.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
INSTALL NO. 3 TIMING BELT COVER SUBASSEMBLY BANK 1 (See INSTALLATION )
CONNECT NO. 1 RADIATOR HOSE (See INSTALLATION )

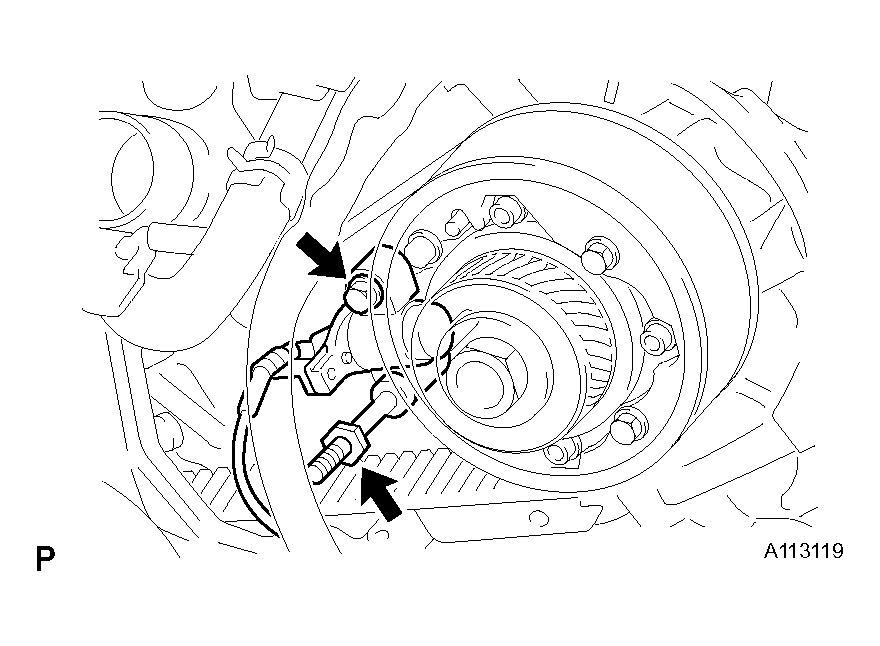

Fig 1: Installing Camshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE AIR CONNECTOR PIPE (See INSPECTION PROCEDURE )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSPECTION PROCEDURE )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKS
1. Check for engine coolant leaks (see ON-VEHICLE INSPECTION ).
