Crankshaft Position Sensor: Inspection

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT CRANKSHAFT POSITION SENSOR
    1. Measure the resistance between the terminals.

      Standard resistance

      CRANKSHAFT POSITION SENSOR

      Temperature Specified Condition
      Cold 1,630 to 2,740 Ω
      Hot 2,065 to 3,225 Ω

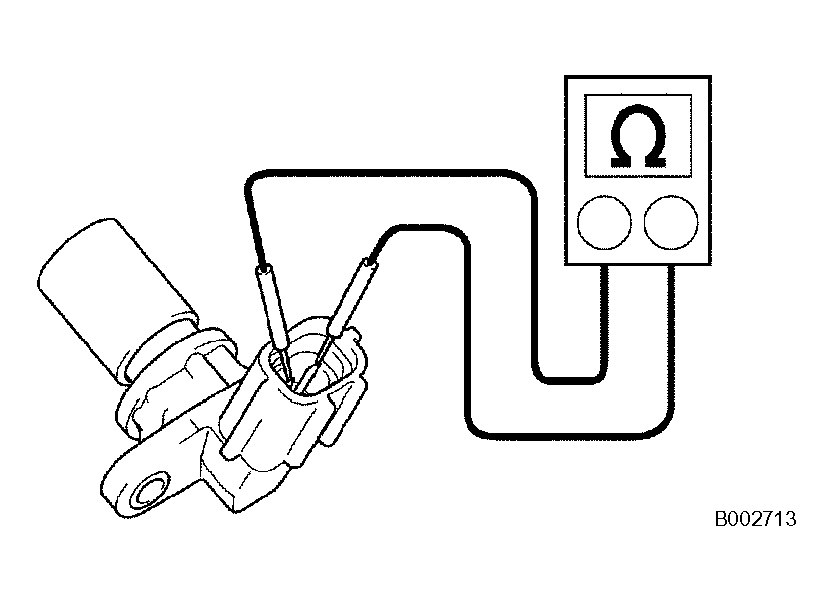

      Fig 1: Inspecting Crankshaft Position Sensor
      G04435528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: In the table above, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10 to 50°C (14 to 122°F). "Hot" means approximately 50 to 100°C (122 to 212°F).

      If the result is not as specified, replace the sensor.
