Crankshaft Position Sensor: Installation
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

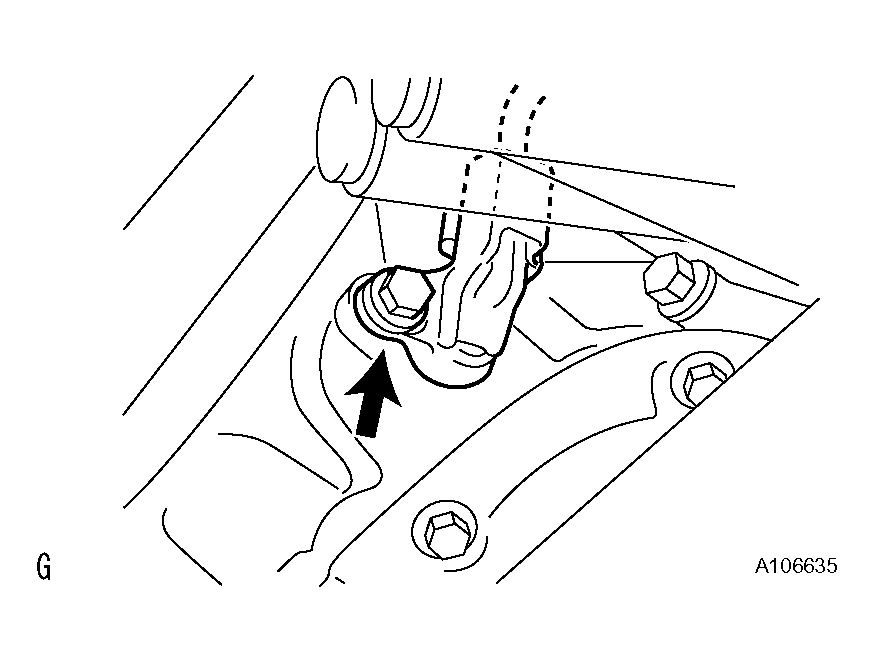

- INSTALL CRANKSHAFT POSITION SENSOR
- Install the sensor with the bolt.
Torque: 6.5 N*m (66 kgf*cm, 57 in.*lbf)
- Connect the sensor connector.
- Install the sensor with the bolt.
- INSTALL NO. 1 ENGINE UNDER COVER (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (see INITIALIZATION
).
