Crankshaft Position Sensor: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE NO. 1 ENGINE UNDER COVER (See REMOVAL )
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the sensor connector.
2. Remove the bolt and sensor.

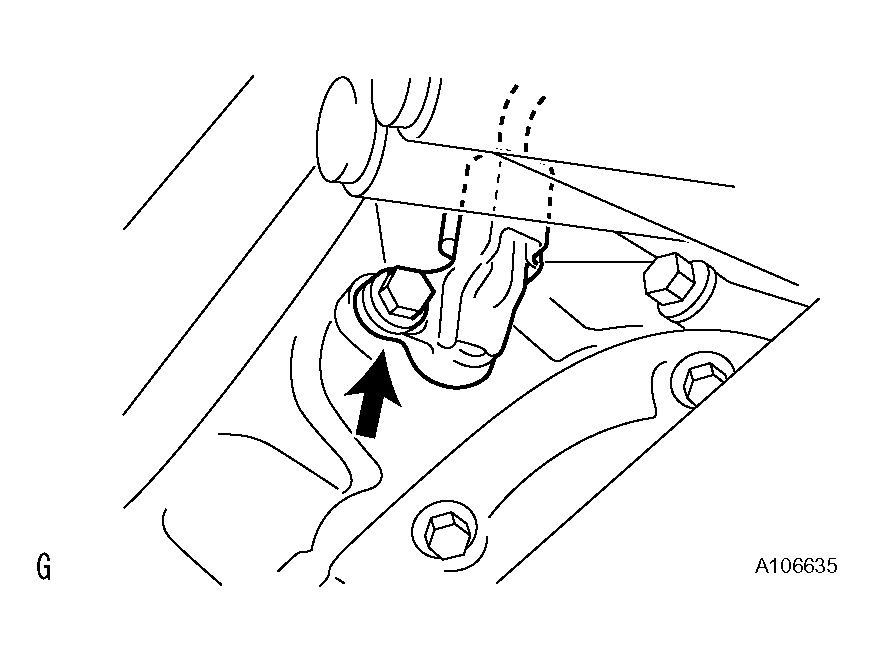

  Fig 1: Removing Crankshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
