Knock Sensor: Components
WARNING:
This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

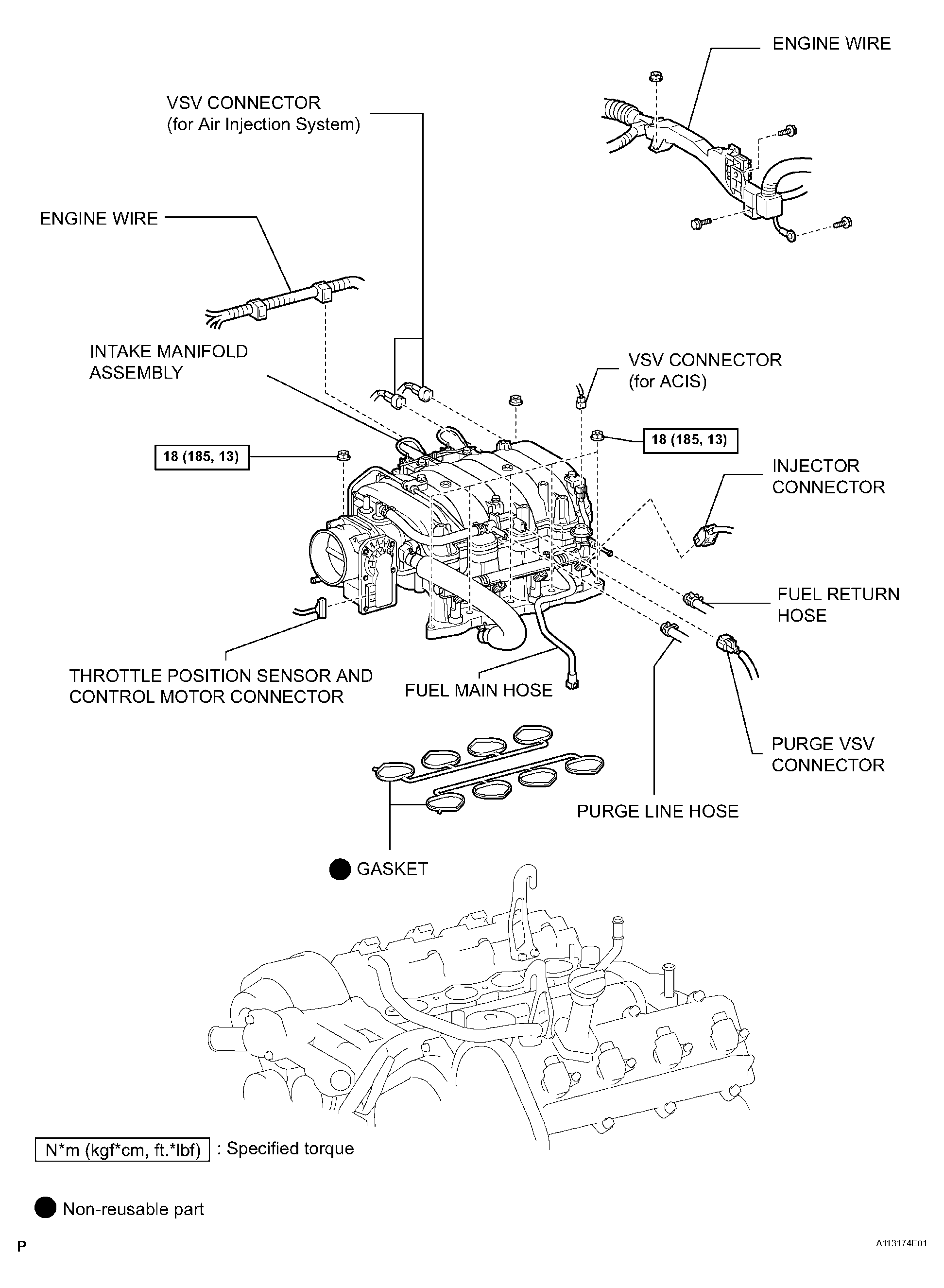

Fig 1: Identifying Knock Sensor Components & Replacements (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

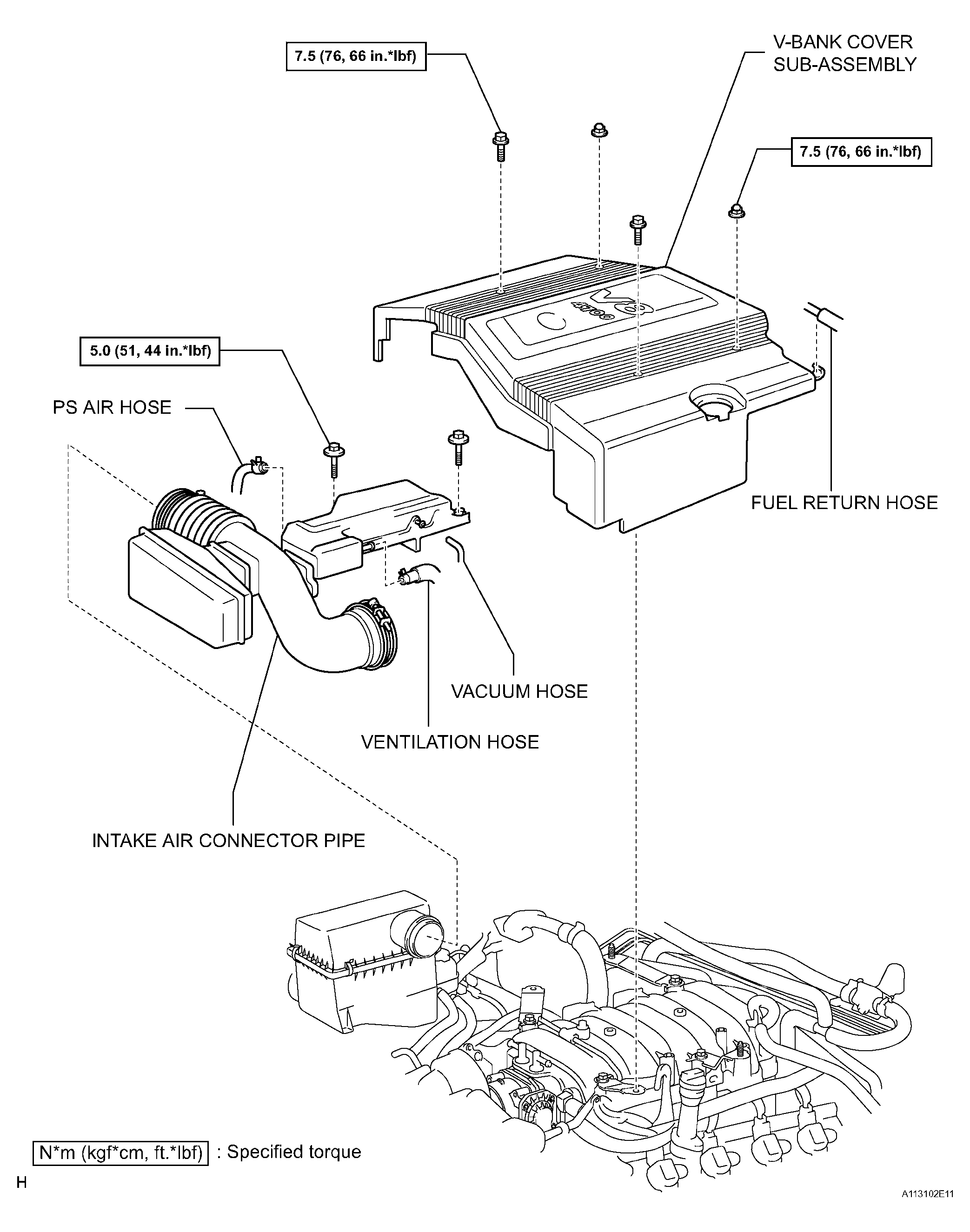

Fig 2: Identifying Knock Sensor Components & Replacements (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

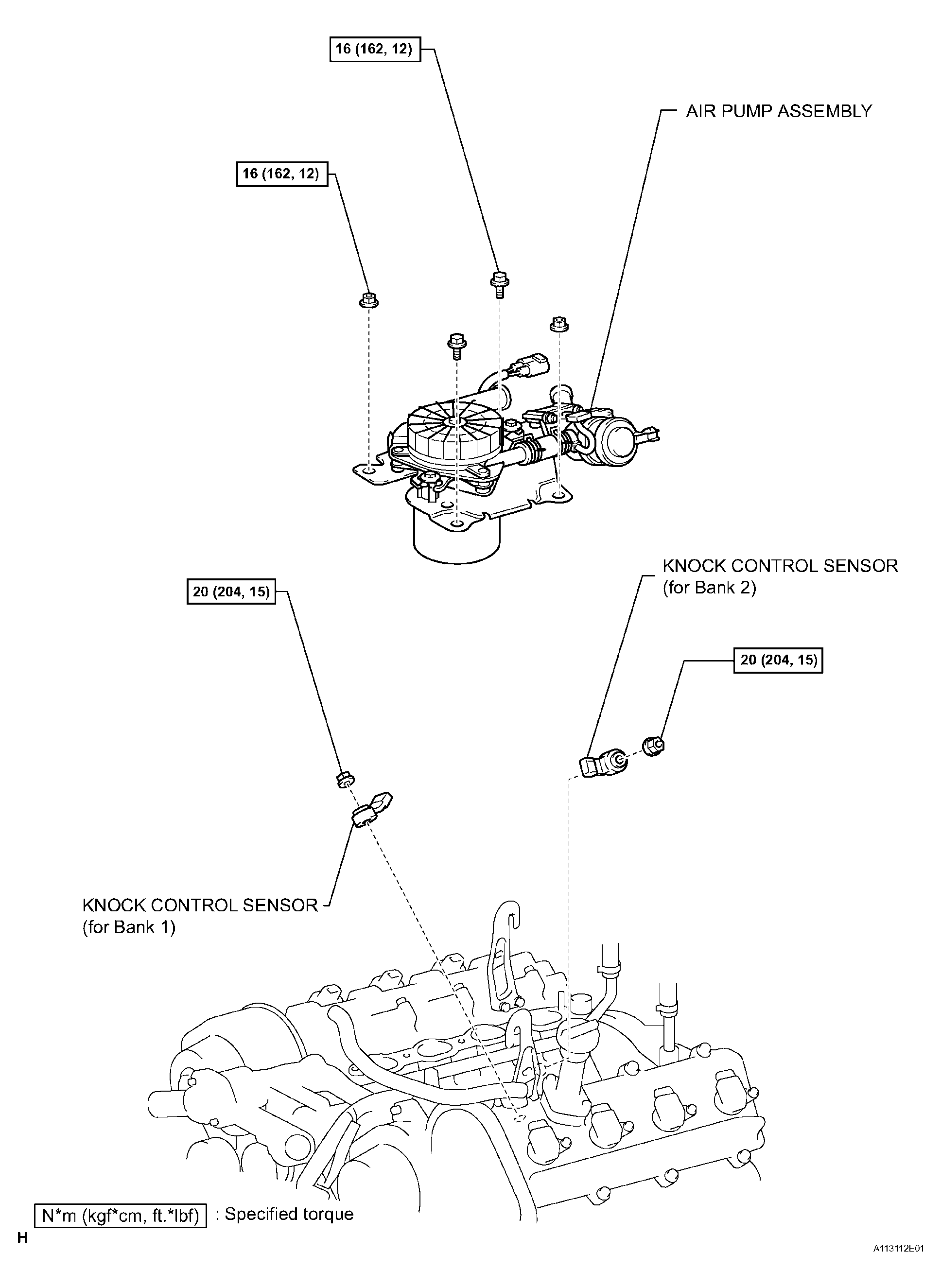

Fig 3: Identifying Knock Sensor Components & Replacements (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
