Knock Sensor: Inspection
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

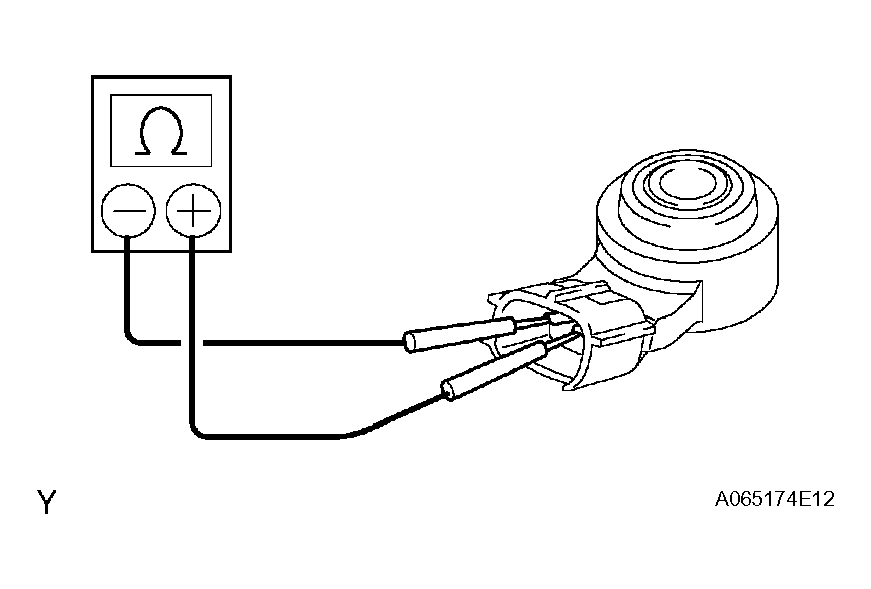

- INSPECT KNOCK CONTROL SENSOR
- Measure the resistance between the terminals.
Standard resistance: 120 to 280 kΩ at 20°C (68°F)
If the result is not as specified, replace the sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
