Knock Sensor: Installation
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK CONTROL SENSOR

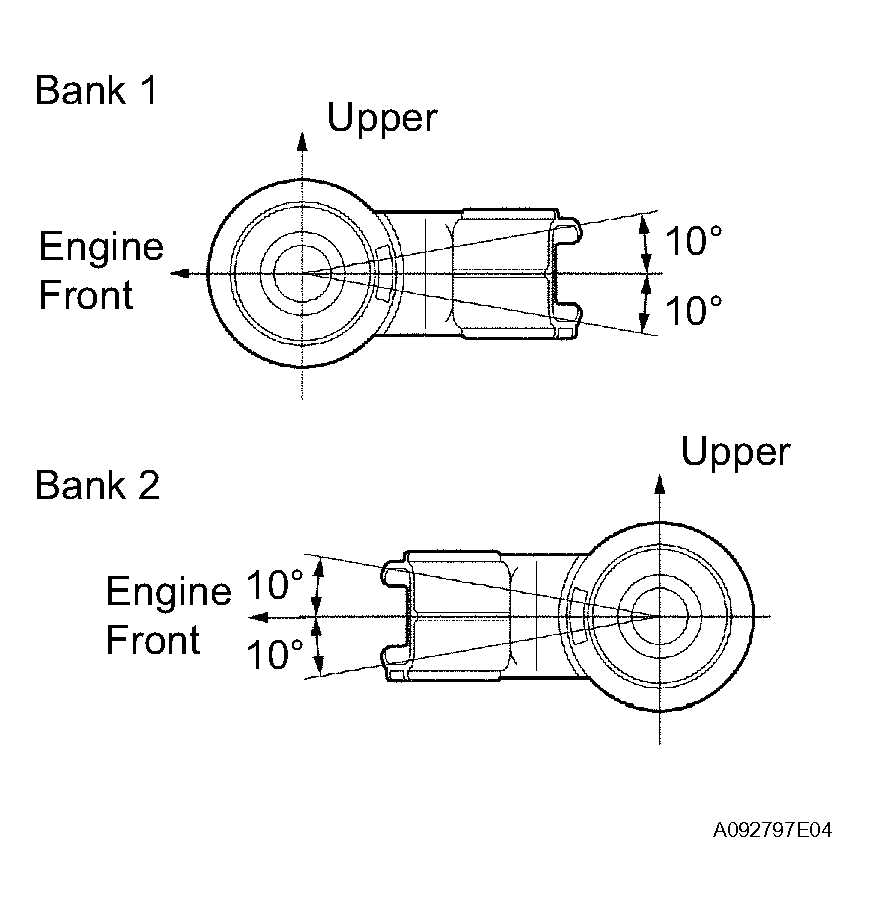

- Install the 2 knock sensors with the 2 nuts, as shown in Fig 1
.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Connect the 2 knock sensor connectors.
- Install the 2 knock sensors with the 2 nuts, as shown in Fig 1
.
- INSTALL AIR PUMP ASSEMBLY (See REASSEMBLY )
- INSTALL INTAKE MANIFOLD ASSEMBLY (See INSTALLATION )
- CONNECT FUEL MAIN HOSE (See INSTALLATION )
- CONNECT FUEL RETURN HOSE (See INSTALLATION )
- INSTALL INTAKE AIR CONNECTOR PIPE (See INSPECTION PROCEDURE )
- INSTALL V-BANK COVER SUB-ASSEMBLY (See INSPECTION PROCEDURE )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
- Perform initialization (see INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (see INITIALIZATION
).
- ADD ENGINE COOLANT (See COOLANT )
- CHECK FOR ENGINE COOLANT LEAKS
- Check for engine coolant leaks (see ON-VEHICLE INSPECTION ).
- CHECK FOR FUEL LEAKS
- Check for fuel leaks (see ON-VEHICLE INSPECTION ).
