Throttle Body: Inspection
WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT THROTTLE BODY

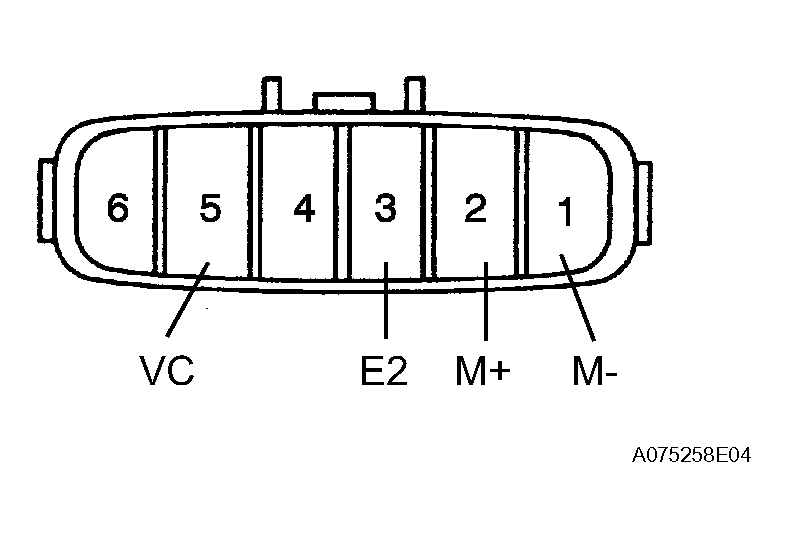

- Measure the resistance of the throttle position sensor and control motor.
Standard resistance
THROTTLE BODYTester Connection Condition Specified Condition 2 (M+) - 1 (M-) 20°C (68°F) 0.3 to 100 Ω 5 (VC) - 3 (E2) 20°C (68°F) 1.2 to 3.2 kΩ If the result is not as specified, replace the throttle body assembly.
- Measure the resistance of the throttle position sensor and control motor.
