Shift Lever: Disassembly

  1. REMOVE POSITION INDICATOR HOUSING
    1. Using a screwdriver, remove the position indicator housing from the shift lever assembly.
    NOTE: Do not damage the position indicator housing.
    Fig 1: Installing Position Indicator Housing To Shift Lever Assembly
    G05279316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SHIFT LOCK RELEASE BUTTON COVER
    1. Using a screwdriver, remove the shift lock release button cover from the position indicator housing assembly.
  3. REMOVE SHIFT LOCK RELEASE BUTTON
    1. Remove the shift lock release button, spring and cover from the position indicator housing.
    NOTE: Do not damage the position indicator housing.
    Fig 2: Installing Shift Lock Release Button, Spring And Cover
    G05279317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE POSITION INDICATOR LIGHT GUIDE
    1. Using a screwdriver, remove the position indicator light guide from the shift lever assembly.
    Fig 3: Installing Position Indicator Light Guide To Position Indicator Housing Lower
    G05279318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover from the position indicator housing lower.
    Fig 4: Removing Position Indicator Slide Cover From Position Indicator Housing Lower
    G05279319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE POSITION INDICATOR SLIDE COVER NO.2
    1. Remove the position indicator slide cover No.2 from the position indicator slide cover.
    Fig 5: Removing Position Indicator Slide Cover No 2 From Position Indicator Slide Cover
    G05279320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY
    1. Remove the indicator light wire sub-assembly from the shift lever assembly.
      2. Fig 6: Removing Indicator Light Wire Sub-Assembly
      G05279321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SHIFT LEVER WIRE GUIDE
    1. Remove the shift lever wire guide No. 1 from the indicator light wire.
  9. REMOVE POSITION INDICATOR HOUSING LOWER
    1. Remove the position indicator housing lower from the shift lock control unit.

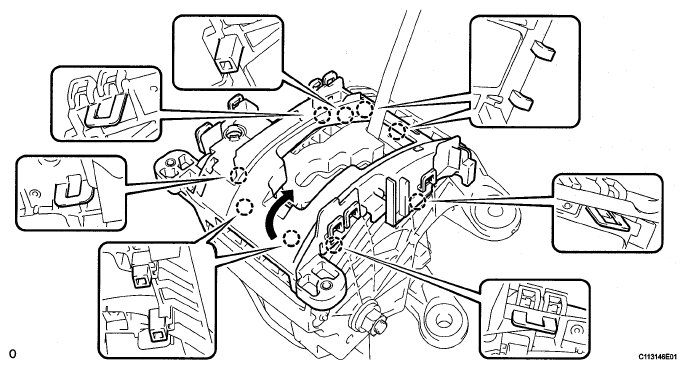

    Fig 7: Removing Position Indicator Housing Lower From Shift Lock Control Unit
    G05279322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
