Transaxle Control Cable Assembly: Components

Fig 1: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (1 Of 5)
G05279356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (2 Of 5)
G05279357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

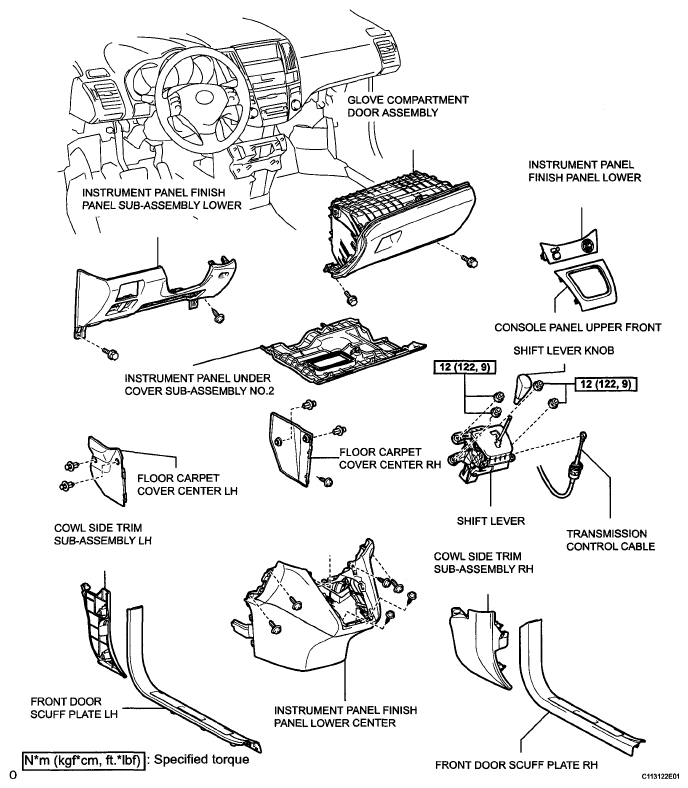

Fig 3: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (3 Of 5)
G05279306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Transaxle Control Cable Assembly Components (4 Of 5)
G05279359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

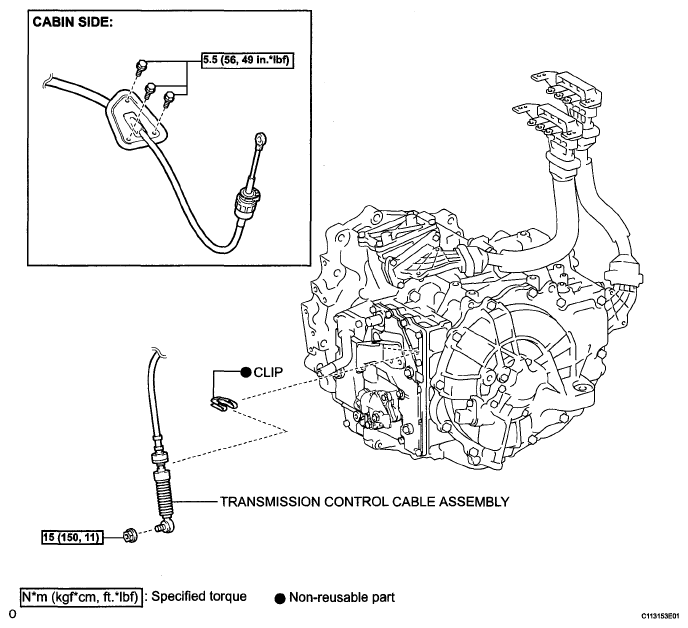

Fig 5: Transaxle Control Cable Assembly Replacement Components With Torque Specifications (5 Of 5)
G05279360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
