DTC Check / Clear

  1. DTC CHECK/CLEAR (WHEN USING INTELLIGENT TESTER):
    1. DTC check
      1. Connect the intelligent tester to the DLC3.
        2. Fig 1: Connecting Intelligent Tester To DLC3
        G05276791Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      2. Turn the ignition switch on.
      3. Read the DTCs following the prompts on the tester screen.
    2. DTC clear
      1. Connect the intelligent tester to the DLC3.
      2. Turn the ignition switch on.
      3. Operate the intelligent tester to clear the codes.

        HINT:

        Refer to the intelligent tester operator's manual for further details.

  2. DTC CHECK/CLEAR (WHEN USING SST CHECK WIRE):
    1. DTC check
      1. Using SST, connect terminals TC and CG of the DLC3.

        SST 09843-18040

        Fig 2: Identifying DLC3 Connector Terminal
        G04977907Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      2. Turn the ignition switch on.
      3. Read DTC from the ABS and brake control warning lights on the combination meter and multi information display.

        HINT:

        • If no code appears, inspect the TC and CG terminal circuit, and ABS and brake control warning light circuits.
        TROUBLE AREA REFERENCE CHART

        Trouble Area See Procedure
        TC and CG terminal circuit TC and CG Terminal Circuit
        ABS warning light circuit ABS Warning Light Remains ON  or ABS WARNING LIGHT DOES NOT COME ON
        Brake control warning light circuit BRAKE CONTROL WARNING LIGHT REMAINS ON  or BRAKE CONTROL WARNING LIGHT DOES NOT COME ON

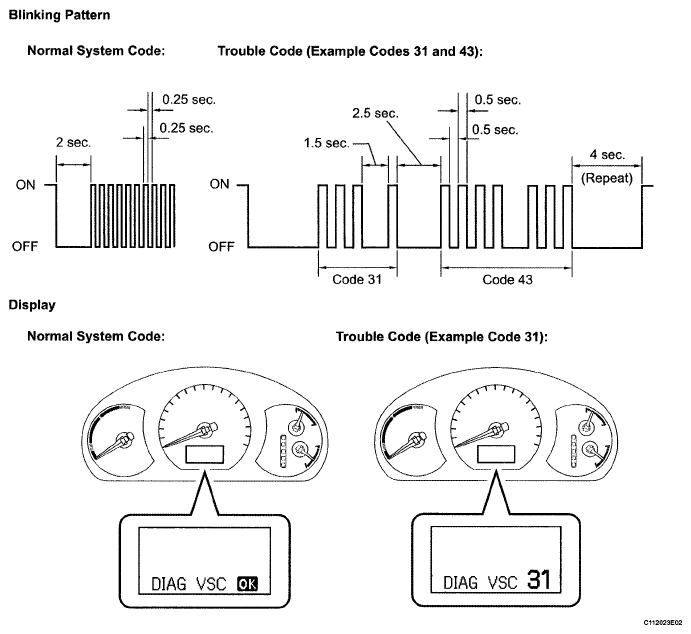

        • As an example, the illustration below shows the blinking patterns of the normal system code and trouble codes 31 and 43, and display of the normal system code and trouble code 31 on the multi information display.
        Fig 3: Blinking Patterns - Normal System Code And Trouble Code
        G05202681Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      4. Codes are explained in the code table (See DIAGNOSTIC TROUBLE CODE CHART )
      5. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display. If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.
    2. DTC clear
      1. Using SST, connect terminals TC and CG of the DLC3.

        SST 09843-18040

        Fig 4: Identifying DLC3 Connector Terminal
        G04977907Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      2. Turn the ignition switch on.
      3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
      4. Check that the ABS warning and brake control lights and multi information display indicate the normal system code.
        5. Fig 5: Checking ABS And Brake Control Warning Lights
        G05241628Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
      5. Remove the SST from the terminals of the DLC3.

        HINT:

        Clearing the DTCs cannot be performed by removing the battery cable or the ECU-IG NO.1 fuse.

  3. END OF DTC CHECK/CLEAR (WHEN USING SST CHECK WIRE):
    1. Turn the ignition switch on.
    2. Check that the ABS and brake control warning lights go off within approximately 3 seconds.
