Cruise Control: Notes

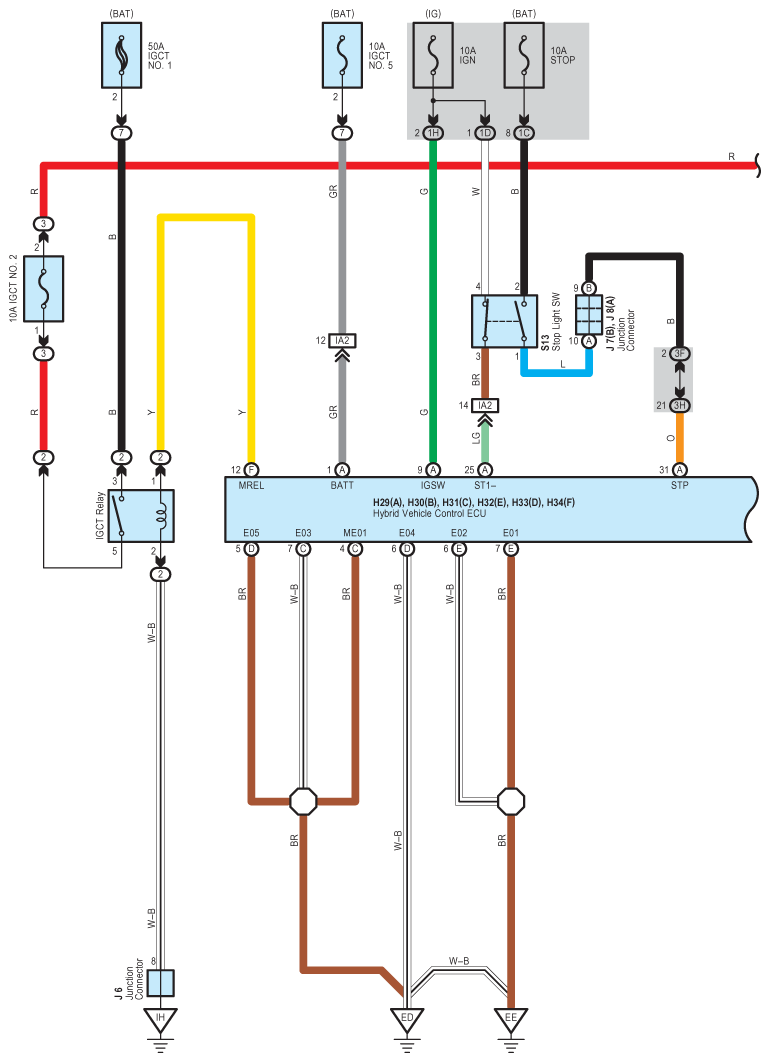

Fig 1: Cruise Control - Wiring Diagram (1 Of 6)
G08932930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

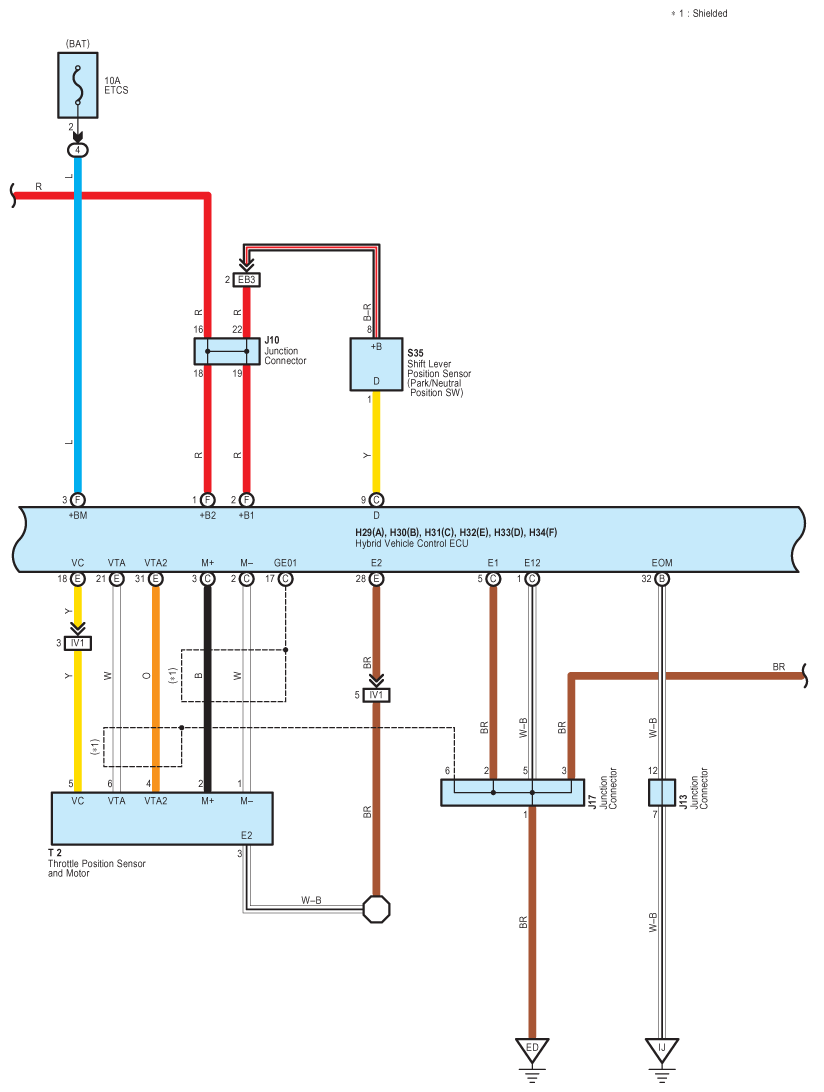

Fig 2: Cruise Control - Wiring Diagram (2 Of 6)
G08932931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

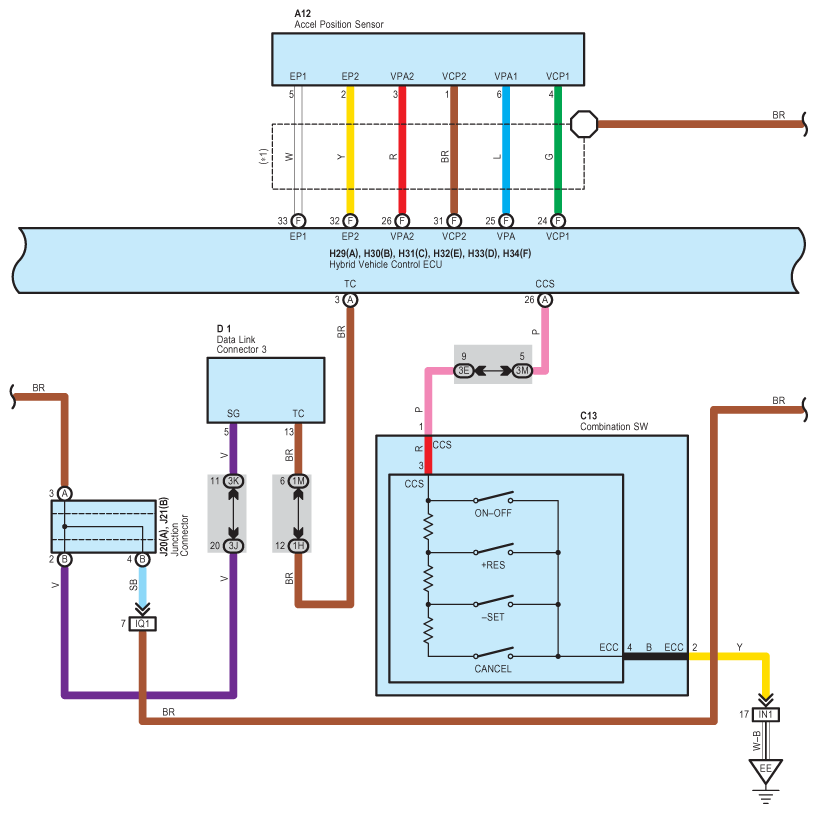

Fig 3: Cruise Control - Wiring Diagram (3 Of 6)
G08932932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

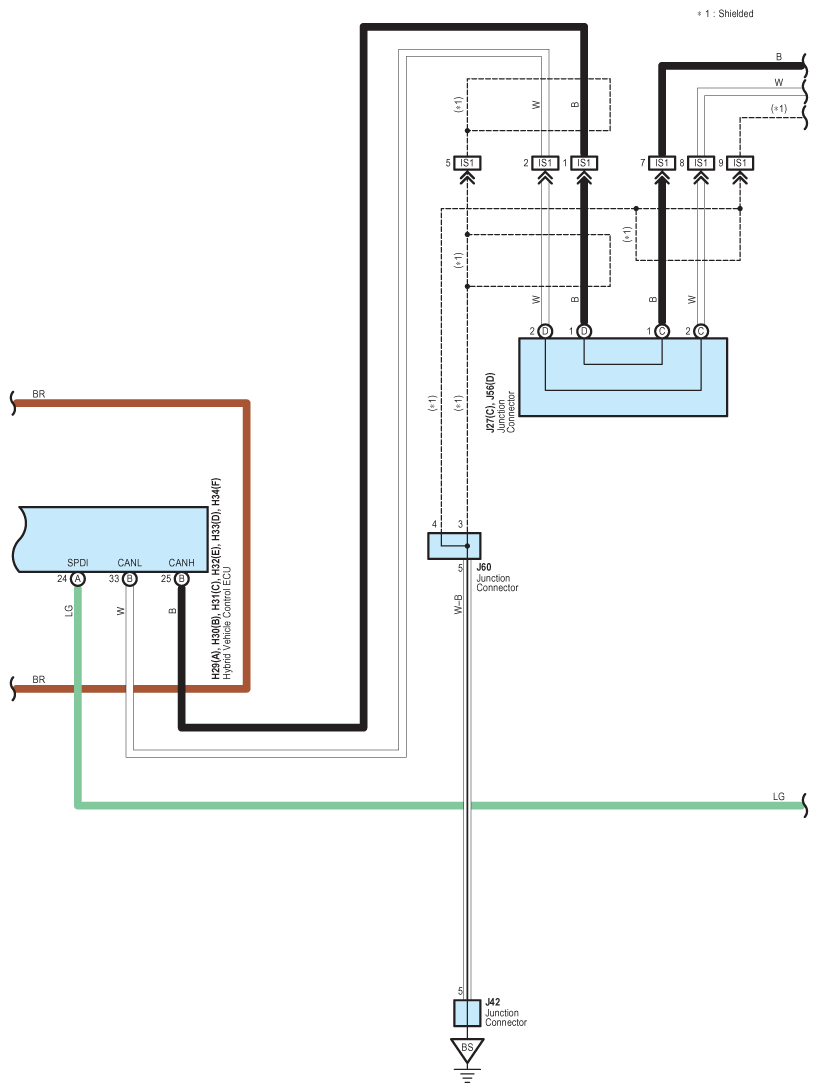

Fig 4: Cruise Control - Wiring Diagram (4 Of 6)
G08932933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

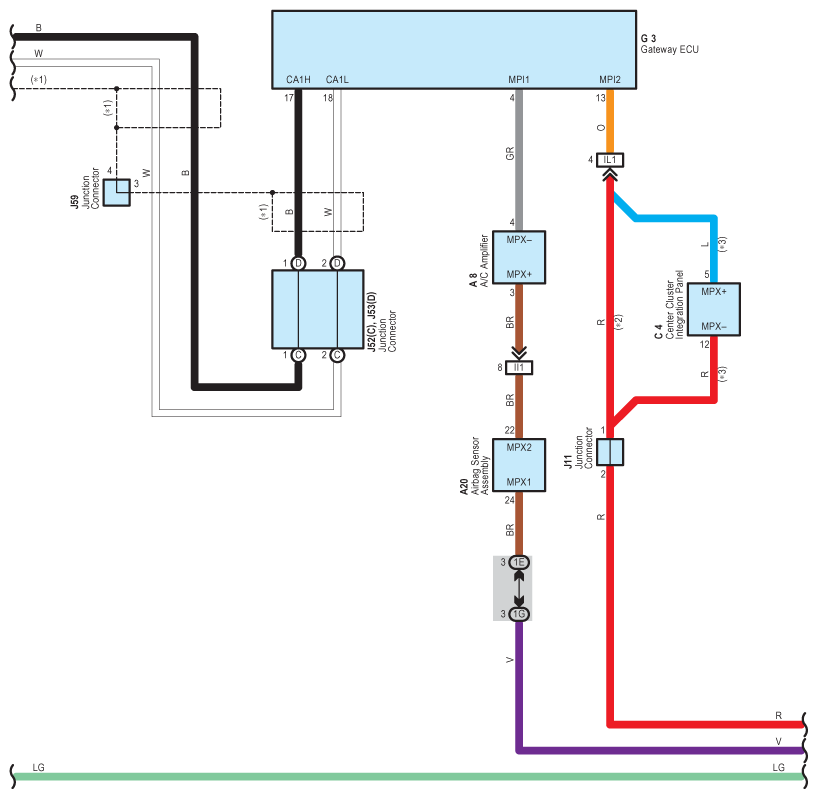

Fig 5: Cruise Control - Wiring Diagram (5 Of 6)
G08932934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

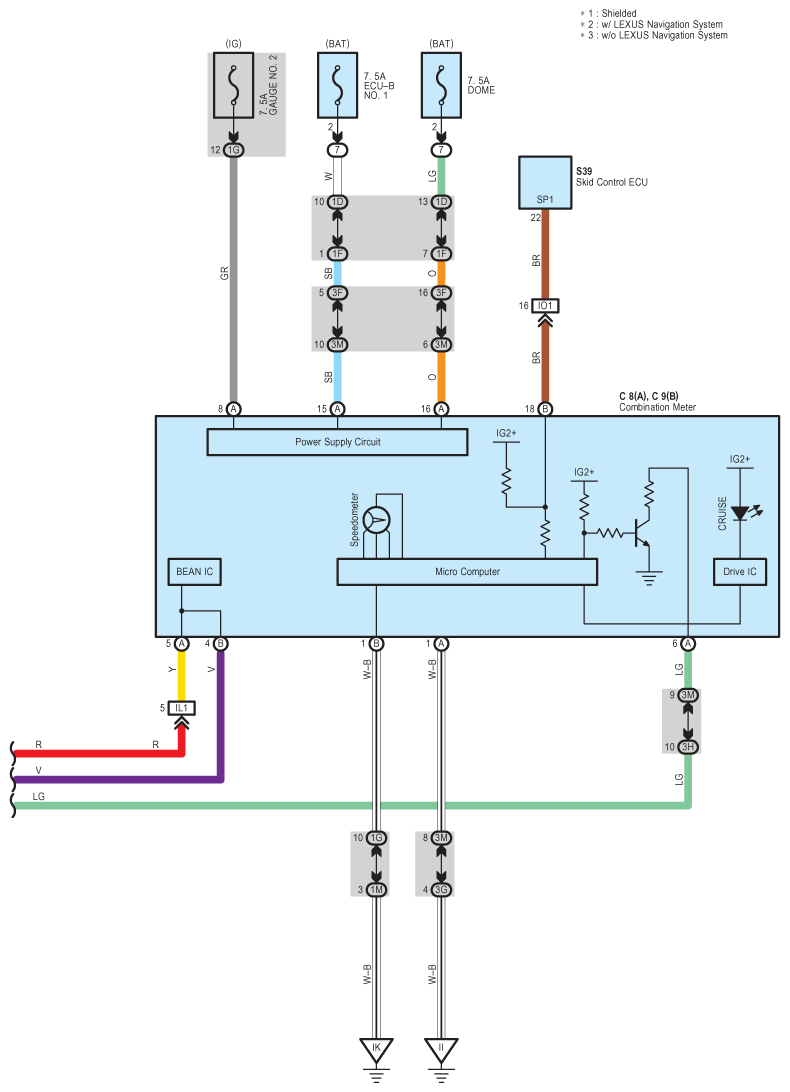

Fig 6: Cruise Control - Wiring Diagram (6 Of 6)
G08932935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
