Interior Light: Notes

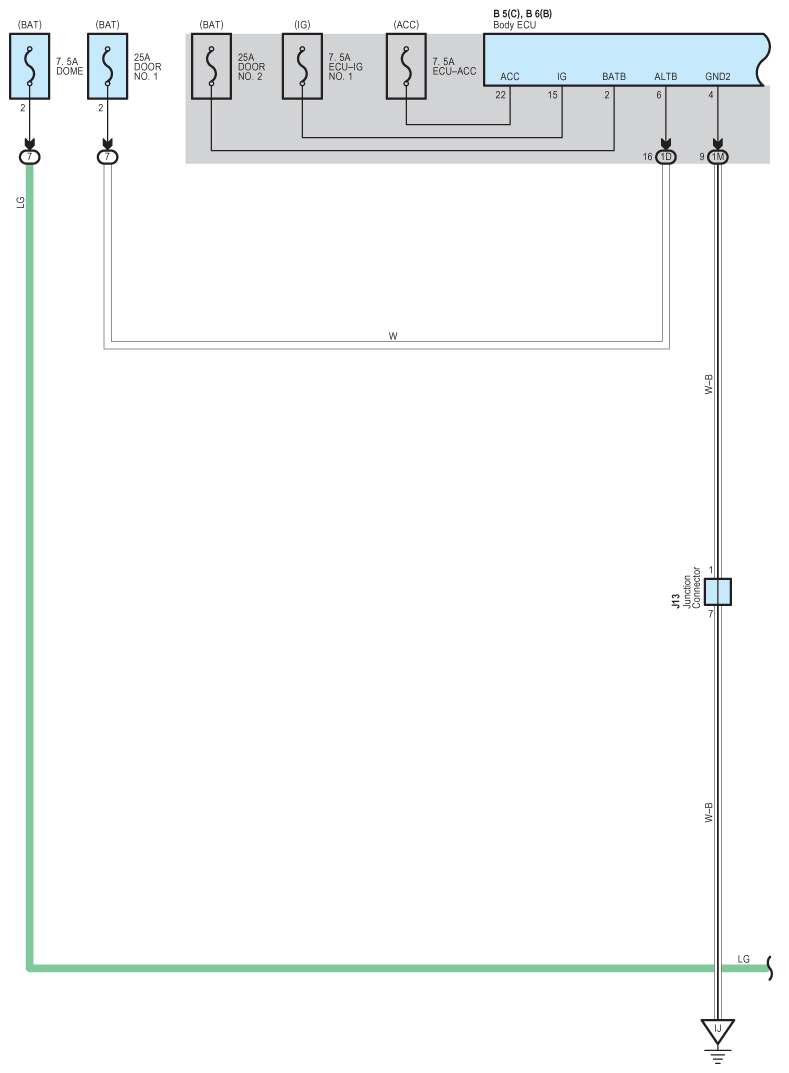

Fig 1: Interior Light - Wiring Diagram (1 Of 8)

G08932973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

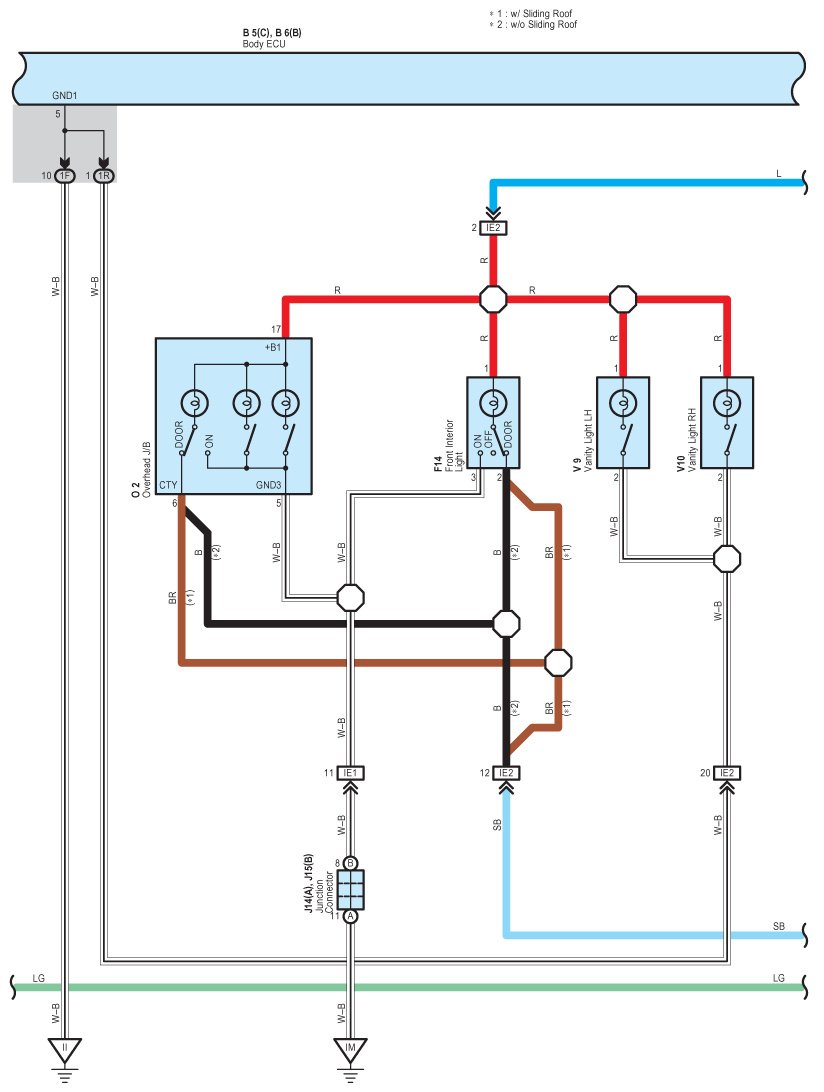

Fig 2: Interior Light - Wiring Diagram (2 Of 8)

G08932974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

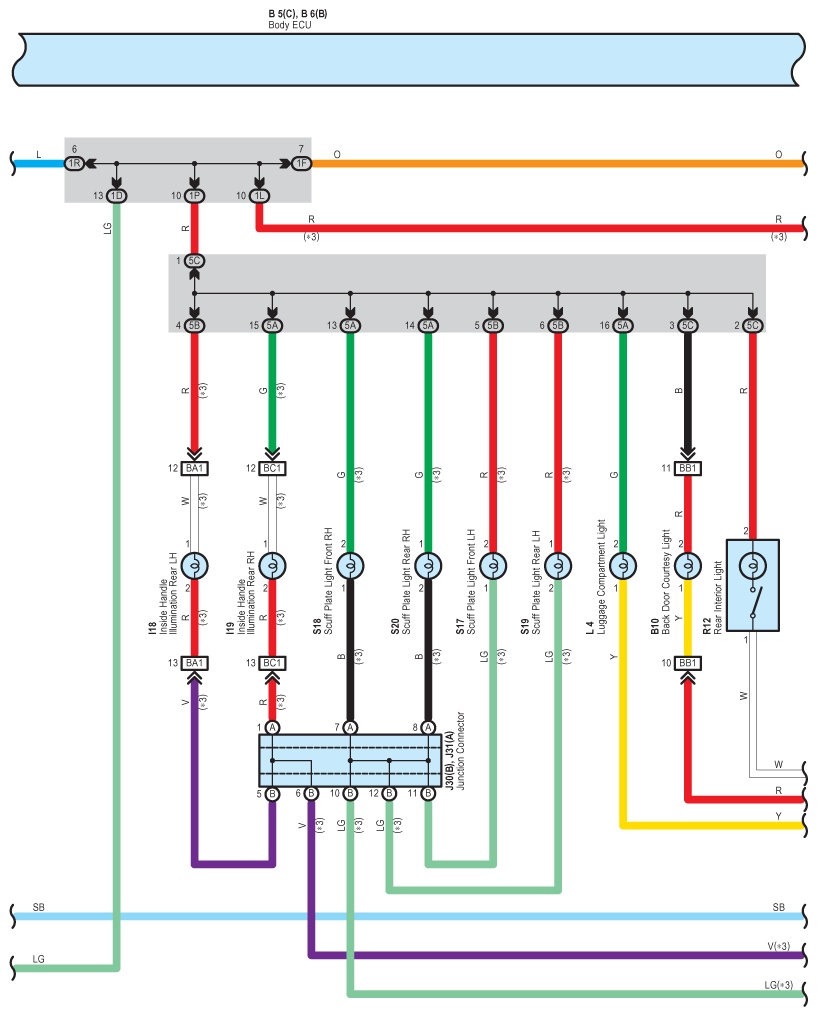

Fig 3: Interior Light - Wiring Diagram (3 Of 8)

G08932975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

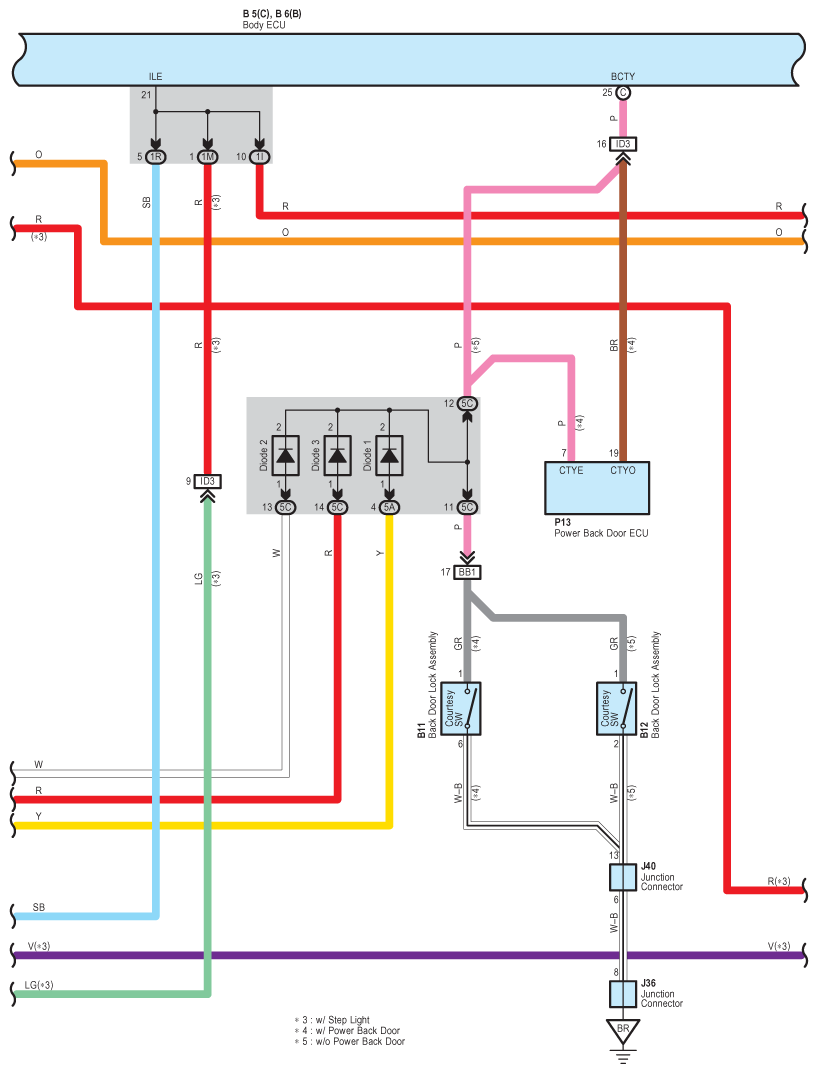

Fig 4: Interior Light - Wiring Diagram (4 Of 8)

G08932976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

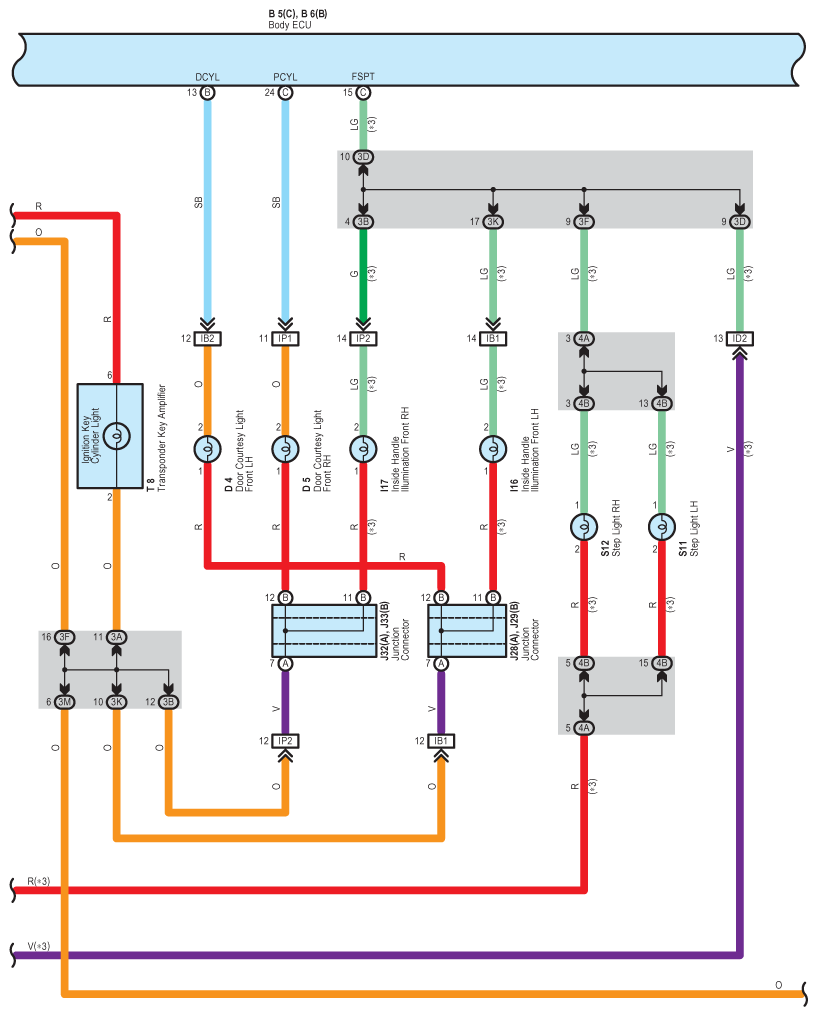

Fig 5: Interior Light - Wiring Diagram (5 Of 8)

G08932977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

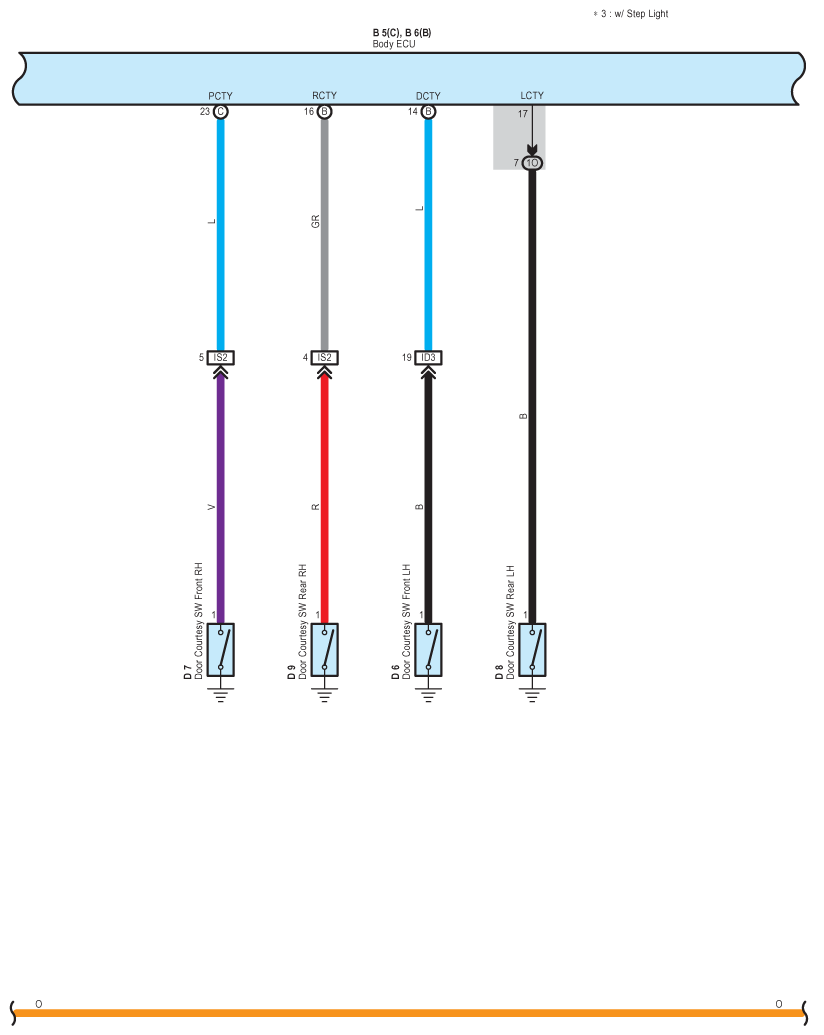

Fig 6: Interior Light - Wiring Diagram (6 Of 8)

G08932978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

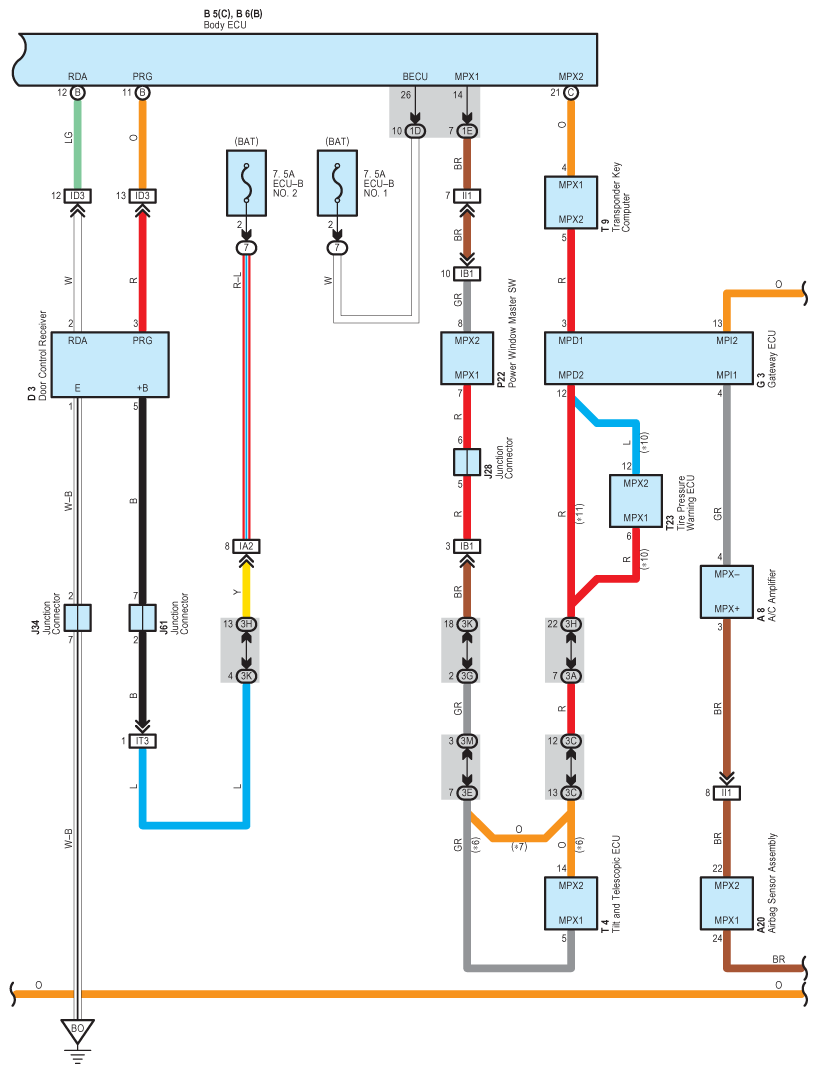

Fig 7: Interior Light - Wiring Diagram (7 Of 8)

G08932979

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

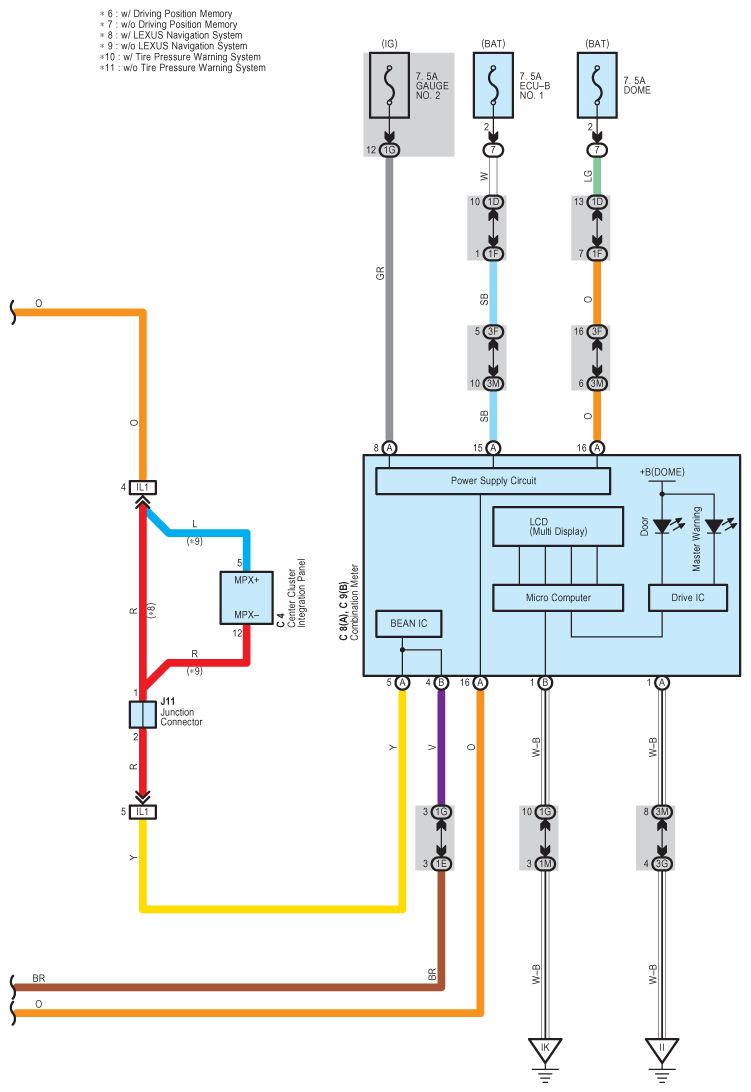

Fig 8: Interior Light - Wiring Diagram (8 Of 8)

G08932980

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
