Multi Display without Navigation: Notes

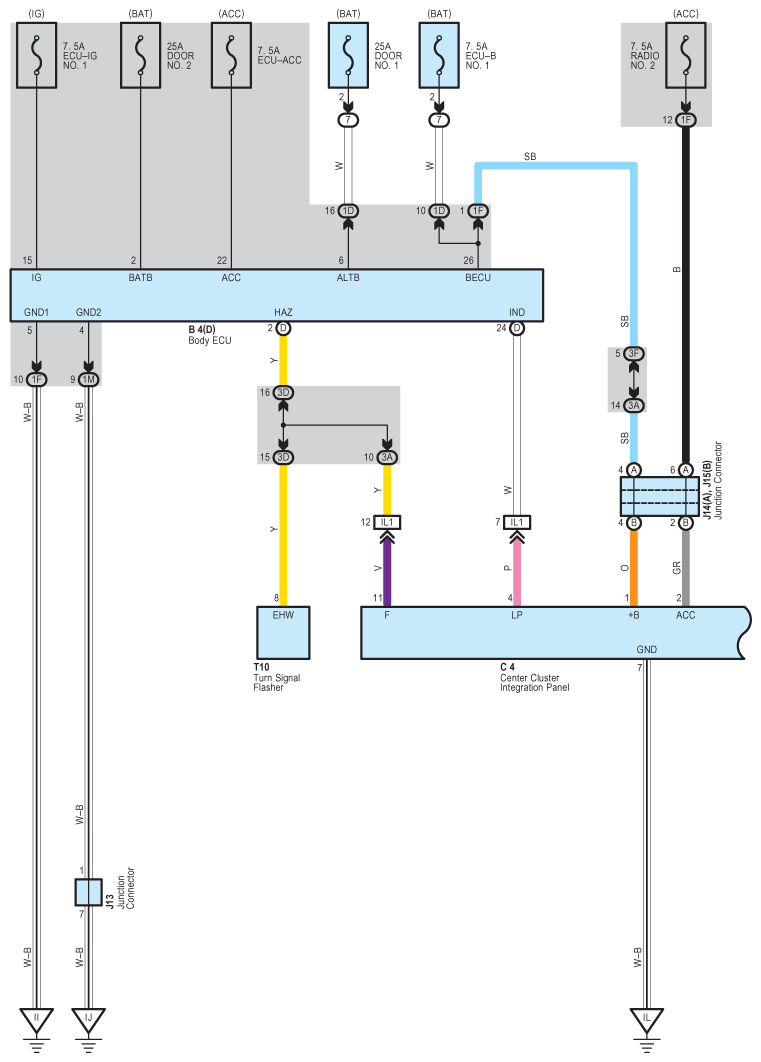

Fig 1: Multi Display Without Navigation - Wiring Diagram (1 Of 3)
G08933102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

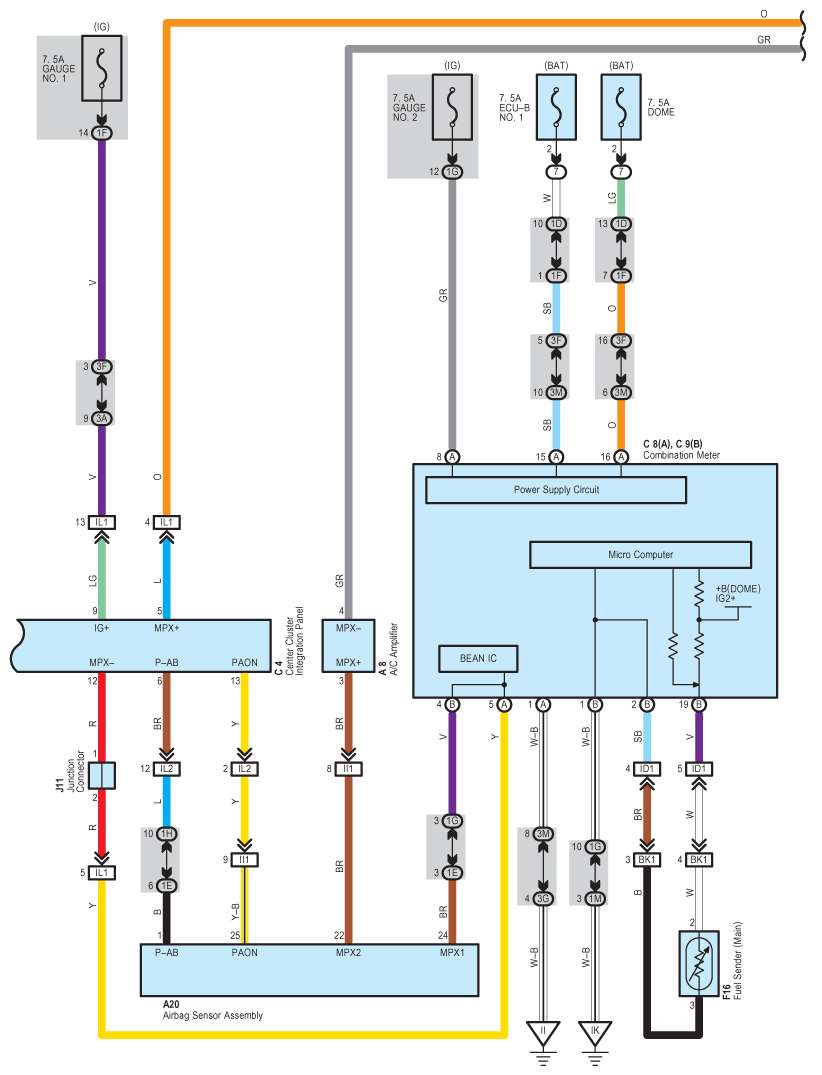

Fig 2: Multi Display Without Navigation - Wiring Diagram (2 Of 3)
G08933103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

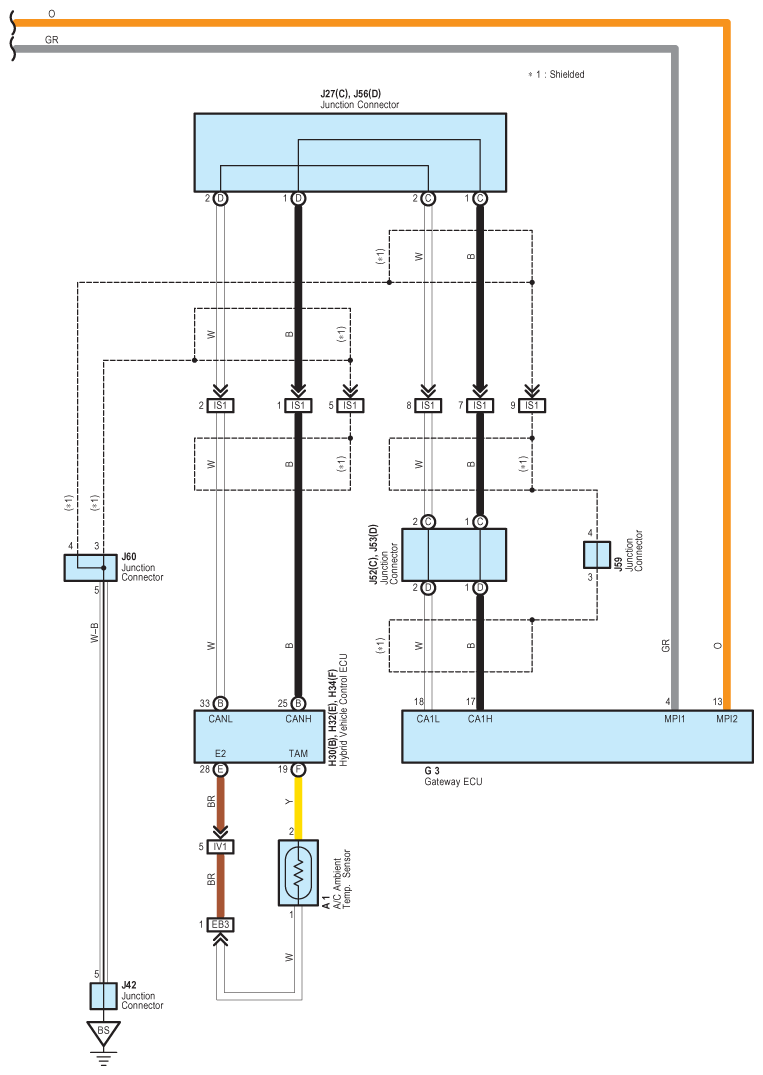

Fig 3: Multi Display Without Navigation - Wiring Diagram (3 Of 3)
G08933104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
