Ignition Switch: Inspection

INSPECT IGNITION SWITCH

Measure the resistance according to the value(s) in the table below.

Standard

IGNITION SWITCH SPECIFICATION

Switch Condition	Tester Connection	Specified Condition
LOCK	Between all terminals	10 kΩ or higher
ACC	2 (AM1) - 3 (ACC)	Below 1 Ω
ON	2(AM1)- 3 (ACC) 2 (AM1) - 4 (IG1) 5 (IG2) - 6 (AM2)	Below 1 Ω
START	1 (ST1) - 2 (AM1) 1 (ST1) - 4 (IG1) 5 (IG2) - 6 (AM2) 5 (IG2) - 7 (ST2)	Below 1 Ω

If the result is not as specified, replace the ignition switch.

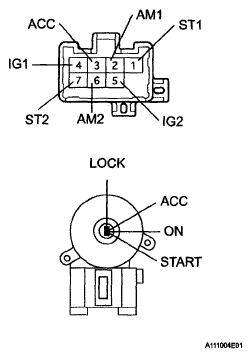

Fig 1: Identifying Ignition Switch Connector

G05201142

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
