BASIC REPAIR HINT

HINTS ON OPERATIONS

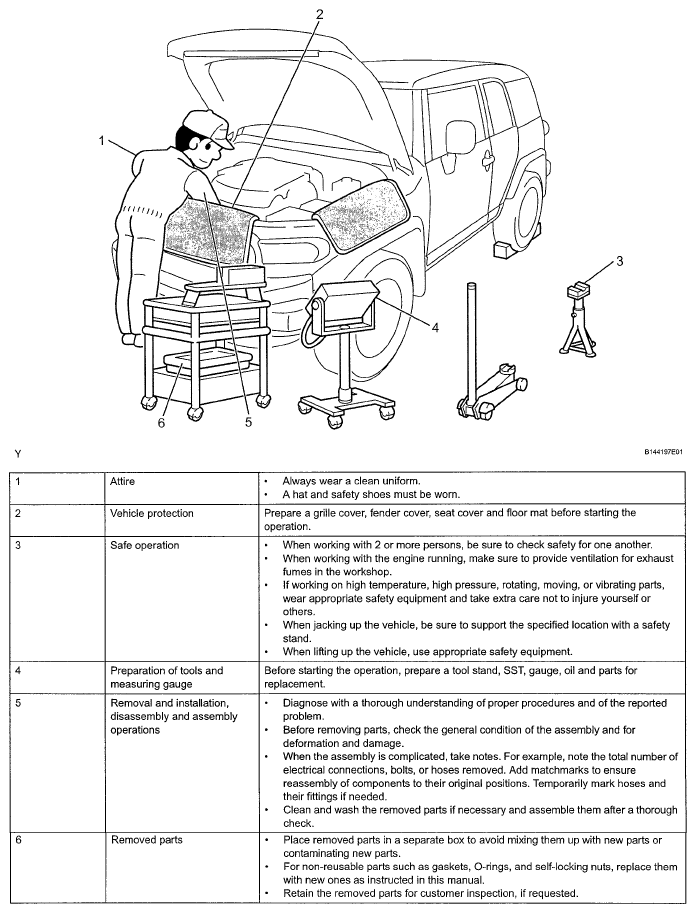

Fig 1: Precaution For Repair Instructions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

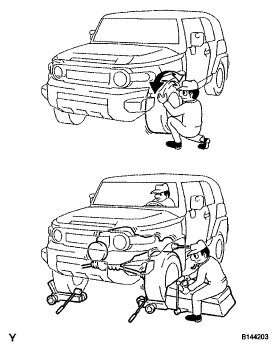

JACKING UP AND SUPPORTING VEHICLE
1. Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations.
PRECOATED PARTS
1. Precoated parts are bolts and nuts that are coated with a seal lock adhesive at the factory.
2. If a precoated part is retightened, loosened or moved in any way, it must be recoated with the specified adhesive.
3. When reusing a precoated part, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to that part.
4. Some seal lock agents harden slowly. You may have to wait for the seal lock adhesive to harden.
GASKETS
1. When necessary, use a sealer on gaskets to prevent leaks.
BOLTS, NUTS AND SCREWS
1. Carefully follow all the specifications for tightening torques. Always use a torque wrench.

FUSES

When inspecting a fuse, check that the wire of the fuse is not broken.

Fig 3: Identifying Fuses Correct And Incorrect Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

When replacing fuses, be sure that the new fuse has the correct amperage rating. Do not exceed the rating or use one with a lower rating.

FUSE SPECIFICATION

Illustration	Symbol	Part Name	Abbreviation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSE	FUSE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	MEDIUM CURRENT FUSE	M-FUSE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	HIGH CURRENT FUSE	H-FUSE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	FUSIBLE LINK	FL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	CIRCUIT BREAKER	CB

clips

The removal and installation methods of typical clips used for vehicle body parts are shown in the table below.

HINT:

If clips are damaged during a procedure, always replace the damaged clip with a new clip.

CLIPS SPECIFICATION

Shape (Example)	Illustration	Procedures
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Remove the clips with a clip remover or pliers.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Remove the clips with a clip remover or screwdriver.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Remove the clips with a wide scraper to prevent panel damage.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Remove the clips by pushing the center pin through and prying out the shell.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Remove the clips by unscrewing the center pin and prying out the shell.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Remove the clips by prying out the pin and then prying out the shell.

CLAWS

The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.

HINT:

If claws are damaged during a procedure, always replace the damaged claws with new caps or covers.

CLAWS SPECIFICATION

Shape (Example)	Illustration	Procedures
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Using a screwdriver, detach the claws and remove the cap or covers.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Using a screwdriver, detach the claws and remove the cap or covers.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	1. Using a screwdriver, detach the claws and remove the cap or covers.

HINGE, GUIDE, CLAMP AND PIN ETC.

The removal and installation methods of typical hinge, guide, clamp and pin used for vehicle body parts are shown in the table below.

HINT:

If clamps are damaged during a procedure, always replace the cap or cover that has damaged clamps with a new one.

HINGE, GUIDE, CLAMP AND PIN SPECIFICATION

Shape (Example)	Removal/Installation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVAL AND INSTALLATION OF VACUUM HOSES
1. To disconnect a vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may cause damage.

  Fig 4: Precaution For Vacuum Hosse
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. When disconnecting vacuum hoses, use tags to identify where they should be reconnected.
3. After completing any hose related repairs, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.
4. When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has been stretched, it may leak air. Use a step-down adapter if necessary.

TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL

Fig 6: Identifying Torque Wrench With Extension Tool

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with a torque wrench.

Formula: T' = L2 / (L1 + L2) * T

Fig 7: Identifying SST Dimension

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FORMULA VALUES

T'	Reading of torque wrench {Nm (kgfcm, ft.*lbf)}
T	Torque {Nm (kgfcm, ft.*lbf)}
L1	Length of SST or extension tool {cm (in.)}
L2	Length of torque wrench {cm (in.)}

NOTE: If an extension tool or SST is combined with a torque wrench and the wrench is used to tighten to a torque specification in this manual, the actual torque will be excessive and parts will be damaged.

FOR VEHICLES EQUIPPED WITH SRS AIRBAG AND FRONT SEAT OUTER BELT ASSEMBLY WITH PRETENSIONER
The FJ CRUISER is equipped with a Supplemental Restraint System (SRS).

CAUTION: Failure to carry out the service operations in the correct sequence could cause the SRS to unexpectedly deploy during servicing and lead to serious injury. Furthermore, if a mistake is made when servicing the SRS, it is possible that the SRS may fail to operate properly. Before servicing (including removal or installation of parts, inspection or replacement), be sure to read the following information carefully.
1. GENERAL NOTICE
  1. As malfunctions of the SRS are difficult to confirm, the Diagnostic Trouble Codes (DTCs) become the most important source of information when troubleshooting. When troubleshooting the SRS, always check the DTCs before disconnecting the battery.
  2. Work must be started at least 90 seconds after the ignition switch is turned OFF and after the cable is disconnected from the negative (-) battery terminal.
    (The SRS is equipped with a backup power source. If work is started within 90 seconds after turning the ignition switch OFF and disconnecting the cable from the negative (-) battery terminal, the SRS may deploy. When the cable is disconnected from the negative (-) battery terminal, clock and audio system memory is erased. Before starting work, make a note of the settings of each memory system. When work is finished, reset the clock and audio system as before.

    CAUTION: Never use a backup power source (battery or other) to avoid erasing system memory. The backup power source may inadvertently power the SRS and cause it to deploy.
  3. Even in cases of a minor collision where the SRS does not deploy, the steering wheel pad, front passenger airbag assembly, front seat side airbag assembly, curtain shield airbag assembly and seat belt pretensioner should be inspected
  4. In minor collisions where the SRS does not deploy, the steering wheel pad, front passenger airbag assembly, front seat side airbag assembly, curtain shield airbag assembly and seat belt pretensioner should be inspected before further use of the vehicle.
  5. Never use SRS parts from another vehicle. When replacing parts, use new parts.
  6. Before repairs, remove the airbag sensor assemblies if impacts are likely to be applied to the sensor during repairs.
  7. Never disassemble and attempt to repair the steering wheel pad, front passenger airbag assembly, side airbag assembly, curtain shield airbag assembly and seat belt pretensioner.
  8. Replace the steering wheel pad, front passenger airbag assembly, front seat side airbag assembly, curtain shield airbag assembly and seat belt pretensioner if: 1) damage has occurred from being dropped, or 2) cracks, dents or other defects in the case, bracket or connector are present.
  9. Do not directly expose the airbag sensor assemblies or airbag assemblies to hot air or flames.
  10. Use an ohmmeter / voltmeter with high impedance (10 kΩ/V minimum) for troubleshooting electrical circuits.
  11. Information labels are attached to the SRS components. Follow the instructions on the labels.
  12. After work on the SRS is completed, check the SRS warning light.
2. SPIRAL CABLE
  1. The steering wheel must be fitted correctly to the steering column with the spiral cable at the neutral position, as cable disconnection and other problems may occur. Refer to the information about correct installation of the steering wheel.
  Fig 8: Aligning Spiral Cable Marks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. STEERING PAD

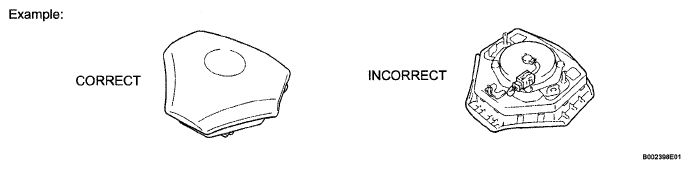

  1. Always place a removed or new steering pad surface upward as shown in the illustration. Placing the horn button with the pad surface facing down could cause a serious accident if the airbag inflates. Also, do not place anything on top of the horn button.

    Fig 9: Caution For Steering Pad
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.

    Fig 10: Caution - Never Measure Resistance Of Airbag Squib
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Grease or detergents of any kind should not be applied to the horn button.
  4. Store the horn button assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
  5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (4 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
  6. When disposing of the vehicle or the horn button assembly by itself, the airbag should be deployed using SST before disposal. Activate the airbag in a safe place away from electrical noise.
4. FRONT PASSENGER AIRBAG ASSEMBLY

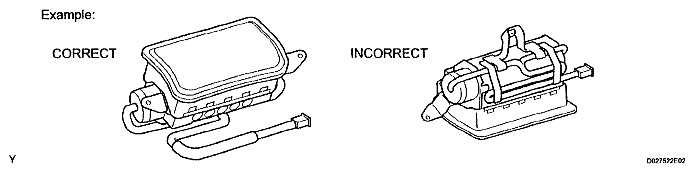

  1. Always place a removed or new front passenger airbag assembly with the pad surface facing upward as shown in the illustration. Placing the airbag assembly with the airbag inflation direction facing down could cause a serious accident if the airbag inflates.

    Fig 11: Caution For Passenger Airbag Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.

    Fig 12: Caution - Never Measure Resistance Of Airbag Squib
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Grease or detergents of any kind should not be applied to the front passenger airbag assembly.
  4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
  5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (4 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
  6. When disposing of the vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal. Activate the airbag in a safe place away from electrical noise.
5. CURTAIN SHIELD AIRBAG ASSEMBLY
  1. Always place a removed or new curtain shield airbag assembly in a clear plastic bag, and keep it in a safe place.

    Fig 13: Identifying Curtain Shield Airbag Correct Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    CAUTION: The plastic bag is not reusable.

    NOTE: Never disassemble the curtain shield airbag assembly.
  2. Never measure the resistance of the airbag squib. This may cause the airbag to inflate, which could cause serious injury.

    Fig 14: Precaution For - Never Measure Resistance Of Airbag Squib
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Grease or detergents of any kind should not be applied to the curtain shield airbag assembly.
  4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
  5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (4 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
  6. When disposing of a vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal. Activate the airbag in a safe place away from electrical noise.
6. FRONT SEAT SIDE AIRBAG ASSEMBLY
  1. Always place a removed or new front seat airbag assembly with the airbag inflation direction facing up.

    Fig 15: Identifying Front Seat Side Airbag Assembly
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Never measure the resistance of the airbag squib. This may cause the airbag the inflate, which could cause serious injury.

    Fig 16: Precaution For - Never Measure Resistance Of Airbag Squib
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Grease or detergents of any kind should not be applied to the front seat airbag assembly.
  4. Store the airbag assembly in an area where the ambient temperature is below 93°C (200°F), the humidity is not high and there is no electrical noise.
  5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (2 pins). These connectors contain shorting springs. This feature reduces the possibility of the airbag deploying due to currents entering the squib wiring.
  6. When disposing of a vehicle or the airbag assembly unit by itself, the airbag should be deployed using SST before disposal. Activate the airbag in a safe place away from electrical noise.
7. FRONT SEAT OUTER BELT ASSEMBLY WITH PRETENSIONER
  1. Never measure the resistance of the seat outer belt. This may cause the pretensioner of the seat belt to activate, which could cause serious injury.

    Fig 17: Precaution For - Never Measure Resistance Of Seat Outer Belt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Never disassemble the seat outer belt.
  3. Never install the seat outer belt on another vehicle.
  4. Store the seat outer belt in an area where the ambient temperature is below 80°C (176°F), the humidity is not high and there is no electrical noise.
  5. When using electric welding anywhere on the vehicle, disconnect the airbag ECU connectors (2 pins). These connectors contain shorting springs. This feature reduces the possibility of the pretensioner deploying due to currents entering the squib wiring.
  6. When disposing of a vehicle or the seat outer belt assembly by itself, the seat outer belt should be activated before disposal. Activate it in a safe place away from electrical noise.
  7. As the seat outer belt is hot after the pretensioner is activated, allow some time for it to cool down sufficiently before disposal. Never apply water to try to cool down the seat outer belt.
  8. Grease, detergents, oil or water should not be applied to the front seat outer belt.
8. AIRBAG SENSOR ASSEMBLY
  1. Never reuse an airbag sensor assembly that has been involved in a collision where the SRS has deployed.
  2. The connectors to the airbag sensor assembly should be connected or disconnected with the sensor placed on the floor. If the connectors are connected or disconnected while the airbag sensor assembly is not placed on the floor, the SRS may activate.
  3. Work must be started at least 90 seconds after the ignition switch is turned OFF and the cable is disconnected from the negative (-) battery terminal, even if only loosening the set bolts of the airbag sensor assembly.
9. WIRE HARNESS AND CONNECTOR
  1. The SRS wire harness is integrated with the instrument panel wire harness assembly. All the connectors in the system are a standard yellow color. If the SRS wire harness becomes disconnected or the connector becomes broken, repair or replace it.
ELECTRONIC CONTROL
1. REMOVAL AND INSTALLATION OF BATTERY TERMINAL
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  1. Before performing electronic work, disconnect the cable from the negative (-) battery terminal to prevent component and wire damage caused by accidental short circuits.
  2. When disconnecting the cable, turn the ignition switch off and the headlight dimmer switch OFF and loosen the cable nut completely. Perform these operations without twisting or prying the cable. Then disconnect the cable.
  3. Clock settings, radio settings, audio system memory, DTCs and other data are erased when the cable is disconnected from the negative (-) battery terminal. Write down any necessary data before disconnecting the cable.
2. HANDLING OF ELECTRONIC PARTS
  1. Do not open the cover or case of the ECU unless absolutely necessary. If the IC terminals are touched, the IC may be rendered inoperative by static electricity.
  2. Do not pull the wires when disconnecting electronic connectors. Pull the connector.
  3. Be careful not to drop electronic components, such as sensors or relays. If they are dropped on a hard surface, they should be replaced.
  4. When cleaning the engine with steam, protect the electronic components, air filter and emission-related components from water.

    Fig 19: Precaution - Handling Of Electronic Parts
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Never use an impact wrench to remove or install temperature switches or temperature sensors.
  6. When measuring the resistance of a wire connector, insert the tester probe carefully to prevent terminals from bending.
REMOVAL AND INSTALLATION OF FUEL CONTROL PARTS
1. PLACE FOR REMOVING AND INSTALLING FUEL SYSTEM PARTS
  1. Work in a location with good air ventilation that does not have welders, grinders, drills, electric motors, stoves, or any other ignition sources.
  2. Never work in a pit or near a pit as vaporized fuel will collect in those places.
2. REMOVING AND INSTALLING FUEL SYSTEM PARTS
  1. Prepare a fire extinguisher before starting the operation.
  2. To prevent static electricity, install a ground wire to the fuel changer, vehicle and fuel tank, and do not spray the surrounding area with water. Be careful when performing work in this area, as the work surface will become slippery. Do not clean up gasoline spills with water, as this may cause the gasoline to spread, and possibly create a fire hazard.
  3. Avoid using electric motors, working lights and other electric equipment that can cause sparks or high temperatures.
  4. Avoid using iron hammers as they may create sparks.
  5. Dispose of fuel-contaminated cloth separately using a fire resistant container.
REMOVAL AND INSTALLATION OF ENGINE INTAKE PARTS
1. If any metal particles enter inlet system parts, they may damage the engine.
2. When removing and installing inlet system parts, cover the openings of the removed parts and engine openings. Use gummed tape or other suitable materials.
3. When installing inlet system parts, check that no metal particles have entered the engine or the installed parts.

  Fig 20: Identifying Engine Intake Parts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HANDLING OF HOSE CLAMPS
1. Before removing the hose, check the clamp position so that it can be reinstalled in the same position.
2. Replace any deformed or dented clamps with new ones.
3. When reusing a hose, attach the clamp on the clamp track portion of the hose.
4. For a spring type clamp, you may want to spread the tabs slightly after installation by pushing in the direction of the arrows as shown in the illustration.

  Fig 21: Identifying Hose Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FOR VEHICLES EQUIPPED WITH MOBILE COMMUNICATION SYSTEMS
1. Install the antenna as far away from the ECU and sensors of the vehicle electronic systems as possible.
2. Install an antenna feeder at least 20 cm (7.87 in.) away from the ECU and sensors of the vehicle electronic systems. For details about ECU and sensor locations, refer to the information of the applicable components.

  Fig 22: Identifying Mobile Communication Systems
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Keep the antenna and feeder separate from other wiring as much as possible. This will prevent signals from the communication equipment from affecting vehicle equipment and vice versa.
4. Check that the antenna and feeder are correctly adjusted.
5. Do not install a high-powered mobile communication system.
FOR VEHICLES EQUIPPED WITH TRACTION CONTROL (TRAC) SYSTEM
When testing with a 2-wheel drum tester such as a speedometer tester, a combination tester of the speedometer and brake, a chassis dynamometer, or when jacking up the front wheels and driving the wheels, always turn the TRAC system OFF.
1. Confirm that the TRAC system is OFF.
  1. Ignition switch to OFF.
  2. Connect SST to terminals TS and CG of DLC3.
    NOTE: Confirm that the VSC/TRAC warning light blinks.

    Fig 23: Identifying DLC3 Connector Terminals
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Begin testing.
3. Disconnect SST from DLC3.
4. Check that the VSC/TRAC warning light turns OFF.
  HINT:

  The SLIP indicator light blinks when the TRAC system is operating.

  Fig 24: Identifying VSC/TRAC Warning Light Turns OFF
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FOR VEHICLES EQUIPPED WITH VEHICLE STABILITY CONTROL (VSC) SYSTEM
1. NOTICES WHEN USING DRUM TESTER
  1. Before beginning testing, to disable the VSC, turn the ignition switch OFF and connect SST to terminals TS and CG of the DLC3.
    SST 09843-18040
    NOTE:
    Confirm that the VSC warning light blinks.

    VSC system will be reset when the engine is restarted.

    For safety, secure the vehicle with restraint chains while using a wheel dynamometer.
2. NOTICES OF RELATED OPERATIONS TO VSC
  1. Do not carry out unnecessary installation and removal as it might affect the adjustment of VSC related parts.
  2. Be sure to follow the instructions for work preparation and final confirmation of proper operation of the VSC system.
WHEN SERVICING FULL-TIME 4WD VEHICLES
The Full-time 4WD FJ CRUISER is equipped with a mechanical lock type center differential system. During tests using a brake tester or chassis dynamometer, such as braking force tests or speedometer tests, if only the front or rear wheels are to be rotated, it is necessary to set the position of the center differential to FREE or LOCK depending on the type of test being performed.

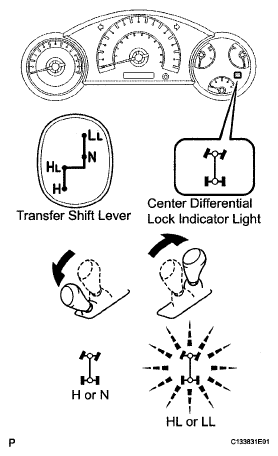

Fig 25: Setting Position Of Center Differential To FREE Or LOCK (When Servicing Full-Time 4WD Vehicles)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WHEN TESTING BRAKES, SPEEDOMETER, ETC.
1. When carrying out any kind of servicing or testing on a Full-time 4WD in which the front or rear wheels are to be rotated (braking test, speedometer test), be sure to observe the precautions given below. Incorrect preparations or test procedures may cause danger as well as unsuccessful test results. Before starting any such servicing or test, be sure to check the following items:
  - Center differential mode position (FREE or LOCK)

    Fig 26: Setting Position Of Center Differential To FREE Or LOCK (When Servicing Full-Time 4WD Vehicles)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Vehicle Stability Control (VSC) system:
    If the vehicle is equipped with the system, the slip indicator light, the VSC / TRAC indicator light and the VSC OFF indicator light come on with the ignition switch turned to ON They will go off after about a few seconds.
  - Whether wheels should be touching ground or jacked up
  - Transmission gear position (N position)
  - Transfer gear position (H or L position)
  - Maximum testing vehicle speed

    Fig 27: Identifying VSC/TRAC Warning Light Turns OFF
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Maximum testing time
2. Using Braking Tester:
  Measure by low-speed type (Vehicle Speed: Below 0.5 km/h or 0.3 mph) brake tester and observe the following instructions before performing the test.
  1. Position the wheels to be tested (front or rear) on the tester.
  2. Put the center differential in the FREE position.
  3. If the vehicle is equipped with a Vehicle Stability Control (VSC) system, prohibit the system from activating (see previous step).
  4. Shift the transmission shift lever to the "N" position.
    HINT:

    Do not forget to change the Vehicle Stability Control (VSC) & Traction Control (TRAC) system to an operational condition after the test. Check that the VSC warning indicator light goes off when restarting the engine.
3. Using Speedometer Tester:
  Observe the following instructions and then test with the rear wheels.
  1. Position the rear wheels on the tester roller.
  2. Position the front wheels on the free roller or jack them up.
  3. Put the center differential in the FREE position.
  4. Deactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system.
  5. Ensure that the vehicle does not move using chains.
    HINT:
    - Sudden shifting, braking, acceleration or deceleration is not allowed.
    - Do not forget to change the Vehicle Stability Control (VSC) & Traction Control (TRAC) system to an operational condition after the test. Check that the VSC warning indicator light goes off when restarting the engine.
4. Using Chassis Dynamometer:
  Observe the following instructions and then measure with the rear wheels.
  1. Remove the front propeller shaft.
  2. Put the center differential in the LOCK position.
  3. Deactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system.
  4. Ensure that the vehicle is securely fixed in place.
    HINT:
    - Sudden shifting, braking, acceleration or deceleration is not allowed.
    - Do not forget to change the Vehicle Stability Control (VSC) & Traction Control (TRAC) system to an operational condition after the test. Check that the VSC warning indicator light goes off when restarting the engine.
5. On-Vehicle Wheel Balancing:
  When doing on-vehicle wheel balancing on a full-time 4WD vehicle, to prevent each wheel from being rotated at a different speed and in different directions (which could damage the center differential), always be sure to observe the following precautions.

  Fig 31: Identifying On-Vehicle Wheel Balancing:
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. All 4 wheels should be jacked up, lifted off of the ground completely.
  2. Put the center differential in the LOCK position.
  3. Deactivate the Vehicle Stability Control (VSC) & Traction Control (TRAC) system.
  4. The parking brake lever should be fully released.
  5. None of the brakes should be applied.
  6. The wheels should be driven on the wheel balancer with the engine running.
  7. Carry out the wheel balancing with the transmission in the D position.
    HINT:
    - When doing the wheel balancing, pay attention to the other wheels rotating at the same time.
    - Sudden acceleration, deceleration or braking is not allowed.
    - Do not forget to change the Vehicle Stability Control (VSC) & Traction Control (TRAC) system to an operational condition after the test. Check that the VSC warning indicator light goes off when restarting the engine.

WHEN TOWING FULL-TIME 4WD VEHICLES

Use one of the methods shown below to tow the vehicle.

If the vehicle has trouble in the chassis and drive train, use method 1 (flat bed truck).

TOWING METHOD REFERENCE

Towing Method	Parking Brake Condition	Transmission Shift Lever Position
1. Flat Bed Truck Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Applied	Any Position
2. Wheel Lift Type Truck From Front Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Applied
From Rear Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002	Applied

NOTE: Do not use any towing method other than those shown above.

For example, the towing methods shown below are dangerous or may damage the vehicle, so do not use them.

TOWING METHOD REFERENCE

Never tow the vehicle using a method where the lifted-up wheel cannot rotate.
If this towing method is used, either from the front or rear:
1. There is a danger of the drive train heating up and causing breakdown, or of the wheels flying off the dolly.
2. In addition, if the vehicle is equipped with a Vehicle Stability Control (VSC) & Traction Control (TRAC) system, the system will apply the rotating wheels brake unless the engine isn't shut off.

Do not use the sling type method, either from the front or rear, as this method causes damage to the body.

FOR VEHICLES EQUIPPED WITH CATALYTIC CONVERTER CAUTION:
CAUTION: If a large amount of unburned gasoline or gasoline vapors flow into the converter, it may cause overheating and create a fire hazard. To prevent this, observe the following precautions.
1. Use only unleaded gasoline.
2. Avoid idling the engine for more than 20 minutes.
3. Avoid performing unnecessary spark jump tests.
  1. Perform a spark jump test only when absolutely necessary. Perform this test as rapidly as possible.
  2. While testing, never race the engine.
4. Avoid a prolonged engine compression measurement. Engine compression measurements must be performed as rapidly as possible.
5. Do not run the engine when the fuel tank is nearly empty. This may cause the engine to misfire and create an extra load on the converter.
