Rear Speed Sensor: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

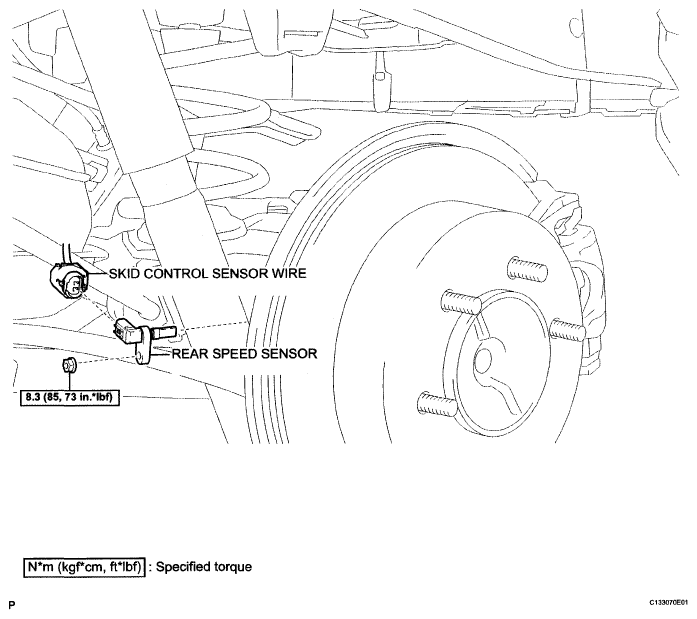

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
G05112383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
