Camshaft Timing Oil Control Valve Assembly: Components

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

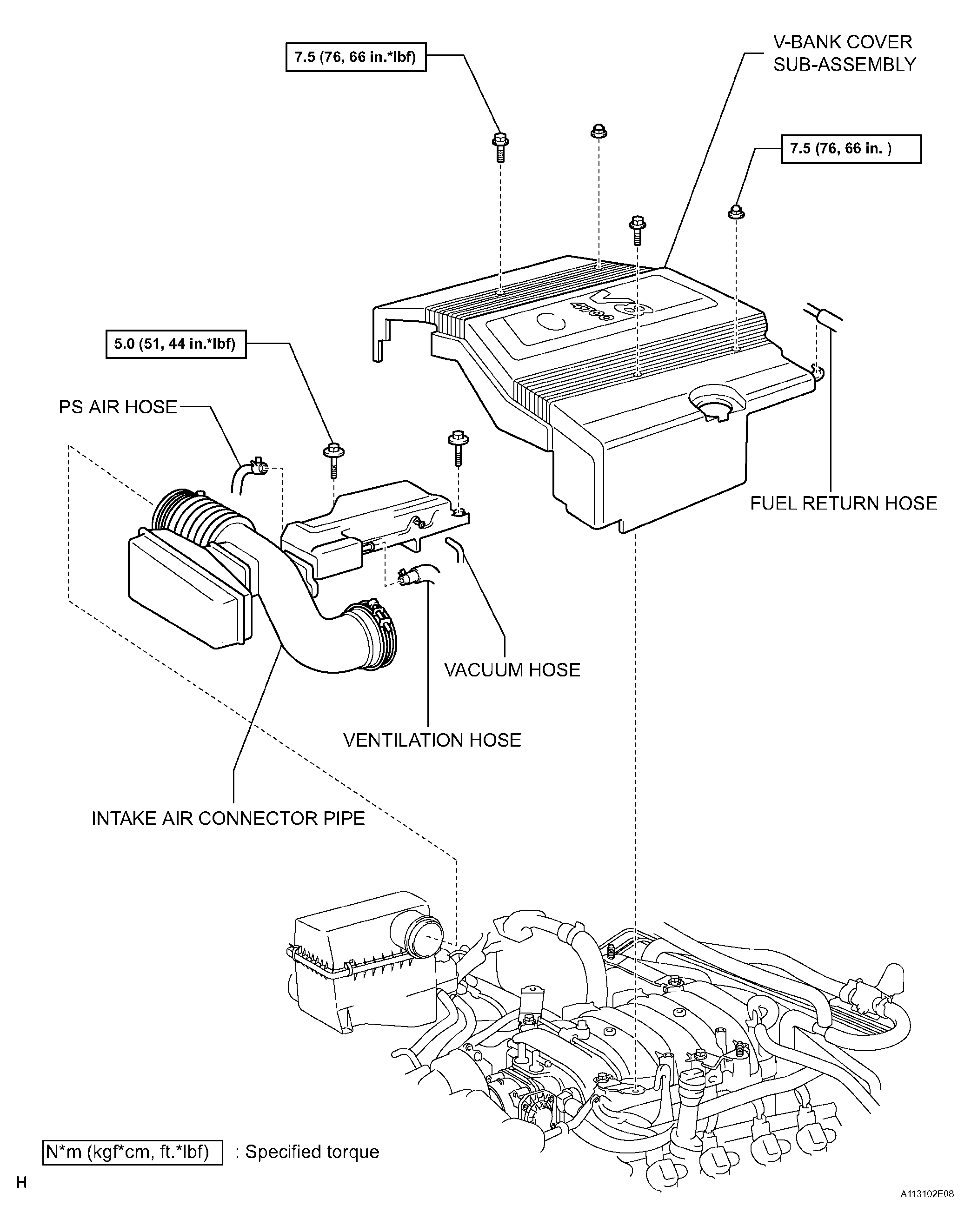

Fig 1: Identifying Camshaft Timing Oil Control Valve Assembly Components & Replacements (1 Of 2)

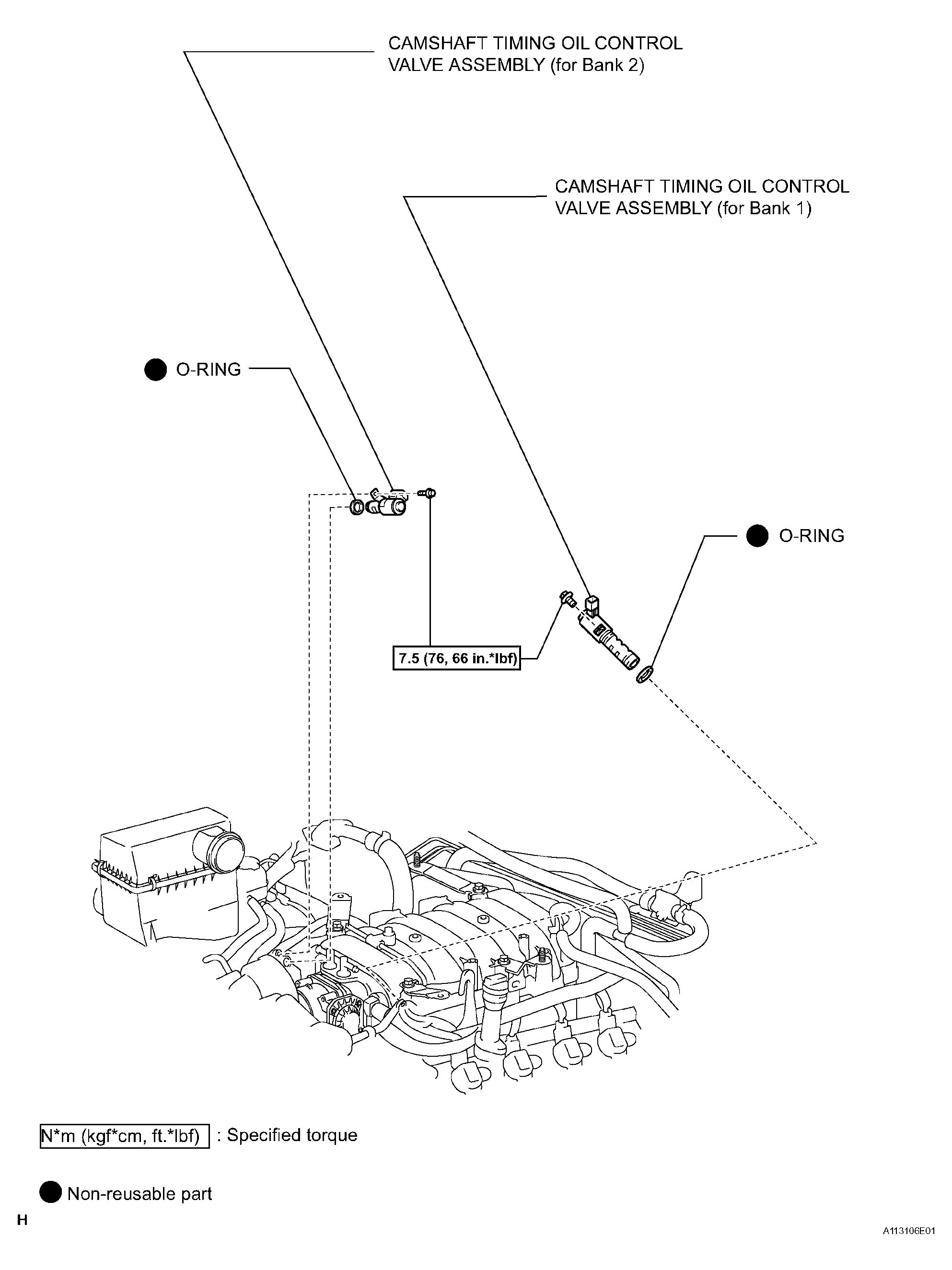

Fig 2: Identifying Camshaft Timing Oil Control Valve Assembly Components & Replacements (2 Of 2)
