Section 931 (Engine Control System - System And Component Testing): ECM: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ECM ASSEMBLY
1. Install the ECM with the 3 screws.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
2. Connect the 5 ECM connectors.
  NOTE: Be sure to securely connect the connectors.

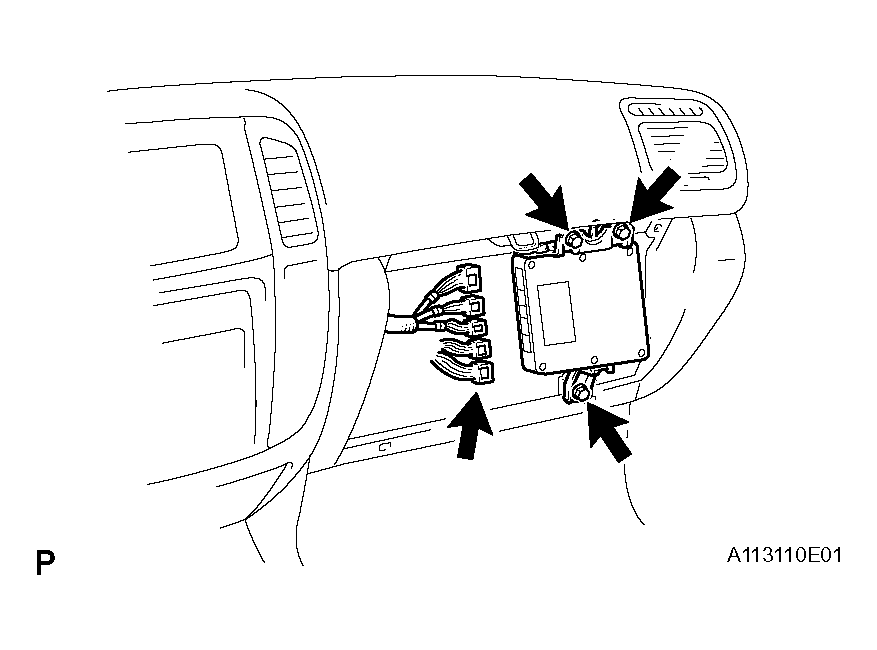

  Fig 1: Installing ECM Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 FINISH PANEL LOWER
1. Install the No. 2 finish panel lower with the 3 screws.

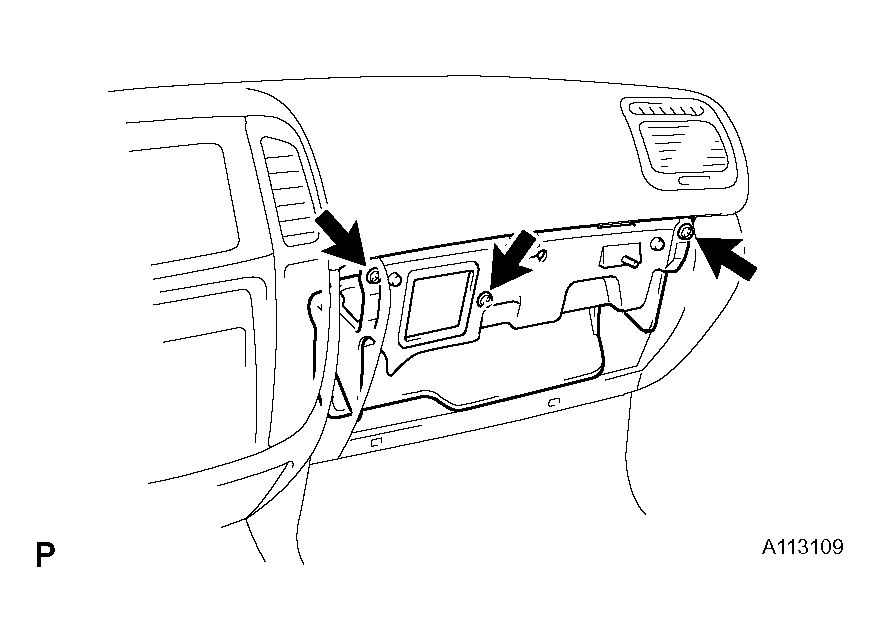

  Fig 2: Installing No. 2 Finish Panel Lower
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GLOVE BOX COMPARTMENT DOOR
1. Install the glove compartment door with the 2 screws.

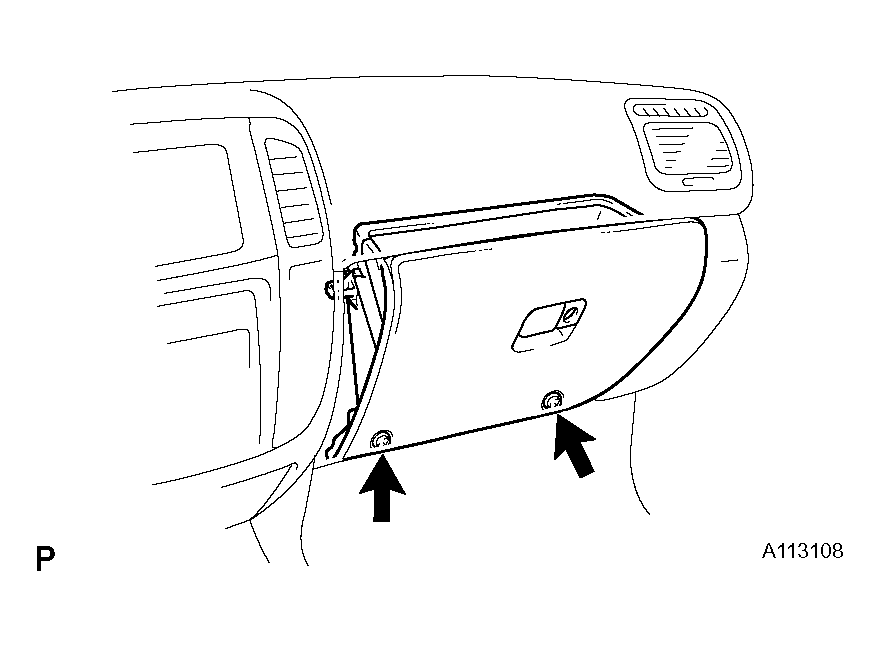

Fig 3: Installing Glove Box Compartment Door
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
Perform initialization (see INITIALIZATION ).

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
