Throttle Body: Installation

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL THROTTLE BODY
1. Install a new gasket and the throttle body with the 3 bolts and nut.
  Torque: 14 N*m (142 kgf*cm, 10 ft.*lbf)

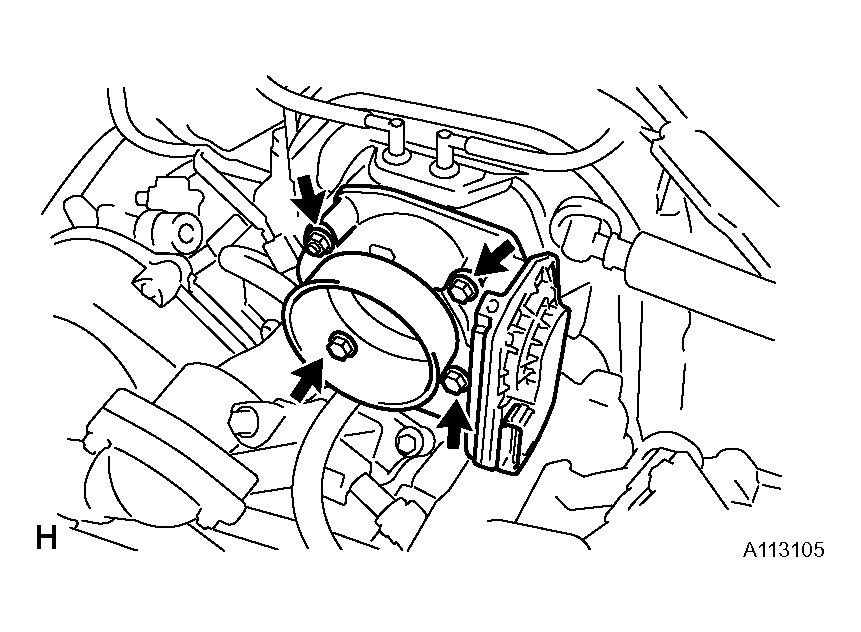

  Fig 1: Installing Throttle Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 water by-pass hoses.

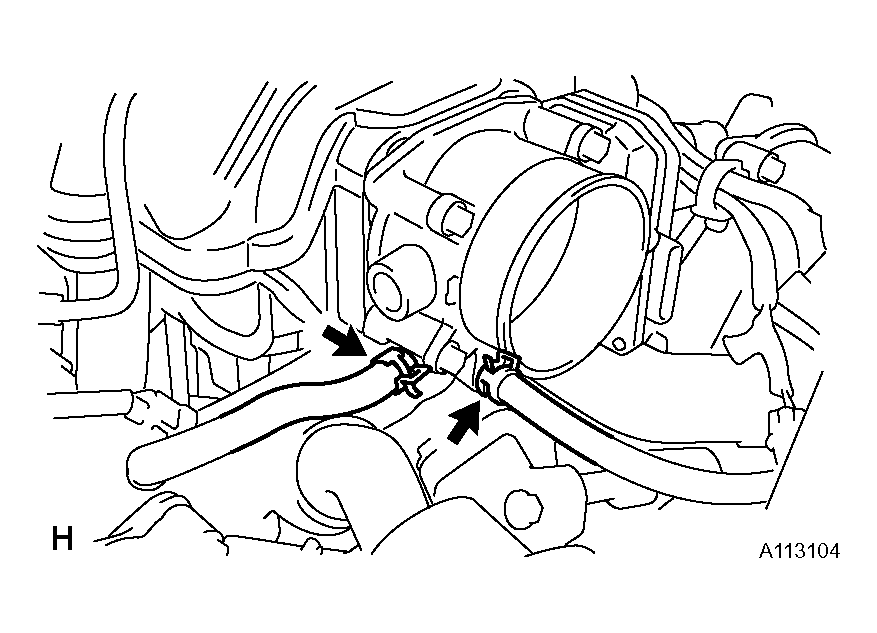

  Fig 2: Connecting Water By-Pass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the throttle position sensor and control connector.
INSTALL INTAKE AIR CONNECTOR PIPE (See INSPECTION PROCEDURE )
INSTALL V-BANK COVER SUB-ASSEMBLY (See INSPECTION PROCEDURE )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKS
1. Check for engine coolant leaks (see ON-VEHICLE INSPECTION ).
